Demystifying Cat 6 Specifications: A Comprehensive Guide

data transfer, data transmission, pair design, twisted pair

Understanding Cat 6 Specifications: Everything You Need to Know

The Cat 6 cable has become the standard for high-speed connectivity in modern networks. Its performance and specifications make it the go-to choice for data transmission, providing fast and reliable connections. With its twisted pair design, Cat 6 cables are capable of handling higher bandwidth and faster data rates than their predecessors.

One of the key specifications of Cat 6 cables is their speed capability. Cat 6 cables can support transmission speeds of up to 10 gigabits per second (Gbps), making them ideal for demanding applications and high-performance networks. This increased speed allows for quicker data transfers and seamless streaming of multimedia content.

The installation of Cat 6 cables is straightforward and similar to other Ethernet cables. They use RJ-45 connectors, which are compatible with standard Ethernet ports. The twisted pair design of Cat 6 cables provides excellent signal quality and reduces interference from electromagnetic sources. This ensures reliable connectivity and minimizes the chance of data loss or signal degradation.

Another important feature of Cat 6 cables is their shielding. Unlike Cat 5 cables, Cat 6 cables have an additional layer of shielding to protect the signal from external interference. This shielding helps maintain the quality of the signal and allows for better performance in environments with high levels of electromagnetic interference.

In conclusion, understanding the specifications of Cat 6 cables is crucial for anyone looking to set up a high-performance network. The speed, connectivity, and data transmission capabilities of Cat 6 cables make them the ideal choice for demanding applications and environments. With their compatibility, quality, and shielding, Cat 6 cables ensure fast and reliable connections for all your networking needs.

What is Cat 6 Cable?

Cat 6 cable, also known as Category 6 cable, is a type of twisted pair Ethernet cable that is used for network connectivity. It is a standardized cabling solution that is designed to provide high-quality signal transmission and performance.

Cat 6 cable is built according to specific standards that define its characteristics and capabilities. It features tighter twisting of the wire pairs compared to its predecessor, Cat 5e, which helps reduce signal interference and crosstalk. This improved design allows for better transmission of data at higher speeds and over longer distances.

One key feature of Cat 6 cable is its bandwidth capacity. It can support speeds up to 10 Gigabits per second (10GBASE-T) over distances of up to 55 meters, and up to 1 Gigabit per second (1000BASE-T) over distances of up to 100 meters. This makes it suitable for high-speed network applications that require significant data transfer.

In terms of connectivity, Cat 6 cables use an RJ-45 connector that is compatible with most network devices and equipment. The cables are typically labeled or color-coded for easy identification.

Cat 6 cables also offer better reliability due to their improved shielding. They are often constructed with multiple layers of insulation and shielding to minimize electromagnetic interference (EMI) and external signal noise, ensuring a stable and consistent network connection.

Overall, Cat 6 cables are an excellent choice for those seeking high-speed and high-quality Ethernet connectivity. They are widely used in a variety of professional settings, including offices, data centers, and any environment that requires fast and reliable network performance.

Benefits of Using Cat 6 Cables

Using Cat 6 cables in a network infrastructure offers several benefits in terms of reliability, network quality, and transmission speed.

Higher Bandwidth: Cat 6 cables have a higher bandwidth compared to previous generations, allowing for faster data transmission and better network performance.

Improved Signal Quality: Cat 6 cables are designed to minimize interference and crosstalk, ensuring a clean and reliable signal transmission. The cables are constructed with superior shielding to prevent electrical interference and maintain signal integrity.

Compatibility: Cat 6 cables are backward compatible with lower category cables, making them suitable for upgrading existing network infrastructures. They can seamlessly interconnect with Cat 5 and Cat 5e cables.

Fast Data Transmission: Cat 6 cables support high-speed Ethernet connections, making them ideal for applications that require fast and reliable data transfer. They can handle Gigabit Ethernet and even higher speeds with ease.

Twisted Pair Construction: The twisted pair design of Cat 6 cables reduces electromagnetic interference, ensuring a stable and clear signal transmission. This construction also allows for better performance over longer distances.

Improved Performance: With its enhanced specifications, Cat 6 cables provide improved performance in terms of data transmission and network speed. They offer better overall performance and reliability compared to lower category cables.

Easy Installation: Cat 6 cables are widely available and easy to install. They come with standardized connectors that are compatible with most networking devices and can be easily terminated and connected without any special tools.

Future-Proofing: When installing Cat 6 cables, you can be confident that your network infrastructure is ready to handle future advancements in technology. It provides a solid foundation for upcoming network requirements and ensures compatibility with future networking standards.

Cat 6 Specifications

The Cat 6 cable is a standard for high-speed data transmission in Ethernet networks. It is designed for installation and connectivity in local area networks (LANs). The cable utilizes twisted pair technology, with each pair of wires being twisted together to reduce signal interference and crosstalk.

One of the key specifications of Cat 6 cable is its bandwidth capability. It is capable of supporting data transmission speeds up to 10 gigabit per second (Gbps), making it suitable for high-performance networks. The cable’s performance is further enhanced by its shielding, which helps to minimize electromagnetic interference and ensure reliable transmission of data.

The Cat 6 connector, also known as an RJ45 connector, is used to terminate the ends of the cable and provide a connection to network devices such as computers, routers, and switches. It is a widely adopted industry standard and offers compatibility with various Ethernet devices.

READ MORE  Optimizing Efficiency and Productivity with Shop Floor Control

When it comes to reliability and quality, Cat 6 cable meets strict specifications and undergoes rigorous testing to ensure optimal performance. Its design and construction are aimed at reducing signal loss and maintaining signal integrity, resulting in a stable and efficient network connection.

To ensure proper installation and performance, it is important to follow Cat 6 specifications. This includes properly handling and routing the cable to avoid bending or twisting it beyond its specified limits. Additionally, the cable should be properly grounded to minimize interference and maintain reliable connectivity.

In conclusion, Cat 6 cable offers high-speed and reliable connectivity for Ethernet networks. Its specifications, including its bandwidth capability, shielding, and compatibility, make it a suitable choice for demanding network environments. By adhering to Cat 6 specifications during installation and maintenance, users can ensure optimal performance and longevity of their network infrastructure.

Bandwidth and Transmission Speed

Bandwidth and transmission speed are crucial factors when it comes to selecting a cable for your network. Cat 6 cables offer high-performance capabilities in terms of both bandwidth and data transmission speed. With a bandwidth capacity of up to 250 MHz, a Cat 6 cable can handle higher frequencies, resulting in faster data transfer rates.

The twisted pair design of Cat 6 cables helps to ensure reliable connectivity and reduces crosstalk, allowing for high-speed transmission without interference. The tightly twisted pairs also provide improved signal quality and lower signal loss compared to previous cable standards.

Cat 6 cables are designed to be backwards compatible with previous Ethernet standards, such as Cat 5e, while offering improved performance. This compatibility allows for easy integration into existing network infrastructures without the need for extensive upgrades.

When it comes to installation, Cat 6 cables are relatively easy to work with. They typically come with color-coded wiring schemes, making it simple to identify and match the correct wires to the corresponding connectors. The connectors themselves are typically RJ-45, which is the standard connector for Ethernet networks.

It’s worth noting that not all Cat 6 cables are created equal. Some Cat 6 cables come with additional shielding, known as shielded twisted pair (STP) or foil shielded twisted pair (FTP), which provides extra protection against electromagnetic interference. This shielding can further enhance the transmission speed and reliability of the cable.

In summary, Cat 6 cables are an excellent choice for those looking for high-speed and reliable network connectivity. With their high bandwidth capacity, improved transmission speed, and compatibility with previous standards, Cat 6 cables are a solid investment for any network infrastructure.

Cable Length and Transmission Distance

The cable length and transmission distance are important factors to consider when working with Cat 6 cables. Cat 6 cables are designed to provide high-speed performance and are capable of supporting data transmission up to 10 Gbps. However, the length and distance of the cable can affect its overall performance and signal quality.

According to the Cat 6 specifications, the maximum cable length for Cat 6 cables is 55 meters. This length includes both the horizontal cable, which connects the network devices to the patch panel, and the patch cords, which connect the patch panel to the network devices. It is important to adhere to this maximum length to ensure optimal performance and reliability.

When dealing with longer cable runs, it is recommended to use signal boosters or switches to extend the transmission distance. These devices can help amplify and regenerate the signal, allowing for longer cable lengths without sacrificing performance.

It’s also worth noting that the quality and compatibility of the connectors used with Cat 6 cables can impact transmission distance. It is important to use high-quality, shielded connectors that are designed for Cat 6 cables. This helps to minimize signal loss and maintain the integrity of the data being transmitted.

Additionally, proper cable installation plays a crucial role in maintaining signal quality and transmission distance. Cat 6 cables should be installed away from sources of interference, such as power lines, fluorescent lights, and other electrical equipment. They should also be properly grounded to minimize the risk of electrical noise and maintain a stable network connection.

In summary, cable length and transmission distance are important considerations when working with Cat 6 cables. Adhering to the specified length, using high-quality connectors, and ensuring proper installation can help maintain optimal performance, reliability, and signal quality for your Ethernet network.

Cat 6 Installation Requirements

When installing Cat 6 Ethernet cable, there are several requirements that need to be met in order to ensure optimal performance and reliability.

Firstly, it is important to ensure that the cable is properly twisted. Cat 6 cables utilize a twisted pair design, where the pairs of wires within the cable are twisted together to reduce interference and improve signal transmission. This twisting is crucial to maintaining the cable’s bandwidth and connectivity.

Additionally, Cat 6 cables must meet specific specifications and standards. These standards define the quality and performance of the cable, including its maximum data transmission rate and its compatibility with other networking components.

The installation of Cat 6 cables also requires proper shielding. Shielding helps to protect the signal from external interference, such as electromagnetic interference (EMI) or radio frequency interference (RFI), which can negatively impact the network performance. The cable’s shielding ensures a reliable and high-quality connection.

Another important aspect of Cat 6 installation is the choice of connectors. The connectors used must be compatible with Cat 6 cables and should be able to maintain the high-speed signal transmission and connectivity that Cat 6 cables are designed for. Using connectors that are not specifically designed for Cat 6 cables can result in reduced performance and reliability.

In conclusion, the installation of Cat 6 cables requires attention to detail and adherence to specific requirements. Properly twisted cables, adherence to specifications and standards, shielding, and the use of compatible connectors are all crucial for ensuring optimal performance, reliability, and connectivity in a Cat 6 network.

Cat 6 vs Other Ethernet Cables

Quality: Cat 6 cables are known for their high-quality construction and materials, making them more durable and reliable compared to other ethernet cables. They are designed to meet and exceed industry standards for optimal performance.

READ MORE  Understanding Ethernet Port Aggregation: Benefits, Configuration, and Best Practices

Specifications: Cat 6 cables have specific specifications that make them suitable for high-speed data transmission. They are capable of handling speeds up to 10 gigabits per second and have a wider bandwidth compared to other ethernet cables. This allows for faster and more efficient data transfer.

Signal: Cat 6 cables are designed with superior signal quality in mind. They have tighter twists and improved insulation, reducing crosstalk and interference. This ensures a strong and stable signal transmission, resulting in a reliable network connection.

Connector: Cat 6 cables use RJ-45 connectors, which are the standard connectors for ethernet cables. These connectors are widely compatible with devices and can easily be plugged into network switches, routers, and other networking equipment.

Shielding: One of the key features of Cat 6 cables is their shielding. They are usually equipped with foil or braided shielding, which provides additional protection against external interference. This shielding helps to maintain a high level of signal integrity and reduces the risk of signal loss or degradation.

Twisted Pair: Cat 6 cables use a twisted pair design, where two conductors are twisted together to reduce electromagnetic interference. This design helps to maintain a consistent and reliable signal transmission, even in environments with high levels of electrical noise.

Installation: Installing Cat 6 cables is relatively straightforward and follows a standard procedure. They can be easily terminated using a punch-down tool, and their connectors are compatible with standard wall plates and patch panels. This makes the installation process easier and more convenient.

Compatibility: Cat 6 cables are backward compatible with previous ethernet standards, such as Cat 5e and Cat 5. This means they can be used in networks that already have these cables installed, providing an easy upgrade option for improved performance.

Reliability: Due to their higher specifications and improved shielding, Cat 6 cables offer a higher level of reliability compared to other ethernet cables. They are less prone to signal interference and degradation, ensuring a stable and uninterrupted network connectivity.

Cat 5e vs Cat 6

When it comes to network connections, the choice between Cat 5e and Cat 6 cables can have a significant impact on the speed and performance of your network. Both cables use twisted pairs of copper wires to transmit data, but Cat 6 offers several advantages over Cat 5e.

  • Speed and Bandwidth: Cat 6 cables are designed to support higher speeds and greater bandwidth compared to Cat 5e. This means that Cat 6 cables can handle faster data transmission, allowing for a more efficient and reliable network connection.
  • Compatibility: Cat 6 cables are backward compatible with Cat 5e, which means they can be used with existing Cat 5e installations. However, to fully utilize the capabilities of Cat 6 cables, it is recommended to have a Cat 6 infrastructure in place.
  • Quality and Reliability: Cat 6 cables are built to stricter specifications and standards compared to Cat 5e. This results in higher quality and better performance, making Cat 6 cables more reliable for long-term use.
  • Signal Transmission and Connectivity: Cat 6 cables have better shielding and insulation compared to Cat 5e. This helps to reduce signal interference and noise, resulting in a more stable and consistent network connection. Additionally, Cat 6 cables have improved connector designs, ensuring a secure and seamless connection.
  • Data Transmission: With its higher performance capabilities, Cat 6 cables can support higher data transfer rates compared to Cat 5e. This is especially beneficial for applications that require large file transfers or real-time data streaming.

In conclusion, while Cat 5e cables are sufficient for most basic Ethernet installations, Cat 6 cables offer increased speed, performance, and reliability. If you are planning to upgrade or install a new network infrastructure, opting for Cat 6 cables can future-proof your network and provide a better overall connectivity experience.

Cat 6 vs Cat 6a

The main difference between Cat 6 and Cat 6a is their performance and specifications. Cat 6 is a standard network cable that provides high-speed connectivity and bandwidth for Ethernet transmission. Cat 6a, on the other hand, is an enhanced version of Cat 6 with improved quality and performance.

One of the key differences between Cat 6 and Cat 6a is the maximum data transmission speed. Cat 6 cables can support data speeds up to 1 gigabit per second, while Cat 6a cables can support data speeds up to 10 gigabits per second. This makes Cat 6a cables more suitable for high-performance networks that require faster data transmission.

Another difference is the cable’s shielding. Cat 6 cables have a twisted pair design, which helps reduce crosstalk and interference. Cat 6a cables, on the other hand, often come with additional shielding, such as foil or braided shielding, to further improve signal quality and reliability.

In terms of installation and compatibility, Cat 6 and Cat 6a cables are generally similar. They both use the same RJ-45 connector and can be used with most network devices. However, Cat 6a cables are slightly thicker and less flexible due to the additional shielding, which may affect their installation in tight spaces.

In summary, Cat 6a offers better performance and higher bandwidth than Cat 6, making it ideal for high-speed networks that require reliable and fast data transmission. While Cat 6 is still a reliable choice for most standard network installations, Cat 6a is the recommended option for future-proofing your network and ensuring compatibility with emerging technologies.

Applications and Uses of Cat 6 Cables

The transmission of data is a critical requirement for various applications and industries, making the use of Cat 6 cables essential. Cat 6 cables, known for their high transmission performance, are widely used in networking applications that require reliable and high-speed connectivity.

These cables are equipped with connectors that ensure a secure and stable connection, allowing for seamless data transfer between devices. The shielding provided by Cat 6 cables helps reduce electromagnetic interference, ensuring the signal quality and reliability.

Due to its compatibility with various devices and standards, Cat 6 cables can be used in a wide range of applications, ranging from home networks to corporate environments. They are commonly used in Ethernet installations to provide high-speed and efficient data transmission.

READ MORE  Understanding Computer SD Card Slots: A Comprehensive Guide

One of the main advantages of Cat 6 cables is their ability to support higher bandwidth compared to previous generations of cables. This makes them suitable for demanding applications such as video streaming, online gaming, and large-scale data transfers.

Furthermore, the performance of Cat 6 cables is enhanced by their twisted pair design, which reduces crosstalk and improves signal integrity. This allows for reliable and consistent network connectivity, even in environments with high levels of electrical noise.

  • Applications and uses of Cat 6 cables include:
  • Building local area networks (LANs) in homes and offices
  • Connecting computers, servers, and networking equipment
  • Creating high-speed connections for video surveillance systems
  • Supporting Voice over IP (VoIP) telephony systems
  • Facilitating data transfers in data centers

In conclusion, Cat 6 cables are widely utilized in various applications and industries due to their high-speed transmission capabilities, compatibility with different devices and standards, and excellent performance in terms of signal reliability and bandwidth. Whether it’s for home networking or enterprise-level installations, Cat 6 cables are the go-to choice for ensuring efficient and dependable network connectivity.

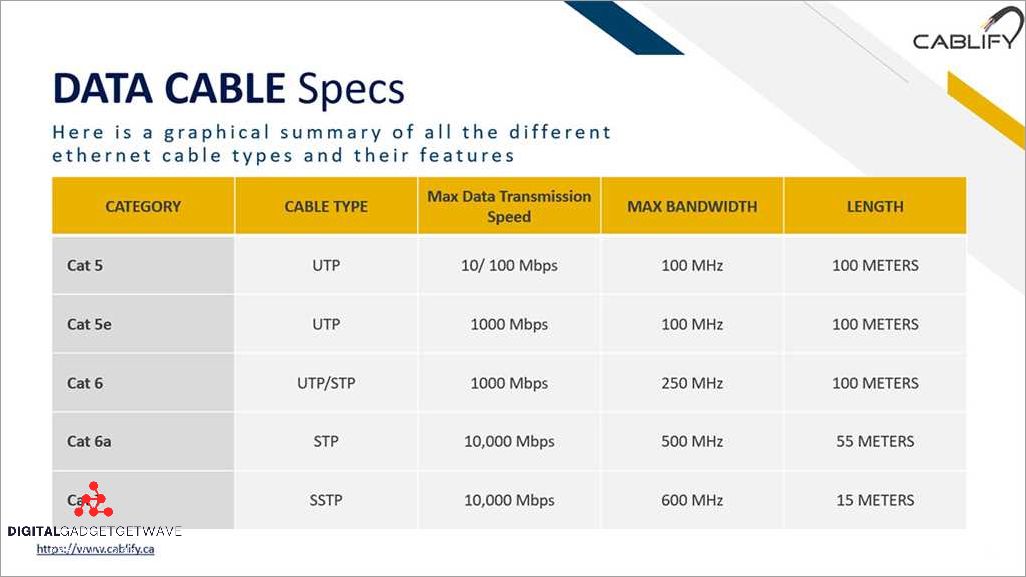

Residential Applications

Residential Applications

When it comes to quality and performance in residential applications, Cat 6 cable is a reliable choice. Its specifications ensure fast data transmission speeds and enhanced connectivity for various devices in your home network.

The Cat 6 connector, with its twisted pair design and shielding, provides optimal signal quality and prevents interference from external sources. This ensures that your Ethernet network maintains its speed and reliability, even in a residential setting.

The bandwidth offered by Cat 6 cable is suitable for high-speed internet connections, video streaming, online gaming, and other data-intensive tasks commonly performed in residential environments. This enhanced performance makes it ideal for households with multiple users and a need for simultaneous data transmission.

Installation of Cat 6 cable in residential applications is relatively straightforward. Its compatibility with existing Ethernet infrastructure allows for easy upgrades and integration into existing networks. The connector’s termination process is user-friendly, making it accessible even for non-professionals.

Whether you are setting up a smart home system or connecting various devices such as laptops, gaming consoles, and smart TVs, Cat 6 cable provides the required speed and reliability. Its specifications ensure high-quality transmission of data signals, resulting in a seamless and efficient network in your residential environment.

Commercial Applications

Cat 6 specifications make it an ideal choice for various commercial applications that require high-speed and reliable network connectivity. The Cat 6 cable is designed to handle higher data transmission speeds and better signal quality than its predecessors.

One of the main advantages of using Cat 6 cable in commercial applications is its backward compatibility with the older Cat 5 and Cat 5e standards. This ensures that existing infrastructure can be easily upgraded without the need for complete rewiring.

The twisted pair design and enhanced shielding of Cat 6 cable help in minimizing crosstalk and external interference, resulting in improved connectivity and reduced data errors. This makes it suitable for applications where data integrity and reliable communication are critical, such as financial institutions, healthcare facilities, and government organizations.

With its higher bandwidth and speed capabilities, Cat 6 is widely used in industries that deal with large amounts of data, such as media and entertainment, data centers, and cloud computing. The increased performance of Cat 6 allows for faster data transfer rates and seamless multimedia streaming.

Cat 6 connectors are designed to provide a secure and stable connection, ensuring uninterrupted network connectivity in commercial environments. The standardized connector compatibility makes it easy to connect Cat 6 cables to various networking devices without any compatibility issues.

Installation of Cat 6 cables requires attention to detail and adherence to quality standards. Proper cable management and careful handling of connectors are essential for achieving optimal performance. Working with certified installers can ensure that the installation meets the required specifications and provides reliable connectivity.

In conclusion, Cat 6 cables are well-suited for a wide range of commercial applications due to their high-speed performance, reliable transmission, and compatibility with existing infrastructure. By investing in Cat 6 cables, businesses can ensure efficient data transfer, improved network reliability, and enhanced connectivity for their operations.

FAQ about topic “Demystifying Cat 6 Specifications: A Comprehensive Guide”

What is the difference between Cat 5 and Cat 6 cables?

Cat 5 and Cat 6 cables are both Ethernet cables, but Cat 6 cables have a higher bandwidth and can support higher data transfer speeds compared to Cat 5 cables. Cat 6 cables also have stricter specifications for crosstalk and system performance, which result in better signal quality and less interference.

Can I use Cat 6 cables with my existing network equipment?

Yes, you can use Cat 6 cables with your existing network equipment. Cat 6 cables are backward compatible with Cat 5 and Cat 5e cables, so you can easily replace your old cables with Cat 6 cables without any issues. However, to fully utilize the capabilities of Cat 6 cables, it is recommended to use them with Cat 6 compatible devices and network infrastructure.

What is the maximum length of a Cat 6 cable?

The maximum length of a Cat 6 cable is approximately 55 meters (180 feet) when used for 10/100/1000BASE-T Ethernet networks. However, for 10GBASE-T Ethernet networks, the maximum length is reduced to 37 meters (120 feet) due to higher data transfer rates and increased signal degradation over longer distances.

Are Cat 6 cables more expensive than Cat 5 cables?

Yes, Cat 6 cables are generally more expensive than Cat 5 cables. This is due to the stricter specifications and higher performance requirements of Cat 6 cables, which require better quality materials and manufacturing processes. However, the price difference between Cat 5 and Cat 6 cables has been decreasing over the years, making Cat 6 cables a more affordable option for many applications.

Can I use Cat 6 cables for video streaming and online gaming?

Yes, Cat 6 cables are suitable for video streaming and online gaming. The higher bandwidth and better signal quality of Cat 6 cables allow for faster and more reliable data transmission, which is essential for high-definition video streaming and online gaming that require low latency and high data transfer rates. Using Cat 6 cables can help reduce buffering time and lag, providing a smoother and more enjoyable experience.
