Everything You Need to Know About Fiber Optic Adapters – A Comprehensive Guide

Fiber optic adapters are an essential component in modern network connectivity. They play a crucial role in linking optical fibers together, allowing for seamless transmission of data across vast distances. Whether you are setting up a new network or upgrading your existing one, understanding the different types and uses of fiber optic adapters is essential.

The most common type of fiber optic adapter is the SC (Subscriber Connector) adapter, which is widely used in network installations. It features a rectangular shape and utilizes a push-pull mechanism for easy installation. Another popular type is the LC (Lucent Connector) adapter, which is smaller in size and offers higher density connectivity.

In addition to these commonly used adapters, there are various other types available, each designed for specific applications. For instance, the ST (Straight Tip) adapter is commonly used in patch panels and wall outlets, while the FC (Ferrule Connector) adapter is preferred in high-precision applications that require tight connections.

Fiber optic adapters can also be categorized based on the type of fiber they support. Multimode and single-mode adapters are the two primary options. Multimode adapters are designed to connect multimode fibers, which are typically used for short-range communications. Single-mode adapters, on the other hand, are used for long-range communications and require single-mode fibers. It is crucial to select the appropriate adapter to ensure optimal performance and compatibility.

Overall, fiber optic adapters are essential for achieving reliable connectivity in network installations. Understanding the different types of adapters, their uses, and compatibility with different fiber types is crucial for ensuring seamless data transmission. So, whether you are setting up a simple patch cord or a complex network infrastructure, having a comprehensive understanding of fiber optic adapters will enable you to make informed decisions and achieve optimal connectivity.

What Are Fiber Optic Adapters?

A fiber optic adapter is a small device that is used to connect two fiber optic cables together. It provides a means of coupling and aligning the two cable ends to ensure a reliable and lossless connection. The adapter typically consists of a housing, a connector, and a sleeve that holds the connector in place.

The connector is the part of the adapter that interfaces with the fiber optic cables. It can be either male or female, depending on the type of connector used on the cables. Common types of fiber optic connectors include SC, LC, ST, and FC.

The sleeve, also known as the coupling mechanism, is designed to hold the connectors in perfect alignment. It ensures that the optical signals transmitted through the cables are properly aligned and can pass through without any loss or interference. The sleeve can be made of different materials, such as ceramic or metal.

Fiber optic adapters are used in various applications where fiber optic cables are used, such as telecommunications, data centers, and networking. They are commonly used to connect different types of cables, such as single-mode and multimode, or to connect fiber optic cables to other networking devices, such as switches, routers, and patch panels.

Why Are Fiber Optic Adapters Important?

Fiber optic adapters play a crucial role in ensuring the smooth operation of fiber optic networks. They provide the necessary connectivity and compatibility between different components of the network, such as the transmitter and receiver modules, optical cables, and patch panels.

One of the main functions of fiber optic adapters is to enable the easy connection and disconnection of fiber optic cables. They act as a bridge between two cables, allowing them to be connected and secured together. The adapter ensures a precise alignment between the connector plugs, making sure that the optical signal can be transmitted accurately without any loss or interference.

Fiber optic adapters come in various types and configurations to accommodate different types of connectors, such as SC, LC, ST, and FC. They also support different modes of fiber optic cables, including both multimode and single-mode fibers.

Another important use of fiber optic adapters is in fiber optic transceivers. Transceivers, also known as SFP (Small Form-factor Pluggable) modules, combine the functions of a transmitter and a receiver in a compact package. These modules are often used in networking equipment to convert electrical signals into optical signals for transmission over fiber optic cables, and vice versa. Fiber optic adapters play a critical role in enabling the proper connection of these transceivers to the network.

In addition to connecting cables and transceivers, fiber optic adapters are also used in splicing and testing fiber optic cables. They provide a secure and stable connection while performing these operations, ensuring that the signals are transmitted efficiently and accurately.

In summary, fiber optic adapters are important components in fiber optic networks. They provide the necessary connectivity and compatibility for various components, such as cables, transceivers, and patch panels. They enable easy connection and disconnection of cables, ensure precise alignment of connectors, and support various types of fibers. Without fiber optic adapters, it would be challenging to establish and maintain a reliable optical network.

Types of Fiber Optic Adapters

Multimode Fiber Optic Adapters:

Multimode fiber optic adapters are designed to connect multimode fibers, which have a larger core diameter. They are commonly used in short distance transmission applications, such as local area networks (LANs). The standard adapter is a simplex adapter with a single plug, but duplex adapters with two plugs are also available for duplex connectivity.

Single-mode Fiber Optic Adapters:

Single-mode fiber optic adapters are used to connect single-mode fibers, which have a smaller core diameter. These adapters are suitable for long distance communications and can be seen in applications like long haul transmissions or undersea cables. Single-mode adapters also come in simplex and duplex configurations.

SFP Fiber Optic Adapters:

SFP (Small Form-factor Pluggable) fiber optic adapters are compatible with SFP transceivers. These adapters can support both single-mode and multimode fiber optic cables. They are commonly used in data communication networks and can provide high-speed connectivity.

Duplex Fiber Optic Adapters:

Duplex fiber optic adapters are used to connect two fiber optic cables together in a duplex configuration. They can be used with both single-mode and multimode fibers. The adapters usually have two simplexes, each having one plug for connectivity.

Splice Fiber Optic Adapters:

Splice fiber optic adapters are used for splicing two fiber optic connectors together. They are commonly used in installations where fiber optic cables need to be extended or repaired. These adapters provide a secure and reliable connection between the fibers.

Converter Fiber Optic Adapters:

Converter fiber optic adapters are used to convert between different types of fiber optic connectors. They are useful when you need to connect cables with different connector types, such as LC to SC or ST to MTRJ. These adapters allow for seamless connectivity between different networks or devices.

Patch Cable Fiber Optic Adapters:

Patch cable fiber optic adapters are used to connect patch cables, which are pre-terminated fiber optic cables with connectors on both ends. These adapters are commonly used in data centers or telecommunications rooms where quick and easy connectivity is required.

Network Module Fiber Optic Adapters:

Network module fiber optic adapters are used with network modules that provide additional functionality to networking devices, such as switches or routers. These adapters allow for fiber optic connectivity in network modules, enhancing the overall performance and adaptability of the network infrastructure.

SC Fiber Optic Adapters

An SC fiber optic adapter is a key component in a network communication system. It provides connectivity between different optical modules, SFP transceivers, or SFP receivers. The SC adapter is designed to be used with SC connectors, which are commonly used in fiber optic patch panels and splice trays.

The SC adapter has a duplex design, allowing for transmission and reception of optical signals simultaneously. It supports both single-mode and multimode fibers, making it versatile for various network applications. The SC adapter has an optical plug that connects to the fiber optic cable, ensuring a secure and stable connection.

The SC fiber optic adapter is often used in patch panels, where it helps to organize and manage the fiber optic cables. It allows for easy installation and removal of fiber optic patches, enabling quick connectivity changes in the network. The SC adapter is also used in optical converter modules, which convert electrical signals into optical signals for long-distance transmission over fiber optic cables.

When choosing an SC fiber optic adapter, it is important to consider the compatibility with the existing network equipment. The adapter should be compatible with the SC connectors and the fiber optic cables being used. It is also important to ensure that the adapter is suitable for the desired network speed and supports the desired connectivity options.

In summary, SC fiber optic adapters play a vital role in network connectivity. They enable the seamless transmission of optical signals, provide flexibility for connection changes, and ensure reliable performance in various network applications. Whether used in patch panels or optical converter modules, SC adapters are essential for maintaining an efficient and reliable fiber optic network.

LC Fiber Optic Adapters

Overview

Fiber optic adapters play a crucial role in ensuring seamless connectivity and efficient transmission of data in optical networks. LC fiber optic adapters are a popular choice due to their compact size and high performance. These adapters are designed to enable the connection of LC fiber optic cables, connectors, and modules, allowing for easy integration into various network applications.

LC Connector

The LC connector is a small form-factor optical connector that is widely used in both single-mode and multimode fiber optic applications. Due to its size, it is commonly used in high-density environments, such as data centers and telecommunication networks. The LC connector features a 1.25mm ferrule, which enables precise alignment and low insertion loss.

Types of LC Fiber Optic Adapters

LC fiber optic adapters are available in various configurations, including simplex, duplex, and quadplex. Simplex adapters are used for single fiber connection and feature a single connector interface on each end. Duplex adapters, on the other hand, allow for the connection of two fibers and feature two connector interfaces on each end. Quadplex adapters offer connectivity for four fibers, providing even higher density options.

Benefits of LC Fiber Optic Adapters

LC fiber optic adapters offer several advantages that make them an ideal choice for optical networks. The small form-factor of LC connectors and adapters allows for higher port density, saving valuable space in panels and modules. Additionally, LC connectors provide low insertion loss, ensuring efficient signal transmission. The push-pull design of LC connectors also makes them easy to install and remove, minimizing downtime and labor costs.

Applications

LC fiber optic adapters are widely used in a range of network applications, including data centers, telecommunication networks, local area networks (LANs), and fiber distribution frames. They are compatible with various LC connector-based devices, such as SFP transceivers, patch panels, and fiber optic converters. Whether in single-mode or multimode systems, LC fiber optic adapters provide reliable connectivity for seamless data transmission.

ST Fiber Optic Adapters

The ST fiber optic adapter is a key component in fiber optic connectivity. It allows for the connection and disconnection of fiber optic cables, providing a reliable and efficient means of transferring data. The ST adapter is commonly used in a variety of applications, including telecommunications, data centers, and industrial networks.

One of the main features of the ST adapter is its compatibility with both single-mode and multimode fiber cables. This means that it can support different types of fiber optic connections, allowing for flexible and versatile connectivity options. Whether you are using a single-mode or multimode fiber cable, the ST adapter can accommodate your needs.

The ST adapter utilizes a bayonet-style coupling mechanism, which ensures a secure and stable connection. This type of coupling mechanism is easy to use and provides a strong connection that is resistant to vibration and movement. The ST adapter also features a ceramic ferrule, which provides precise alignment of the fiber cables for optimal performance.

In addition to its coupling mechanism, the ST adapter also has a duplex configuration. This means that it can support both transmit and receive functions, allowing for bi-directional communication. The duplex configuration is particularly useful in situations where two-way data transmission is required, such as in network applications.

The ST adapter can be easily installed in a variety of devices, including patch panels, fiber optic modules, and wall plates. It can also be used in conjunction with other fiber optic components, such as connectors and splice modules, to create a complete fiber optic network. Whether you are setting up a new network or upgrading an existing one, the ST adapter is a reliable and efficient choice for your fiber optic connectivity needs.

How Fiber Optic Adapters Work

Fiber optic adapters are essential components in fiber optic networks that provide connectivity between different fiber optic cables or devices. They enable the conversion and transmission of optical signals between different types of connectors, allowing for seamless integration and communication.

The adapter consists of a panel with two openings or ports, one on each side, in which fiber optic cables with connectors can be inserted. These openings are designed to align the connectors of the cables, ensuring precise and accurate connections for optimal signal transmission.

There are different types of fiber optic adapters available, depending on the type of connector and fiber optic cable used. Duplex adapters, for example, are used to connect two fiber optic cables with duplex connectors, enabling bi-directional communication. This is commonly used in data center applications.

The fiber optic adapter functions as a bridge, providing a secure and reliable connection between two fiber optic cables. It allows light signals, transmitted through the fiber optic cable, to pass through without loss or interference, ensuring efficient and high-quality communication.

In addition to connector compatibility, the adapter also ensures compatibility between different types of fiber optic cables, such as multimode fiber and single-mode fiber. This flexibility allows for seamless integration of various optical devices, such as transmitters, receivers, and modules.

The adapter can also be used to provide optical connectivity between different devices, such as patch panels, switches, and routers. It enables the easy and quick installation and maintenance of fiber optic networks, as cables can be easily connected or disconnected from the adapter without the need for splicing or termination.

In summary, fiber optic adapters play a crucial role in ensuring seamless connectivity and efficient transmission of optical signals in fiber optic networks. They provide compatibility between different connectors and cables, allowing for easy integration and communication between various devices. The use of fiber optic adapters simplifies network installation and maintenance, making them indispensable components in modern fiber optic systems.

Connector types in Fiber Optic Adapters

In fiber optic technology, connectors play a crucial role in ensuring seamless connectivity between different components of a network. Fiber optic adapters are used to join two fiber optic patch cables or connectors, allowing for easy and efficient signal transmission. These adapters come in various connector types, each designed for specific applications and requirements.

Single-Mode Connectors

Single-mode connectors are used in long-distance transmission applications. These connectors have a smaller core size than multimode connectors, allowing for higher transmission speeds and reduced signal loss. Common single-mode connector types include the SC (Subscriber Connector), LC (Lucent Connector), and FC (Ferrule Connector).

Multimode Connectors

Multimode connectors are typically used for short-distance transmission within a local area network. These connectors have a larger core size, which allows for the transmission of multiple light modes simultaneously. Popular multimode connector types include the ST (Straight Tip) and the SC connector.

Plug Type Connectors

Plug type connectors are commonly used in fiber optic adapters for their ease of use and versatility. These connectors have a male connector on one side and can be easily plugged into a corresponding female connector. Examples of plug type connectors include the LC, SC, and ST connectors.

Receptacle Type Connectors

Receptacle type connectors, also known as socket connectors, have a female connector on both ends. These connectors are commonly used in patch panels, where multiple fiber optic cables are terminated and connected. Examples of receptacle type connectors include the SC and LC connectors.

Converter Module Connectors

Converter module connectors are used in fiber optic adapters that function as media converters. These adapters are designed to convert signals from one type of fiber optic connector to another. Common converter module connectors include SFP (Small Form-Factor Pluggable) and GBIC (Gigabit Interface Converter).

Duplex versus Simplex Connectors

Duplex connectors are used when there is a need for bidirectional communication, as they have two separate fiber paths. Simplex connectors, on the other hand, are used when communication is only required in one direction. Both duplex and simplex connectors are available in various connector types such as LC, SC, and FC.

In summary, fiber optic adapters offer a wide range of connector options to ensure seamless connectivity in fiber optic networks. Whether you need single-mode or multimode connectors, plug or receptacle type connectors, or converter module connectors, there is a suitable adapter available to meet your specific requirements.

Mechanical and Fusion Splice Fiber Optic Adapters

Fiber optic adapters play a crucial role in providing connectivity in an optical network. They are used to connect fiber optic cables, patch panels, and modules, allowing the transmission of optical signals between different devices. There are different types of fiber optic adapters available, including mechanical and fusion splice adapters.

Mechanical Splice Fiber Optic Adapters

Mechanical splice fiber optic adapters are designed to provide a temporary or semi-permanent connection between two fiber optic cables. They are easy to install and remove, making them ideal for situations where frequent changes are required. These adapters use a mechanical mechanism to align the fiber ends, ensuring low insertion and return losses.

One common type of mechanical splice adapter is the single-mode duplex (LC) adapter. It is widely used in fiber optic networks that require high-performance connectivity. This adapter allows for the connection of two single-mode fiber cables, providing a reliable and efficient transmission of optical signals.

Fusion Splice Fiber Optic Adapters

Fusion splice fiber optic adapters, also known as splice-on adapters, provide a permanent and seamless connection between two fiber optic cables. They use a fusion splicing technique to join the fiber ends together, creating a strong and uninterrupted optical path.

These adapters are commonly used in high-speed optical networks, such as SFP (Small Form Factor Pluggable) transceivers and optical converters. They are available in various configurations, including single-mode and multimode options, to accommodate different types of fiber cables.

In conclusion, both mechanical and fusion splice fiber optic adapters are essential components for ensuring reliable connectivity in optical networks. They provide a seamless connection between fiber optic cables, patch panels, and modules, enabling the efficient transmission of optical signals.

Key Considerations for Installing Fiber Optic Adapters

Duplex vs. Simplex Connectivity

When installing fiber optic adapters, one important consideration is whether you require duplex or simplex connectivity. Duplex adapters allow for transmission in both directions simultaneously, making them ideal for applications where simultaneous communication is needed, such as data centers or local area networks. On the other hand, simplex adapters only allow for transmission in one direction at a time, making them suitable for applications with one-way communication needs.

Single-Mode vs. Multimode Fiber

Another important consideration is the type of fiber optic cable being used. Single-mode fiber is designed for long-distance transmissions, offering greater bandwidth and higher speeds. Multimode fiber, on the other hand, is more suitable for shorter distances and is generally less expensive. Consider the requirements of your network when choosing between single-mode and multimode fiber for your adapters.

Transmitter and Receiver Compatibility

Before installing fiber optic adapters, it’s crucial to ensure that the transmitter and receiver components are compatible. Different optical modules, such as SFP or converter modules, require specific connector types for proper functioning. Verify that the connectors on your adapters match the connectors on your optical modules to ensure seamless connectivity and optimal performance.

Splice-On vs. Pre-Terminated Adapters

When installing fiber optic adapters, you have the option of choosing between splice-on or pre-terminated adapters. Splice-on adapters require the fusion splicing of the optical fibers, offering a permanent and reliable connection. Pre-terminated adapters, on the other hand, come with factory-terminated cables that can be easily plugged in for quick installation. Consider the ease of installation and the long-term requirements of your network when selecting between splice-on and pre-terminated adapters.

Panel Compatibility

Lastly, ensure that the fiber optic adapters you choose are compatible with the panels or enclosures in which they will be installed. Different panels may have specific requirements for adapter size, mounting options, or connector types. Consult the specifications of your panels or enclosures to ensure a proper fit and seamless integration of your fiber optic adapters into your network infrastructure.

Benefits and Applications of Fiber Optic Adapters

Enhanced Connectivity

Fiber optic adapters are crucial components in enhancing connectivity in optical fiber networks. These adapters enable the seamless connection of different fiber optic cables, ensuring a smooth and reliable transfer of data. By offering compatibility between different types of cables and connectors, fiber optic adapters allow for easy and flexible network expansions and upgrades.

Efficient Signal Transmission

Fiber optic adapters play a vital role in maintaining efficient signal transmission in fiber optic networks. These adapters provide a secure and precise connection between the optical fiber cables, minimizing signal loss and interference. With low insertion loss and high return loss, fiber optic adapters ensure reliable and high-quality transmission of data, voice, and video signals.

Diverse Applications

The versatility of fiber optic adapters makes them suitable for a wide range of applications in various industries. Whether it’s in telecommunications, data centers, or industrial settings, fiber optic adapters can be used to connect fiber optic cables, patch panels, modules, transmitters, receivers, converters, and other optical devices. They are compatible with different fiber types, including single-mode and multimode fibers, and support various connector types, such as LC, SC, ST, and SFP.

Easy Installation and Maintenance

Fiber optic adapters are designed for easy installation and maintenance. They can be quickly and securely installed into fiber optic patch panels, enclosures, or equipment. The plug-and-play design eliminates the need for complex splicing or termination processes, reducing installation time and effort. Additionally, fiber optic adapters require minimal maintenance, ensuring long-term reliability and cost-effectiveness.

Flexibility and Scalability

With the use of fiber optic adapters, fiber optic networks can easily adapt to changing requirements and expand as needed. These adapters offer the flexibility to connect different types of fiber optic cables and devices, allowing for customization and optimization of network configurations. Whether it’s adding new users, extending the network coverage, or upgrading to higher speeds, fiber optic adapters provide the scalability required for future-proofing the network.

Reliable and Secure Connections

Fiber optic adapters ensure reliable and secure connections in fiber optic networks. Their precise alignment and robust construction prevent signal loss and keep out dust, moisture, and other contaminants. This reliability and security are especially important in critical applications, such as telecommunications, where uninterrupted connectivity and data integrity are essential.

Benefits of Fiber Optic Adapters

Fiber optic adapters play a crucial role in ensuring reliable network connectivity in fiber optic systems. They provide a means to connect fiber cables, receivers, and transmitters, enabling the seamless transmission of data.

Improved Connectivity

By using fiber optic adapters, you can achieve high-speed, low-loss, and reliable connections between various network components. These adapters are designed to offer excellent optical performance, reducing signal degradation and ensuring a stable connection.

Fiber Compatibility

Fiber optic adapters are available in various types, such as single-mode and multimode adapters. This allows for compatibility with different types of fiber optic cables and connectors. Whether you are using SC, LC, ST, or other types of connectors, there is an adapter available to suit your needs.

Easy Installation

Fiber optic adapters are designed for easy installation and removal. They often feature a simple plug-and-play design, eliminating the need for complex splicing or termination processes. This makes it quick and convenient to install or replace adapters when necessary.

Versatility

Fiber optic adapters can be used in various applications, including patch panels, fiber optic modules, SFP transceivers, converters, and more. They provide a flexible and versatile solution for connecting different components in fiber optic networks.

Durability

Optical fiber adapters are built to withstand the demanding conditions of fiber optic systems. They are constructed with high-quality materials that can withstand environmental factors such as temperature changes, moisture, and dust. This ensures long-lasting and reliable performance.

Efficiency

Fiber optic adapters minimize loss and maintain signal integrity, ensuring efficient data transmission. By providing a secure connection, they prevent signal degradation and maintain the high-speed capabilities of fiber optic networks.

Cost-Effective

Using fiber optic adapters can help save costs in the long run. They provide a reliable and durable solution, reducing the need for frequent repairs or replacements. Additionally, their compatibility with different fiber optic components eliminates the need for costly system upgrades.

In conclusion, fiber optic adapters offer numerous benefits for fiber optic networks. They enhance connectivity, provide compatibility with various fiber types and connectors, offer easy installation, versatility, durability, efficiency, and cost-effectiveness. These adapters are essential components for ensuring reliable and efficient data transmission in fiber optic systems.

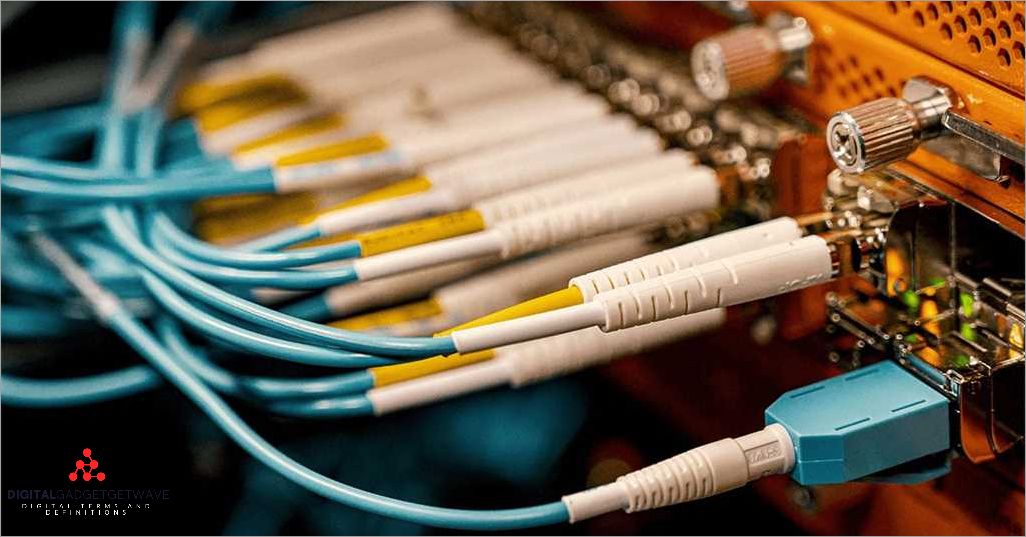

Applications of Fiber Optic Adapters

1. Network Connectivity:

Fiber optic adapters are widely used in networking applications to provide a seamless and reliable connection between different types of fiber optic cables. They allow for easy and quick installation, making it possible to connect optical fibers with different connector types, such as LC, SC, ST, or FC.

2. Patch Panels and Distribution Frames:

Fiber optic adapters are commonly used in patch panels and distribution frames to provide a standardized interface for connecting various optical fibers. They allow for easy organization and management of fiber cables, ensuring efficient communication within the network.

3. Splicing and Termination:

When splicing or terminating optical fibers, fiber optic adapters are used to connect the spliced or terminated fibers to other optical devices, such as transmitters, receivers, or converters. This ensures a secure and reliable connection, minimizing signal loss and maximizing transmission performance.

4. Multimode to Single-mode Conversion:

Fiber optic adapters can be used to convert the connector type of multimode fibers to single-mode fibers, enabling compatibility between different types of cables. This is particularly useful in situations where a network is being upgraded or expanded, and different fiber types need to be connected.

5. Fiber Optic Testing and Measurement:

Fiber optic adapters are essential components in testing and measuring the performance of optical networks. They allow for easy connection of optical power meters, optical time-domain reflectometers (OTDRs), and other testing equipment to the network, facilitating accurate and reliable measurements.

6. Fiber Optic Transceiver Modules:

Fiber optic adapters are widely used in transceiver modules, such as SFP, QSFP, or XFP, to ensure a secure and efficient connection between the transceiver and the network. They allow for hot-plugging and easy replacement of transceiver modules, enabling flexibility and convenience in network maintenance and upgrades.

In conclusion, fiber optic adapters have a wide range of applications in various fields, including network connectivity, patch panels, splicing and termination, multimode to single-mode conversion, testing and measurement, and transceiver modules. These adapters play a crucial role in ensuring reliable and efficient optical communication, providing seamless connectivity between different optical components and devices.
