Printheads: A comprehensive guide to everything you need to know

ensure optimal, onto paper, optimal print, poor print, poor print quality, print quality

What is printhead? Everything you need to know about printheads

A printhead is a vital component of a printer that contains a series of microscopic nozzles. These nozzles are responsible for spraying ink onto the paper, creating text or images. The quality of the printhead directly affects the print quality. Over time, printheads may encounter various issues like clogs, which can cause poor print quality or even prevent printing altogether.

Maintenance is crucial to keep the printhead functioning properly. Regularly cleaning the printhead can help prevent clogs and ensure optimal performance. A clean printhead helps to maintain clear and sharp prints. Additionally, some printers have a feature that allows users to manually clean the printhead, while others have an automated cleaning process.

When a printhead becomes clogged, it can affect the flow of ink through the nozzles, leading to streaks, blotches, or blank spots on the paper. Troubleshooting a clogged printhead often involves running a cleaning cycle or using cleaning solutions specifically designed for printhead maintenance.

If cleaning fails to resolve the issue, it may be necessary to replace the printhead. Some printers have a separate cartridge for the printhead, allowing users to easily replace it when needed. However, other printers have the printhead integrated into the ink cartridge, requiring users to replace the entire cartridge.

Printheads are delicate components, and mishandling or improper care can lead to damage. It is essential to follow the manufacturer’s instructions carefully to avoid any errors or unnecessary expenses. Additionally, some printheads have a microchip that communicates with the printer and provides information about ink levels or error messages related to the printhead.

In conclusion, understanding the printhead and its maintenance is crucial for ensuring high-quality prints and avoiding printing issues. Regular cleaning, troubleshooting clogs, and proper handling can significantly prolong the lifespan of the printhead and keep the printer running smoothly.

Definition of printhead and its function

Definition of printhead and its function

A printhead is a component of a printer that is responsible for transferring ink onto the paper. It is a small, intricate device that contains multiple nozzles, which expel ink droplets onto the paper in a precise pattern.

The main function of a printhead is to accurately control the flow of ink and ensure that it is applied to the paper in the correct position. This process, known as printing, produces text, images, or graphics on the paper.

The printhead is a vital part of the printer and requires regular maintenance to ensure optimal performance. Over time, the nozzles of the printhead can become clogged with dried ink, resulting in poor print quality or even error messages on the printer.

If the printhead becomes clogged or damaged, it may need to be replaced. This can be done by either cleaning the printhead or replacing it with a new one. Cleaning the printhead involves using a specialized solution or cleaning cartridge to remove any clogs or debris from the nozzles.

It is important to properly align the printhead with the paper to ensure accurate and precise printing. This can be done through the printer’s software settings or by performing a printhead alignment test.

When troubleshooting printing issues, such as streaks or gaps in the print, it is often recommended to check the printhead for any clogs or alignment issues. Cleaning the printhead or performing a printhead alignment can often resolve these issues and improve print quality.

In summary, the printhead is a crucial component of a printer, responsible for transferring ink onto the paper. Regular maintenance and cleaning are required to ensure optimal performance and print quality. If issues arise, cleaning or replacing the printhead may be necessary.

Types of printheads

Types of printheads

A printhead is a critical component of a printer that ejects ink onto the paper to create text or images. There are several types of printheads available, each suited for different printing technologies:

  • Thermal Inkjet Printheads: This type of printhead uses a microchip to heat the ink, causing it to expand and form a tiny droplet that is forced through the printhead nozzle. Thermal inkjet printheads are commonly found in home printers due to their low cost and high print quality.
  • Piezo Electric Printheads: Piezo electric printheads utilize a piezoelectric crystal that vibrates when an electric current is applied. This vibration creates pressure and ejects ink droplets through the nozzle. Piezo electric printheads are known for their versatility and can be used in a wide range of printing applications.
  • Laser Printheads: Laser printheads use a laser beam to scan the surface of a charged drum, creating electrostatic images that attract and transfer toner to the paper. Laser printheads are commonly found in laser printers and are known for their high-speed printing and crisp text and graphics.
  • Dot Matrix Printheads: Dot matrix printheads use a matrix of small pins to strike an ink-soaked ribbon against the paper, creating characters and images. Dot matrix printheads are commonly used in industrial applications and are known for their durability and ability to print on multi-part forms.
READ MORE  Discover the Benefits and Uses of Emar: All You Need to Know About Emar

To ensure optimal print quality and prevent issues such as clogged nozzles, printheads require regular maintenance. This may involve cleaning the printhead, aligning the printhead, or replacing the printhead cartridge. If you encounter any errors or issues with the printhead, it is recommended to consult the printer’s user manual for troubleshooting instructions or seek professional assistance.

Thermal Inkjet Printheads

A thermal inkjet printhead is a crucial component of a printer that is responsible for transferring ink onto the paper to create a printed image or text. It is composed of a series of microscopic nozzles that release tiny droplets of ink onto the paper. The printhead is typically located in the cartridge, making it easy to replace when necessary.

One common issue with thermal inkjet printheads is clogging. Over time, the ink can dry out and block the nozzles, resulting in poor print quality or even complete failure to print. To troubleshoot this problem, you can run a printhead cleaning cycle using the printer’s software. This process helps remove any dried ink and unclogs the nozzles, restoring the print quality.

In some cases, the clogging may be too severe to be resolved through cleaning. In such situations, it may be necessary to replace the printhead or the entire cartridge. Printhead replacement can be done by following the manufacturer’s instructions, ensuring proper alignment and installation.

Regular maintenance of the printhead is essential to prevent clogging and maintain optimal print quality. This includes keeping the printer clean, avoiding prolonged periods of inactivity, and using high-quality ink cartridges. It’s also important to avoid touching the printhead or exposing it to excessive heat or moisture, as this can damage the delicate microchip inside.

If there is an error or issue with the printhead, the printer may display a warning message or flashing lights. It’s essential to consult the printer’s manual or contact customer support for troubleshooting steps specific to your printer model. Following these instructions carefully can help identify and resolve any printhead-related problems.

In summary, thermal inkjet printheads are an essential component of printers that enable the transfer of ink onto paper. Regular maintenance, troubleshooting, and proper alignment of the printhead are necessary to ensure optimal print quality and avoid clogging issues. By taking these steps, you can extend the lifespan of your printer and enjoy high-quality prints.

Piezoelectric Inkjet Printheads

A piezoelectric inkjet printhead is an essential component of an inkjet printer. It plays a crucial role in the printing process by delivering precise and controlled droplets of ink onto the paper. Instead of using heat to vaporize the ink, piezoelectric printheads use tiny piezoelectric crystals that contract and expand in response to electrical signals.

These crystals are connected to a microchip, which controls the timing and volume of the ink droplets. When the printer receives a print command, the microchip sends electrical pulses to the crystals, causing them to vibrate. As they vibrate, they create pressure waves that force the ink out of the printhead’s nozzles and onto the paper.

One advantage of piezoelectric printheads is their ability to replace individual nozzles if they become clogged or damaged. This means that if a printhead nozzle becomes blocked, the user can clean or replace that specific nozzle, rather than having to replace the entire printhead.

Regular maintenance is essential to keep the printhead in good working condition. If the printhead is not cleaned regularly, ink residue can build up and clog the nozzles. This can result in poor print quality or even errors such as streaks or missing lines. To prevent these issues, it is recommended to perform printhead cleaning or run a printhead maintenance cycle on a regular basis.

If the printer displays a printhead error message, it is important to troubleshoot the issue promptly. This may involve checking the ink levels, ensuring proper alignment of the printhead, or performing a printhead cleaning cycle. In some cases, a printhead replacement may be necessary if cleaning and troubleshooting do not resolve the issue.

In addition to regular maintenance, it is important to use high-quality ink cartridges compatible with the printer. Poor quality or incompatible ink can cause printhead clogs or damage, resulting in a decrease in print quality or even the need for a printhead replacement.

Overall, piezoelectric inkjet printheads are a critical component of inkjet printers. Their precise control and ability to replace individual nozzles make them an efficient and cost-effective choice for printing. Proper maintenance and troubleshooting are key to ensuring optimal print quality and prolonging the lifespan of the printhead.

Laser Printheads

Laser Printheads

A laser printhead is an essential component of a laser printer that is responsible for creating high-quality prints. Unlike inkjet printers that use liquid ink, laser printers use toner cartridges, which contain a dry powdered ink.

The maintenance of a laser printhead is relatively simple compared to an inkjet printhead. Since laser toner is dry, it does not clog the printhead like inkjet ink can. This means that laser printheads do not require regular cleaning or alignment.

One common issue with laser printheads is the quality of the prints. If the print quality starts to decline, it may be a sign that the laser printhead needs to be replaced. Additionally, if the printer displays an error message regarding the printhead or if there are streaks or spots on the prints, it could indicate a problem with the printhead.

READ MORE  How Does a Typewriter Work: A Comprehensive Guide

The laser printhead contains a microchip that communicates with the printer to ensure proper operation. If there is an issue with the microchip or if it becomes damaged, it may affect the functionality of the printhead. In such cases, troubleshooting steps can be taken to identify and resolve the problem.

Replacing a laser printhead can be a more complex task compared to an inkjet printhead. It typically involves removing the old printhead and installing a new one. It is important to consult the printer’s user manual or contact the manufacturer for specific instructions on how to replace the printhead.

When printing, the laser printhead applies the toner to the paper, creating the desired image or text. The precision of the printhead determines the sharpness and clarity of the prints. If the printhead becomes damaged or worn out, it may result in poor print quality or incomplete prints.

In conclusion, laser printheads play a crucial role in the functioning of laser printers. While they require less maintenance compared to inkjet printheads, it is essential to monitor their performance for any signs of deterioration. Timely replacement of a faulty printhead can ensure optimal print quality and prevent any disruptions in printing tasks.

Factors affecting printhead performance

Factors affecting printhead performance

Printhead performance can be affected by several factors, including nozzle maintenance, printer settings, and ink quality. It is important to understand these factors in order to troubleshoot and optimize print quality.

Nozzle clogs: Over time, printhead nozzles can become clogged with dried ink or debris. This can lead to uneven ink distribution and poor print quality. Regular cleaning of the printhead can help prevent clogs and ensure consistent performance.

Alignment issues: Misalignment of the printhead can cause the printer to print incorrectly, resulting in blurred or distorted images. It is important to regularly calibrate the printhead alignment to ensure accurate printing.

Ink quality: The quality of the ink used can greatly impact printhead performance. Low-quality ink or expired cartridges can cause nozzle clogs, color discrepancies, and overall poor print output. It is recommended to use high-quality ink that is compatible with the printer model.

Microchip errors: Some printers have microchips on their ink cartridges that communicate with the printer. If there is an error with the microchip or compatibility issues, the printer may not recognize the cartridge or display error messages. In such cases, it may be necessary to replace the cartridge or troubleshoot the microchip issue.

Paper type and condition: The type and condition of the paper used can also affect printhead performance. Improperly loaded or low-quality paper can cause jams, smearing, and other printing issues. It is important to use the correct paper type and ensure it is free from wrinkles, folds, or moisture.

Ink quality and compatibility

One of the important factors to consider when troubleshooting printing issues is the ink quality and compatibility. The printhead and the type of ink used play a crucial role in achieving optimal print results.

The printer’s printhead is responsible for transferring ink onto the paper, and if there is any alignment or compatibility issue, it can affect the printing quality. Some printers have built-in alignment features that help ensure the printhead is properly aligned.

When using third-party or refilled ink cartridges, it’s important to ensure compatibility with the printer. The microchip on the cartridge communicates with the printer, and an error message can be displayed if the ink cartridge is not recognized or compatible.

Poor ink quality can lead to clogs in the printhead nozzles, resulting in streaks or missing lines in the printed documents. Regular cleaning and maintenance of the printhead can help prevent clogs and maintain print quality.

If the ink quality is consistently poor or the printhead becomes damaged, it may be necessary to replace the printhead or seek professional assistance. Some printers have built-in maintenance routines that can help prolong the life of the printhead and ensure optimal printing performance.

In summary, ink quality and compatibility are crucial factors in achieving high-quality prints. Proper alignment, regular cleaning, and ensuring compatibility with the printer can help troubleshoot and maintain optimal printing results.

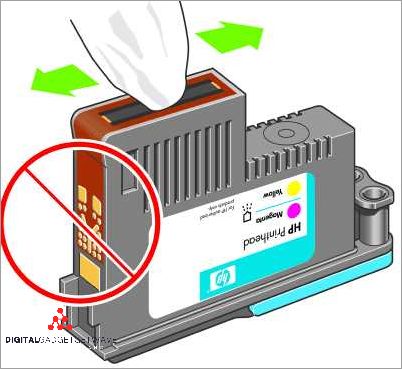

Maintenance and cleaning

Maintenance is crucial for the proper functioning of a printhead. Regular cleaning helps prevent clogs and ensures optimal print quality. It is important to follow the printer manufacturer’s guidelines for maintenance to keep the printhead in good condition.

One common issue that can occur with printheads is clogging. When ink dries in the nozzles, it can block the flow of ink and result in poor print quality or errors. If you encounter a clog, the printer may display a message indicating a problem with the printhead. In this case, it is necessary to clean the printhead to remove any dried ink.

There are several methods for cleaning a printhead. Some printers have an automated cleaning function that can be activated through the printer’s software. This will typically run a series of ink flushes and nozzle cleanings to clear any clogs. Alternatively, manual cleaning can be done by removing the printhead from the printer and using a lint-free cloth or cotton swab to gently wipe the nozzles and ink contacts. It is important to be careful not to damage the printhead or its microchip during the cleaning process.

READ MORE  Understanding the Inner Workings of a Thermal Printer: A Comprehensive Guide

In addition to regular cleaning, maintenance also involves replacing ink cartridges when they are low or empty. The printer may display an error message indicating that an ink cartridge needs to be replaced. It is important to follow the manufacturer’s instructions for replacing ink cartridges to ensure proper installation.

Regular maintenance and cleaning of the printhead can help troubleshoot print quality issues and extend the lifespan of the printer. By following the recommended maintenance schedule and keeping the printhead clean, users can enjoy the best possible print results and minimize the risk of clogs or errors.

Environmental conditions

The environmental conditions in which a printer operates can have a significant impact on the performance and longevity of its printhead. Ink, alignment, and maintenance are all factors that can be affected by the environment.

Temperature and humidity levels can affect the ink in the printer cartridge. Extreme heat or cold can cause the ink to dry up or become too thick, leading to poor print quality or clogs in the printhead. It is important to store ink cartridges in a cool, dry place to prevent these issues.

Proper alignment is crucial for the smooth operation of the printhead. When the printhead is misaligned, it can cause the print to be blurry or uneven. Regularly checking and adjusting the alignment of the printhead can help maintain print quality.

Maintenance is key to keeping the printhead in optimal condition. Regular cleaning of the printhead can prevent clogs and ensure consistent print quality. Follow the manufacturer’s instructions for cleaning the printhead and use the recommended cleaning solution.

In addition to proper maintenance, replacing the ink cartridge when it is low can also help prevent printhead issues. When the ink levels are low, the printhead may not receive enough ink, leading to poor print quality. It is important to replace the ink cartridge before it runs out completely.

Environmental conditions can also affect the paper used in the printer. High humidity levels can cause the paper to absorb moisture, leading to wrinkling or curling. It is important to store paper in a dry place and use paper that is suitable for the printer’s specifications.

If a printhead error or message is displayed, it is important to troubleshoot the issue. This can involve checking the alignment, cleaning the printhead, or replacing the cartridge. Consulting the printer’s manual or contacting technical support can provide further guidance.

Overall, maintaining optimal environmental conditions for a printer is essential for ensuring the longevity and performance of the printhead. Proper ink, alignment, and maintenance practices can help prevent printhead issues and maintain print quality over time.

FAQ about topic “Printheads: A comprehensive guide to everything you need to know”

What is a printhead?

A printhead is a device that is responsible for creating images or text on paper or other materials. It is a key component of a printer and is usually made up of tiny nozzles that spray ink onto the paper in a precise pattern, forming the desired image or text.

How does a printhead work?

A printhead works by using a combination of heat and pressure to force ink through tiny nozzles onto the paper. The nozzles are arranged in a specific pattern, which allows for precise control over the placement and size of the ink droplets on the paper. This process is repeated thousands of times per second to create the desired image or text.

What types of printheads are there?

There are several types of printheads, including thermal, piezoelectric, and continuous inkjet printheads. Thermal printheads use heat to create tiny bubbles in the ink, which then forces the ink onto the paper. Piezoelectric printheads use a small electric charge to change the shape of a piezoelectric crystal, which in turn forces ink through the nozzles. Continuous inkjet printheads create a continuous stream of ink droplets, and use electric charges to control the placement of the droplets onto the paper.

Can printheads be replaced?

Yes, printheads can usually be replaced. However, the ease of replacing a printhead will depend on the specific printer model. In some cases, the printhead may be a separate unit that can be easily removed and replaced. In other cases, the printhead may be integrated into the printer, making it more difficult and expensive to replace.

Why do printheads sometimes clog?

Printheads can sometimes clog due to a variety of reasons. One common cause is dried ink or other debris that accumulates on the nozzles, blocking the flow of ink. This can happen if the printer is not used regularly or if the ink is of low quality. Clogging can also occur if the printer is not properly maintained, such as not performing regular printhead cleaning or using the wrong type of ink.
