A Superconducting Quantum Interference Device (SQUID) is a highly sensitive magnetic field detector that operates at very low temperatures. SQUIDs are based on the principles of quantum mechanics and utilize the phenomena of superconductivity and quantization of magnetic flux to achieve unparalleled sensitivity and accuracy in magnetic field measurements.
At the heart of a SQUID is a superconducting loop made of a material that exhibits zero resistance at low temperatures. This loop is interrupted by one or more Josephson junctions, which are two superconducting electrodes separated by a thin insulating layer. When a magnetic field is applied to the loop, the superconducting electrons experience a phase shift as they pass through the junction, creating an interference pattern. This interference pattern is highly sensitive to even very small changes in the magnetic field, allowing the SQUID to amplify and measure extremely weak magnetic signals.
One of the key advantages of SQUIDs is their ability to operate at cryogenic temperatures, typically below 4 Kelvin. At these low temperatures, thermal noise is greatly reduced, enabling the SQUID to achieve exceptional sensitivity. Additionally, the use of superconducting materials allows for high-quality signal amplification without introducing significant electronic noise. This combination of low temperature operation and high amplification results in a highly accurate and precise magnetic field measurement device.
SQUIDs find applications in a wide range of scientific and technological fields. They are used in areas such as geophysics, medical imaging, materials science, and fundamental physics research. In geophysics, SQUIDs are used to measure the extremely weak magnetic signals generated by the Earth’s magnetic field, allowing for the study of processes such as tectonic plate movements and mineral exploration. In medical imaging, SQUIDs are employed in a technique called Magnetoencephalography (MEG), which allows for non-invasive measurement of the magnetic fields generated by the brain. This provides valuable insights into brain function and has applications in diagnosing neurological disorders.
In conclusion, SQUIDs are incredibly powerful and versatile magnetic field detectors. Their high sensitivity, low temperature operation, and quantum-based principles make them ideal for a wide range of applications. Whether it be exploring the fundamental properties of matter or improving medical diagnostic techniques, SQUIDs continue to push the boundaries of what is possible in magnetic field measurement.
Contents
- 1 What are Superconducting Quantum Interference Devices (SQUIDs)?
- 2 History and Development of SQUIDs
- 3 Principles of Operation
- 4 Types of SQUIDs
- 5 Applications of SQUIDs
- 6 FAQ about topic “Understanding Superconducting Quantum Interference Devices (SQUIDs): A Comprehensive Guide”
- 7 What is a superconducting quantum interference device (SQUID)?
- 8 How does a SQUID work?
- 9 What are the main applications of SQUIDs?
- 10 What are the advantages of using SQUIDs?
- 11 Are there any limitations to using SQUIDs?
What are Superconducting Quantum Interference Devices (SQUIDs)?
A Superconducting Quantum Interference Device (SQUID) is a cryogenic device used for the sensitive measurement of magnetic fields. It operates on the principle of quantization of magnetic flux in superconducting circuits. The SQUID consists of a superconducting loop interrupted by one or more Josephson junctions.
When a magnetic signal interacts with the SQUID, it induces a change in the magnetic flux through the loop, causing a phase shift in the superconducting wave function. This phase shift results in an interference pattern, which is detected and amplified by the SQUID. By carefully designing the SQUID, it is possible to achieve high sensitivity to magnetic fields even at very low temperatures.
The major advantage of SQUIDs is their extraordinary magnetic field sensitivity, which can reach levels as low as a few femtoteslas. This high sensitivity makes them ideal for a wide range of applications, including biomedical imaging, geological exploration, and materials characterization.
SQUIDs are typically operated at cryogenic temperatures, usually below 4 Kelvin (-269 degrees Celsius), in order to maintain the superconducting state. The low temperature reduces thermal noise and enhances the quantum coherence of the electrons flowing through the device.
In addition to their high sensitivity and cryogenic operation, SQUIDs also have a low noise level, which is essential for accurate measurement. The noise is minimized by using high-quality materials and shielding to reduce external interference, as well as by carefully designing the superconducting resonator and amplification circuitry.
In summary, Superconducting Quantum Interference Devices (SQUIDs) are highly sensitive detectors of magnetic fields, operating at cryogenic temperatures. They rely on the quantization of magnetic flux in superconducting circuits and the interference patterns created by phase shifts. Their exceptional sensitivity, low noise, and ability to operate at low temperatures make them an invaluable tool for a wide range of scientific and technological applications.
History and Development of SQUIDs
The history of superconducting quantum interference devices (SQUIDs) dates back to the late 1950s when their concept was first proposed by Robert Jaklevic, John Lambe, Arnold Silver, and James Mercereau. These devices were initially developed as powerful detectors for low-temperature experiments, leveraging the unique properties of superconducting materials.
One of the key breakthroughs in the development of SQUIDs was the discovery of flux quantization in superconductors by John Rowell and Brian D. Josephson in 1962. This phenomenon states that the magnetic flux through a superconducting loop is quantized in discrete units, leading to the creation of a highly sensitive detector for magnetic fields.
Over the years, significant advancements have been made in the design and fabrication of SQUIDs. The development of Josephson junctions, which are based on the quantum tunneling of Cooper pairs of electrons, enabled the creation of ultra-sensitive and low-noise SQUIDs. These junctions act as the heart of SQUIDs, allowing for the detection of extremely small magnetic signals.
Another important milestone in the development of SQUIDs was the invention of the resonator-enhanced SQUID, or “RF-SQUID,” by John Clarke in 1974. This design incorporates a superconducting resonator, which amplifies and filters the signal detected by the SQUID, further improving its quantum sensitivity.
The use of cryogenic techniques, such as cooling the SQUID to ultra-low temperatures, became essential in achieving high performance. The cryogenic environment helps to reduce noise and allows for precise control of the SQUID’s operation. With these advancements, SQUIDs have become indispensable tools in a wide range of fields, including physics, biology, geophysics, and medicine, enabling highly accurate magnetic field measurements and contributing to the progress of many scientific disciplines.
Principles of Operation
A Superconducting Quantum Interference Device (SQUID) is a cryogenic device commonly used as a highly sensitive detector for magnetic field measurements. The device operates based on the phenomenon of interference, making use of the quantum properties of electrons in a superconducting state.
The heart of a SQUID is a loop made of superconducting material, usually niobium, that is cooled to a very low temperature, typically below 1 Kelvin. The loop consists of two junctions, known as Josephson junctions, which are responsible for the main operation of the device.
The SQUID detects changes in the magnetic flux passing through the loop. This flux is quantized due to the superconducting nature of the device, and any change in the flux results in a change in the SQUID’s phase. By measuring this phase change, the SQUID can accurately determine the strength and direction of the magnetic field it is exposed to.
One of the key advantages of SQUIDs is their extraordinary sensitivity. The quantization of flux and the low temperature operation allow for the detection of extremely weak magnetic fields, down to the level of femtoteslas. This makes SQUIDs ideal for a wide range of applications, such as biomagnetic measurements, geophysical exploration, and materials characterization.
To achieve such high sensitivity, a SQUID typically incorporates additional components such as a resonator and amplification circuitry. The resonator helps to tune the SQUID to the desired frequency range, while the amplification circuitry boosts the weak signal from the SQUID to a measurable level, minimizing the effect of noise.
Overall, the principles of operation of a SQUID involve the utilization of superconductivity, quantization, and interference to create a highly sensitive magnetic field detector. Its low noise and high-precision capabilities make the SQUID an essential tool in various fields of research and technology.
Quantum Mechanics and Superconductivity
Superconductivity, a phenomenon in which certain materials can conduct electric current without any resistance, arises from the underlying quantum mechanical behavior of electrons. In quantum mechanics, electrons exhibit wave-like properties and can exist in multiple energy levels or states simultaneously. These energy levels are quantized, meaning the electrons can only occupy certain discrete values of energy.
At low temperatures, below a critical temperature known as Tc, certain materials become superconducting. In superconductors, quantum effects dominate and allow for the formation of electron pairs called Cooper pairs, which can flow without any resistance through the material. These Cooper pairs are responsible for the superconducting properties, as they can move freely without scattering off impurities or lattice vibrations.
Superconducting Quantum Interference Devices (SQUIDs) take advantage of the quantum nature of superconductivity to detect and measure extremely small magnetic fields. SQUIDs consist of superconducting loops interrupted by one or two Josephson junctions. Josephson junctions are weak links between two superconductors, allowing for the flow of Cooper pairs between them.
The sensitivity of a SQUID as a magnetic field detector relies on the interference between two superconducting paths of the Cooper pairs. When a magnetic field is applied, it creates a flux through the SQUID loop and changes the phase of the superconducting wave function. By measuring the change in the phase, the SQUID can determine the magnitude of the applied magnetic field.
To improve the sensitivity and noise performance of SQUIDs, they are typically operated at cryogenic temperatures close to absolute zero. This reduces thermal noise and enhances the coherence of the superconducting wave function. Additionally, SQUIDs can be coupled to resonant circuits for signal amplification and further sensitivity enhancement.
In summary, the understanding of quantum mechanics allows for the development and operation of superconducting devices, such as SQUIDs, which can detect and measure extremely small magnetic fields with high sensitivity. The quantization of energy levels and the interference of superconducting wave functions play key roles in the functioning of these devices, making them powerful tools in various scientific and technological applications.

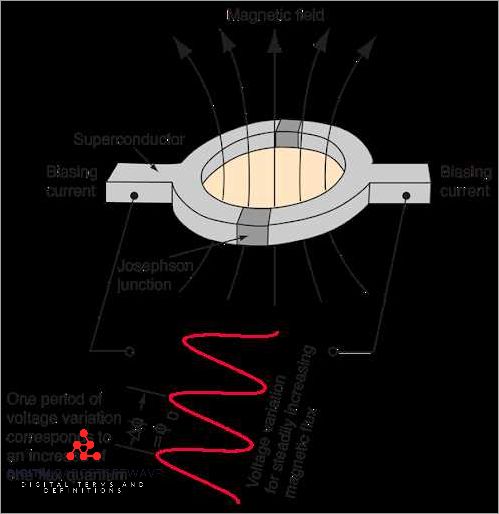

Josephson Junction and Flux Quantization
The Josephson junction is a key component in the operation of superconducting quantum interference devices (SQUIDs). It consists of two superconducting electrodes separated by a thin insulating barrier. The behavior of the Josephson junction is described by the Josephson effect, which states that a supercurrent can flow across the junction in the absence of any voltage difference. This supercurrent is sensitive to the phase difference across the junction.
The flux quantization phenomenon is an important concept in understanding the operation of SQUIDs. It states that the magnetic flux through a superconducting loop can only take on discrete values. This quantization of the magnetic flux is a consequence of the wave nature of the superconducting electron pairs, known as Cooper pairs, which exhibit a macroscopic quantum phase coherence.
In SQUID devices, the Josephson junction acts as a sensitive detector of the magnetic field. When a magnetic field passes through the superconducting loop, it induces a change in the phase difference across the junction. This change in phase leads to a change in the supercurrent flowing through the junction, which can be measured as a voltage across the junction. By amplifying and measuring this voltage, SQUIDs can detect incredibly small changes in magnetic fields.
To operate effectively, SQUIDs require cryogenic temperatures, typically below 4 Kelvin, to maintain the superconducting state of the junction. This cryogenic environment reduces thermal noise and improves the sensitivity of the device. Additional noise reduction techniques, such as flux focusing and resonator based amplification, can further enhance the sensitivity of SQUIDs.
In summary, the Josephson junction and flux quantization play essential roles in the operation of superconducting quantum interference devices. The Josephson effect allows for the flow of supercurrent across the junction, while the flux quantization phenomenon ensures that the magnetic flux through the superconducting loop is quantized. These properties make SQUIDs highly sensitive detectors of magnetic fields, with applications in various fields such as physics, materials science, and medical imaging.
Electromagnetic Interference and Noise in SQUIDs
Superconducting Quantum Interference Devices (SQUIDs) are highly sensitive detectors used for measuring magnetic fields. They operate based on the principle of quantum interference, where the superconducting state of the device allows for the quantization of the magnetic flux. However, these devices are susceptible to various sources of noise and electromagnetic interference, which can impact their performance.
One of the main sources of noise in SQUIDs is thermal noise, which arises from random fluctuations in the energy of the electrons. The low temperature operation of SQUIDs, typically in the cryogenic range, helps to minimize this noise. Additionally, the use of superconducting materials reduces the impact of thermal noise by providing a low resistance path for the current.
Electromagnetic interference from external sources can also affect the performance of SQUIDs. This interference can come from power lines, electronic equipment, or even other SQUIDs in the vicinity. Shielding and filtering techniques are often employed to minimize the impact of electromagnetic interference, ensuring accurate measurements.
Another source of noise in SQUIDs is the quantum noise associated with the uncertainty in the phase and amplitude of the superconducting wave function. This noise can limit the ultimate sensitivity of the device and is influenced by factors such as temperature, current, and flux bias. Optimization of these parameters helps to minimize the quantum noise and improve the performance of the SQUID.
To enhance the sensitivity of SQUIDs, amplification techniques are employed, such as using a resonator to enhance the signal of interest. The resonator increases the effective coupling between the SQUID and the magnetic field being measured, resulting in higher signal amplitudes. However, it is important to carefully optimize the resonator design to avoid introducing additional noise into the measurement.
In summary, electromagnetic interference and noise are important considerations in the design and operation of SQUIDs. By minimizing thermal noise, shielding from external sources, optimizing quantum noise, and implementing appropriate amplification techniques, the performance of SQUIDs can be effectively improved, enabling accurate and sensitive magnetic field measurements.
Types of SQUIDs
SQUIDs, or Superconducting Quantum Interference Devices, are versatile devices used for sensitive measurements of magnetic fields and signals. There are several types of SQUIDs, each with its own unique properties and applications.
1. Flux SQUIDs:
This type of SQUID relies on the quantization of magnetic flux in a loop of superconducting material. It consists of a loop interrupted by one or two Josephson junctions. The interference between the two superconducting wave functions at the junctions produces a phase shift, which is sensitive to the applied magnetic field. Flux SQUIDs are known for their high sensitivity and low noise levels, making them ideal for applications requiring precise magnetic field detection.
2. DC SQUIDs:
DC SQUIDs also rely on the quantization of magnetic flux, but they use a single Josephson junction. The current flowing through the junction exhibits a periodic response to the applied magnetic field, resulting in a modulation of the phase. DC SQUIDs are less sensitive to low-frequency noise and offer excellent current amplification, making them suitable for both high-precision measurements and amplification purposes.
3. RF SQUIDs:
RF SQUIDs, or Resonator Flux SQUIDs, combine the principles of flux and resonant circuits. They use a loop resonator in addition to a Josephson junction, which allows them to detect signals in the radiofrequency range. RF SQUIDs are commonly used in a cryogenic environment to achieve high sensitivity and low noise levels, making them ideal for applications such as quantum computing and microwave amplification.
4. Single Electron Transistor (SET) SQUIDs:
SET SQUIDs utilize a superconducting island coupled to a single electron transistor. The charge state of the transistor is sensitive to the magnetic flux, allowing for the detection of small changes in the flux. SET SQUIDs are known for their extremely high sensitivity and can operate at low temperatures. They are widely used in applications such as quantum computing and low-temperature measurements.
Overall, the different types of SQUIDs offer a range of sensitivities, noise levels, and temperature requirements to suit various applications. Whether it’s for precise magnetic field measurements, signal amplification, or quantum computing, SQUIDs play a crucial role in enabling advanced research and technology development.
DC SQUIDs
A DC SQUID, or direct current superconducting quantum interference device, is a highly sensitive detector used to measure magnetic fields. It consists of a superconducting loop interrupted by two Josephson junctions, which create a quantized phase difference between the two sides of the loop. This phase difference is highly sensitive to changes in the magnetic flux passing through the loop, making the DC SQUID an extremely sensitive magnetic field detector.
The sensitivity of a DC SQUID is due to its ability to measure extremely small changes in magnetic flux. The flux through the superconducting loop affects the phase difference across the Josephson junctions, which in turn affects the current flowing through the SQUID. By measuring this current, the DC SQUID can detect even tiny changes in the magnetic field.
The low temperature required for superconductivity is essential for the operation of DC SQUIDs. These devices must be operated at cryogenic temperatures, typically below 4 Kelvin, in order to maintain superconductivity and minimize thermal noise. The low temperature also allows for the quantum mechanical behavior of electrons to manifest, enabling the sensitivty and functionality of the DC SQUID.
DC SQUIDs are often used in conjunction with amplification and readout circuitry to further enhance their sensitivity. The small currents generated by changes in magnetic field are amplified to a level that can be easily measured and analyzed. This amplification allows for precise measurement of magnetic fields, even at extremely low levels.
Noise is a critical factor in the performance of DC SQUIDs. Noise sources can include thermal noise, electronic noise, and low-frequency noise. These noise sources can limit the sensitivity and performance of the DC SQUID, and thus must be carefully controlled and minimized. Various techniques, such as shielding and filtering, can be employed to reduce noise and improve the overall performance of the DC SQUID detector.
In summary, DC SQUIDs are superconducting quantum interference devices that are highly sensitive to magnetic fields. Their ability to measure tiny changes in magnetic flux, along with the use of amplification and noise reduction techniques, allows for precise and accurate measurement of magnetic fields. These devices operate at cryogenic temperatures and rely on the quantum mechanical properties of electrons to function effectively.
RF SQUIDs
A superconducting quantum interference device (SQUID) is a highly sensitive detector that can measure subtle changes in magnetic fields. RF SQUIDs, or radio-frequency SQUIDs, are a type of SQUID device designed to operate at radio frequencies. They are commonly used in a range of scientific and technological applications, including in quantum computing, particle physics research, and medical imaging.
RF SQUIDs are typically operated at cryogenic temperatures, close to absolute zero, in order to take advantage of the superconducting properties of certain materials. This allows for low noise and high sensitivity measurements. The core component of an RF SQUID is a superconducting loop that contains one or two Josephson junctions. These junctions are formed by placing two superconducting electrodes across a thin insulating layer, allowing for the flow of electrons between them.
The operation of an RF SQUID relies on the quantization of magnetic flux, which is a fundamental property of superconducting circuits. When a magnetic field is applied, it induces a phase shift in the wave function of the electrons circulating in the loop. This leads to a change in the overall current flowing through the SQUID, which can be detected as a change in the output voltage signal.
In order to achieve high sensitivity and low noise measurements, RF SQUIDs are often coupled to resonators. These resonators help to amplify the small signals generated by the SQUID device. By carefully designing the resonator, it is possible to enhance the sensitivity of the SQUID and reduce the effects of interference and noise in the measurement process.
RF SQUIDs have revolutionized many fields of science and technology, enabling researchers to make precise measurements of magnetic fields, ranging from very small to very large. Their unique design and exceptional sensitivity make them an invaluable tool for studying the quantum nature of matter and for developing advanced technologies, such as quantum computers and ultra-sensitive medical imaging devices.
High-Temperature SQUIDs
A high-temperature Superconducting Quantum Interference Device (SQUID) is a sensitive flux detector that operates at relatively higher temperatures compared to conventional low-temperature SQUIDs. These devices are based on the principles of quantum interference and the phenomenon of superconductivity.
High-temperature SQUIDs offer significant benefits over their cryogenic counterparts. The main advantage is the ability to operate at temperatures closer to room temperature, eliminating the need for expensive and complex cryogenic cooling systems. This makes high-temperature SQUIDs more versatile and easier to handle, opening up various applications in fields such as medical imaging, geophysics, and materials science.
The amplification and measurement capabilities of high-temperature SQUIDs are comparable to those of low-temperature SQUIDs. The device consists of a superconducting resonator that is coupled to a readout circuit. The resonator is designed to respond to changes in the magnetic flux, allowing the SQUID to detect tiny changes in the magnetic field. This high sensitivity makes high-temperature SQUIDs ideal for applications requiring precise magnetic field measurements.
One of the key challenges in the design of high-temperature SQUIDs is minimizing the noise. The noise arises from various sources, including thermal fluctuations and electronic noise. To improve the signal-to-noise ratio, advanced noise reduction techniques are employed, such as cooling the device and optimizing the circuit design.
The quantum phase interference in high-temperature SQUIDs is governed by the behavior of superconducting electrons. When a magnetic field interacts with the superconducting material, it induces a phase shift in the electron wave function. This phase shift leads to the characteristic interference pattern observed in SQUID measurements.
Overall, high-temperature SQUIDs offer a promising avenue for sensitive magnetic field detection. Their ability to operate at higher temperatures expands their potential applications and reduces the complexity associated with cryogenic cooling. These devices continue to be an active area of research, with ongoing efforts to improve their sensitivity and performance for diverse scientific and industrial applications.
Applications of SQUIDs
Signal Detection: SQUIDs are widely used as highly sensitive detectors in various scientific fields. Due to their extremely low noise levels, these devices can detect weak signals generated by electrons, such as those produced in magnetic resonance imaging (MRI) machines. The quantum nature of SQUIDs allows for precise measurement and quantization of these signals, making them invaluable tools in medical diagnostics and research.
Magnetic Field Measurement: SQUIDs are also used to measure magnetic fields with exceptional sensitivity. By detecting the tiny changes in the magnetic flux passing through the loops in the SQUID, these devices can accurately measure magnetic fields, even at very low levels. This capability is particularly useful in applications such as geophysics, where SQUIDs can be used to study the Earth’s magnetic field and its variations.
Cryogenic Systems: SQUIDs operate at extremely low temperatures, typically around 4 Kelvin, which is close to absolute zero. This makes them suitable for use in cryogenic systems and experimental setups that require low-temperature environments. SQUIDs can be integrated into cryogenic resonators to study quantum phenomena and explore new frontiers in physics research.
Industrial Measurements: SQUIDs have found applications in various industrial sectors. For example, they can be used to detect and measure small changes in magnetic fields in non-destructive testing, ensuring the quality and integrity of materials and structures. In addition, SQUIDs are used for sensitive magnetic field measurements in semiconductor manufacturing processes, where accurate control and monitoring of magnetic fields are essential for producing high-quality electronic devices.
Astronomy and Astrophysics: SQUIDs have revolutionized the field of astronomy and astrophysics by enabling researchers to study faint magnetic fields in celestial objects. Whether used in ground-based telescopes or space missions, SQUIDs provide the sensitivity required to detect and measure these weak magnetic fields, allowing scientists to gain insights into the formation and evolution of galaxies, stars, and other cosmic structures.
Brain Imaging: SQUIDs play a crucial role in magnetoencephalography (MEG), a non-invasive technique used to map and study the brain’s magnetic fields. By detecting the tiny magnetic fields generated by neuronal activity, MEG using SQUIDs enables researchers to gain insights into brain functions and identify abnormalities related to various neurological disorders.
In summary, SQUIDs have a wide range of applications, thanks to their superconducting properties, high sensitivity, and ability to detect and measure weak magnetic fields. From medical diagnostics to fundamental physics research, these devices continue to drive advancements across various scientific disciplines.
Magnetic Field Measurements
Superconducting Quantum Interference Devices (SQUIDs) are highly sensitive detectors used for measuring magnetic fields. These devices operate based on the principles of quantum mechanics and exploit the quantization of magnetic flux. SQUIDs can detect extremely weak magnetic fields with high sensitivity, making them ideal for a wide range of applications.
The heart of a SQUID is a superconducting loop, which acts as a resonator for the magnetic field. The loop is cooled to a very low cryogenic temperature to maintain its superconducting property. When a magnetic field is applied to the loop, it causes a change in the phase of the superconducting current, resulting in a measurable signal.
To measure the magnetic field, the small signal from the SQUID needs to be amplified. Amplification is necessary because the signal produced by the SQUID is extremely weak, on the order of picoteslas. Various amplification techniques, such as low noise amplifiers, are used to increase the signal strength without introducing excessive noise.
One challenge in magnetic field measurements is interference from external sources. Any external magnetic field can affect the measurement and introduce unwanted noise. To minimize interference, SQUID detectors are typically shielded from external magnetic fields using magnetic shielding materials. The shielded environment helps to reduce the noise level and improve the accuracy of the measurements.
The sensitivity of a SQUID to magnetic fields is determined by various factors, including the design and materials of the device, as well as the temperature. Lower temperatures improve the sensitivity of the device, as they reduce thermal noise. Additionally, the design of the SQUID can also affect its sensitivity, with different geometries optimized for specific applications.
In summary, SQUIDs are powerful devices for magnetic field measurements. Their superconducting properties, coupled with their high sensitivity and low noise characteristics, make them indispensable tools in various fields, including medical imaging, geophysics, and material characterization.
Biomagnetic and Medical Applications
Superconducting Quantum Interference Devices (SQUIDs) are widely used in biomagnetic and medical applications due to their extremely high sensitivity and low noise properties. These devices are capable of detecting extremely small magnetic fields, making them ideal for a variety of medical measurement techniques.
One of the main applications of SQUIDs in the medical field is in the measurement of biomagnetic signals. Biomagnetic signals are the magnetic fields produced by living organisms, such as the human body. SQUIDs can be used to measure these signals with high accuracy and sensitivity, allowing for the detection of various physiological processes.
In addition to biomagnetic signal measurement, SQUIDs are also used in magnetic resonance imaging (MRI) machines. MRI machines use powerful magnetic fields to generate detailed images of the body’s internal structures. SQUIDs are used in these machines to detect the small magnetic signals produced by the body’s tissues, allowing for the creation of high-resolution images.
SQUIDs are also used in the field of magnetoencephalography (MEG), which is a technique used to measure the magnetic fields produced by the brain. The high sensitivity and low noise properties of SQUIDs make them ideal for MEG applications, allowing for the detection of tiny magnetic fields produced by the brain’s electrical activity.
Another application of SQUIDs in the medical field is in the measurement of the magnetic fields generated by the heart. These measurements can provide valuable information about the heart’s electrical activity and can help diagnose various cardiac conditions. SQUIDs are also used in research laboratories for studying the properties of superconducting materials and for exploring new applications of these devices in the medical field.
Quantum Computing and Sensing
Quantum computing and sensing are two closely related fields that leverage the principles of quantum mechanics to enable new forms of computation and highly sensitive measurements. These technologies have the potential to revolutionize both the computing and sensing industries.
Quantum computers utilize the unique properties of quantum systems to perform computations that are exponentially faster than classical computers. One of the fundamental building blocks of quantum computers is the quantum bit, or qubit, which can exist in a superposition of states, allowing for parallel processing. In addition to their computational power, qubits can also be used as highly sensitive sensors.
Quantum sensors, such as magnetic field detectors, rely on the principles of quantum interference for their operation. They are typically based on the measurement of the phase or flux of a quantum system, such as the interference of electron waves in a resonator or the quantization of magnetic flux in a superconducting loop. These measurements are performed at low temperatures, typically in the cryogenic range, to minimize noise and increase sensitivity.
The sensitivity of quantum sensors is greatly enhanced by the use of superconducting quantum interference devices (SQUIDs) for signal amplification. SQUIDs are extremely sensitive detectors of magnetic fields and can be used to measure minute changes in magnetic flux with high precision. They are widely used in various applications, such as in the detection of weak magnetic fields in materials research, biomagnetism, and geophysics.
In quantum computing, the sensitivity of quantum sensors is also crucial for performing accurate measurements and maintaining the coherence of qubits. Noise, or unwanted fluctuations, can degrade the performance of quantum computers and sensors. Therefore, reducing noise and improving sensitivity are key challenges in the development of practical quantum technologies.
In summary, quantum computing and sensing are exciting fields that promise significant advancements in computation and measurement. By harnessing the unique properties of quantum systems, such as superposition and interference, researchers and engineers are working towards building powerful quantum computers and highly sensitive sensors that can revolutionize various industries.
FAQ about topic “Understanding Superconducting Quantum Interference Devices (SQUIDs): A Comprehensive Guide”
What is a superconducting quantum interference device (SQUID)?
A superconducting quantum interference device (SQUID) is a highly sensitive magnetometer that uses superconducting materials to measure extremely small magnetic fields. It operates based on the principle of quantum interference.
How does a SQUID work?
A SQUID works by utilizing the Josephson effect, which is the phenomenon of supercurrent flowing through a thin barrier between two superconductors. When a magnetic field passes through the SQUID, it induces a change in the phase of the supercurrent, which can be measured as a voltage across the device. This voltage can be used to determine the strength and direction of the magnetic field.
What are the main applications of SQUIDs?
SQUIDs have a wide range of applications. They are used in scientific research to study the magnetic properties of materials, in medical imaging to detect brain and heart activity, in geophysics to measure the Earth’s magnetic fields, and in industry for quality control of magnetic materials, among other uses.
What are the advantages of using SQUIDs?
SQUIDs offer several advantages over other types of magnetometers. They have extremely high sensitivity, allowing them to detect very small magnetic fields. They also have a wide dynamic range, meaning they can measure both weak and strong magnetic fields. Additionally, SQUIDs can operate at very low temperatures, which is necessary for their superconducting properties.
Are there any limitations to using SQUIDs?
While SQUIDs are highly sensitive, they are also very susceptible to external noise, such as vibrations and electromagnetic interference. This can affect the accuracy of the measurements and require careful shielding and filtering. Additionally, SQUIDs require cooling to cryogenic temperatures, which can be expensive and technically challenging.
