Understanding the Function of a Motherboard Heat Sink

dissipate heat, heat sink, heat transfer, surface area

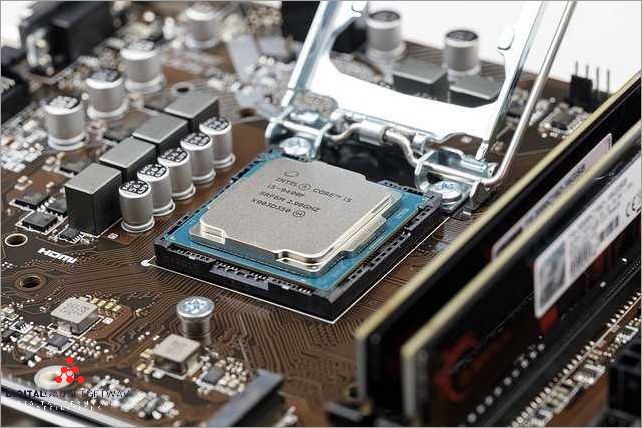

What Is a Motherboard Heat Sink and How Does It Work?

A motherboard heat sink is an essential component in a computer system that helps to dissipate heat generated by the processor and other critical components. It is typically made of aluminum or copper, which have excellent heat-sinking properties. The heat sink is designed to provide a large surface area for heat transfer, allowing the heat to spread out and dissipate efficiently.

The heat sink is usually attached to the processor or other heat-generating components using a thermal interface material, such as a thermal paste or thermal pad. This material ensures proper thermal contact between the heat sink and the component, maximizing heat transfer. It fills in any microscopic imperfections in the surfaces, improving conductivity.

In addition to the heat sink, many motherboards also feature a heat spreader or backplate. This is a metal plate that is attached to the back of the board, providing additional heat-dissipation capabilities. The heat spreader helps to prevent hot spots on the motherboard and ensures that the heat is evenly distributed across the surface.

To further enhance cooling, some motherboards may also incorporate heatpipes. These are sealed copper tubes filled with a heat-conductive fluid. The heat from the processor is transferred to the heatpipes, which then carry it to the heat sink. The heatpipes help to transport the heat more efficiently and prevent overheating.

Proper ventilation is crucial for the heat sink to work effectively. Many computer cases are designed with fans and airflow channels to ensure that cool air is directed towards the heat sink and hot air is expelled. This promotes efficient heat dissipation and helps to maintain a stable temperature for the components.

In conclusion, a motherboard heat sink plays a vital role in the cooling system of a computer. It absorbs and disperses the heat generated by the processor, preventing it from reaching critical temperatures that could lead to component failure. By using aluminum or copper for the heat sink, along with thermal interface materials and heatpipes, a motherboard can effectively manage heat and ensure the smooth operation of a computer system.

Overview of Motherboard Heat Sink

A motherboard heat sink is an essential component in a computer system that helps to dissipate thermal energy generated by the motherboard’s electronic components. It is typically made of aluminum, which is an excellent conductor of heat. The heat sink is designed to draw the heat away from the motherboard and transfer it to the surrounding environment, preventing the motherboard from overheating.

The heat sink is generally attached to the motherboard using a backplate, which provides stability and ensures proper alignment. The heat sink itself consists of a base, which comes into direct contact with the heat-producing electronic components, and a series of fins or blades that increase the surface area for better heat dissipation.

In some cases, heat pipes are integrated into the heat sink design to further enhance the cooling efficiency. Heat pipes are copper tubes filled with a liquid that vaporizes when heated and condenses when cooled. This process helps to transfer heat away from the heat source more efficiently, resulting in better overall cooling performance.

In addition to the heat sink, a cooling fan is often used to further assist in heat dissipation. The fan helps to increase the airflow around the heat sink, speeding up the heat transfer process. The fan is typically mounted directly onto the heat sink, ensuring that the airflow is directed towards the fins for maximum cooling effect.

To improve the overall heat-sinking capability, a thermal compound is applied between the heat sink and the electronic components. This compound fills in any small gaps or imperfections, ensuring optimal thermal contact and minimizing heat resistance. It helps to maximize the transfer of heat from the motherboard to the heat sink, thereby improving cooling efficiency.

In some cases, heat spreaders may also be used on the motherboard. These are typically metal plates that are placed over the electronic components to help distribute the heat more evenly. The heat spreader absorbs the heat from the components and transfers it to the heat sink, facilitating better heat dissipation.

Overall, the motherboard heat sink, along with other cooling components, plays a crucial role in maintaining optimal operating temperatures for the computer system. Proper ventilation and efficient heat dissipation are essential for preventing overheating and ensuring the longevity and reliability of the motherboard.

Definition and Purpose

A motherboard heat sink, also known as a heat-sink, is a device that helps dissipate heat produced by components on a motherboard, such as the CPU (central processing unit) and GPU (graphics processing unit). It is an essential part of the cooling system of a computer and plays a vital role in maintaining optimal temperatures for the components.

The purpose of a heat-sink is to absorb and transfer heat away from the components to prevent overheating, which can lead to performance issues or even permanent damage. The heat-sink typically consists of a metal component, usually made of aluminum or copper, which is in direct contact with the component producing heat.

One common type of heat sink design includes a fan, often referred to as a heat-sink fan or simply a fan. The fan helps to increase air circulation around the heat-sink and speeds up the cooling process. The fan blades rotating at high speeds draw in cooler air from the surrounding environment and blow it across the heat-sink, aiding in heat dissipation.

In some cases, a heat-sink may also have a backplate, which provides additional stability and support to the heat-sink. The backplate is typically made of a sturdy material, such as metal, and helps to ensure that the heat-sink remains securely attached to the motherboard.

To maximize the heat dissipation efficiency, a thermal compound, often referred to as a heat-sink compound or thermal paste, is applied between the heat-sink and the component. This compound helps to fill in any microscopic gaps and air pockets, allowing for better thermal conductivity between the two surfaces and improving heat transfer.

The design of a heat-sink also takes into account factors such as ventilation and airflow within the computer system. It may feature fins or ridges on its surface, which increase the surface area and promote better airflow. Some high-performance heat-sinks also incorporate heatpipes, which are hollow tubes filled with a liquid that absorbs and transfers heat efficiently.

In conclusion, a motherboard heat-sink is an integral part of a computer’s cooling system. Its purpose is to absorb and dissipate heat, ensuring that the components, particularly the CPU and GPU, operate at optimal temperatures. By using materials like aluminum or copper, incorporating fans, thermal compounds, and optimizing airflow, heat-sinks help prevent overheating and ensure the longevity and performance of a computer system.

Importance of Heat Dissipation

Heat dissipation is a crucial aspect of maintaining the optimal performance and longevity of electronic components, particularly for a motherboard. The motherboard serves as the backbone of a computer system, connecting various components, such as the CPU, RAM, and storage devices. The continuous operation of these components generates a significant amount of heat that needs to be effectively removed to prevent overheating.

A key component in the heat dissipation system of a motherboard is the heat sink. The main purpose of a heat sink is to absorb and disperse the heat generated by the components, preventing them from reaching critical temperatures. Heat sinks are typically made of aluminum or copper, both of which have excellent thermal conductivity properties.

The heat sink is usually mounted on top of the CPU, which is one of the main heat sources on a motherboard. This allows the heat to be transferred from the CPU to the heat sink. To enhance the heat transfer, a thermal compound is applied between the CPU and the heat sink. The compound fills in any gaps and improves the contact between the two surfaces, allowing for better heat conductivity.

In addition to the heat sink, some motherboards also incorporate a heatpipe system for more efficient heat dissipation. Heatpipes are hollow tubes filled with a liquid that vaporizes at high temperatures. The vapor then travels to a cooler area and condenses back into liquid, releasing the heat in the process. This allows the heat to be spread and dissipated more evenly across the heat sink.

Proper ventilation and airflow within the computer case also play a vital role in heat dissipation. A well-designed case should have adequate cooling fans and vents to ensure a constant flow of fresh air and the removal of hot air. Additionally, some motherboards feature a backplate, which helps to reinforce the cooling system by providing additional support and stability to the heat sink.

Overall, effective heat dissipation is essential for maintaining the stability and performance of a motherboard. Without proper cooling, the components on the motherboard can overheat, leading to reduced lifespan and potential malfunctions. Adequate heat-sinking and ventilation solutions should be considered when building or upgrading a computer system to ensure optimal performance and prevent any issues arising from thermal management.

How Does a Motherboard Heat Sink Work?

A motherboard heat sink is an essential component for regulating the temperature of your computer’s central processing unit (CPU). The heat sink is typically made of aluminum or copper and is designed to absorb and dissipate heat generated by the CPU. It is attached to the CPU using a thermal compound to establish efficient heat transfer.

The heat sink works in conjunction with a fan to facilitate the cooling process. The fan blows cool air onto the heat sink, which helps to dissipate the heat more effectively. The heat sink itself has many fins or blades, which increase its surface area to improve heat dissipation. The increased surface area allows the heat to spread out along the fins, allowing it to dissipate into the air more efficiently.

To further enhance the cooling capabilities, some heat sinks also incorporate heatpipes. Heatpipes are hollow tubes filled with a coolant, typically water or a refrigerant. These heatpipes are situated within the heat sink and help to transport heat away from the CPU and towards the fins, where it can be dissipated more effectively.

The heat sink is secured to the motherboard using a backplate and mounting brackets. These ensure that the heat sink remains in contact with the CPU firmly, maximizing heat transfer. Without a properly functioning heat sink, the CPU can overheat, leading to performance issues or even hardware damage.

If the heat sink becomes damaged or defective, it may not be able to dissipate heat efficiently, resulting in overheating. This can cause the CPU to throttle its performance to reduce temperature or even shut down to prevent damage. Keeping the heat sink clean and free of dust is important to maintain optimal cooling performance.

In summary, a motherboard heat sink plays a crucial role in cooling the CPU by absorbing and dissipating heat. It works in tandem with a fan, using the principles of heat transfer and increased surface area to keep the CPU temperature within safe limits. Proper installation and maintenance of the heat sink are essential for optimal cooling performance and to prevent overheating.

Heat Transfer Mechanism

Heat transfer in a motherboard heat sink is crucial for maintaining the temperature of various components on the motherboard. The heat transfer mechanism relies on several key elements such as heat-sinking, heatpipe, sink, backplate, and thermal compound.

The heat-sinking process involves the transfer of heat from the electronic components to the heat sink. Typically made of aluminum or copper, the heat sink is designed with many fins or blades to increase the surface area for heat dissipation. These fins or blades help in efficient heat transfer by increasing the contact area with the surrounding air.

READ MORE  C# try catch finally: Understanding Exception Handling in C# Programming

Heatpipes are another important component that aid in heat transfer. These pipes are made of a sealed copper tube, filled with a liquid coolant or refrigerant. They work by absorbing the heat from the electronic components and transferring it to the heat sink, where it can be dissipated into the surrounding environment.

Furthermore, the use of a backplate ensures proper mounting and stability of the heat sink. The backplate sits on the opposite side of the motherboard and provides additional support, preventing any movement or damage to the heat sink during operation.

To improve heat transfer effectiveness, thermal compound is applied between the electronic component and the heat sink. This compound helps fill in any gaps or imperfections on the surface and enhances the thermal conductivity, allowing for better heat transfer.

In some cases, active cooling mechanisms like fans can be incorporated into the heat sink design. These fans assist in the cooling process by increasing the airflow around the heat sink and expediting heat dissipation. The combination of a heat sink with a fan is especially useful in preventing overheating of the motherboard.

In conclusion, the heat transfer mechanism in a motherboard heat sink involves the use of various components such as heatpipes, sinks, backplates, thermal compound, and sometimes fans. These elements work together to dissipate heat from the electronic components on the motherboard, preventing overheating and ensuring proper functioning of the system.

Conduction

Conduction is one of the primary methods by which heat is transferred from the motherboard to the heat sink. A heat sink is a component that is typically made of aluminum or copper, and its primary function is to absorb and dissipate heat. The heat sink is designed with fins or blades that increase its surface area, allowing for more efficient cooling.

One common type of heat sink is a passive heat sink, which relies solely on conduction to transfer heat away from the motherboard. These heat sinks do not have a fan and instead use the natural airflow within the computer case to cool the components.

Another type of heat sink is an active heat sink, which includes a fan. The fan helps to increase airflow and improve cooling performance. The fan blows air over the fins or blades of the heat sink, speeding up the conduction process and reducing the temperature of the motherboard.

In some cases, a heat sink may also incorporate other cooling technologies, such as a heatpipe or a thermal spreader. A heatpipe is a sealed tube that contains a heat-absorbing compound, such as water or a refrigerant. The heatpipe transfers heat from the motherboard to the finned portion of the heat sink, where it can be dissipated more effectively. A thermal spreader, on the other hand, is a flat plate that helps to evenly distribute heat across the surface of the heat sink.

Conduction is crucial for preventing overheating and ensuring the proper functioning of the motherboard. Without an effective heat sink, the temperature of the motherboard can rise to dangerous levels, resulting in decreased performance and potentially causing damage to the components. To optimize conduction, it is important to ensure proper ventilation within the computer case, as well as to use a heat sink that is compatible with the motherboard and correctly installed, with a backplate to provide additional support.

Convection

One of the main methods of heat transfer that a motherboard heat sink utilizes is convection. Convection is the process of transferring heat through the movement of fluids, such as air or liquid. In the case of a motherboard heat sink, convection is primarily achieved through the use of fans or other forms of forced air circulation.

The heat generated by the motherboard components, such as the CPU or GPU, is conducted through the heat-sinks and then transferred to the surrounding air. This is typically facilitated by a combination of heatpipes and a baseplate, which are made from materials such as copper or aluminum. The heatpipes are responsible for conducting the heat away from the components, while the baseplate helps to spread the heat over a larger surface area.

Once the heat is spread over the heat-sink’s surface, the fans or other ventilation mechanisms blow air over the fins or blades of the heat-sink. This airflow helps to remove the heat from the heat-sink and dissipate it into the surrounding environment. The fins or blades of the heat-sink are designed to maximize the surface area available for heat transfer, allowing for efficient cooling.

It is important to note that proper ventilation and airflow are essential for effective heat dissipation. Insufficient airflow or blockages in the ventilation system can lead to overheating of the motherboard components, which can result in reduced performance or even component failure. Additionally, a defective or improperly installed heat-sink can also contribute to inadequate cooling and increased temperatures.

To enhance the thermal conductivity between the heat-sink and the motherboard components, a thermal compound is often applied. This compound fills in microscopic imperfections and air gaps, allowing for better heat transfer. By improving the contact between the heat-sink and the components, the thermal compound helps to further reduce the temperature of the motherboard and prevent overheating.

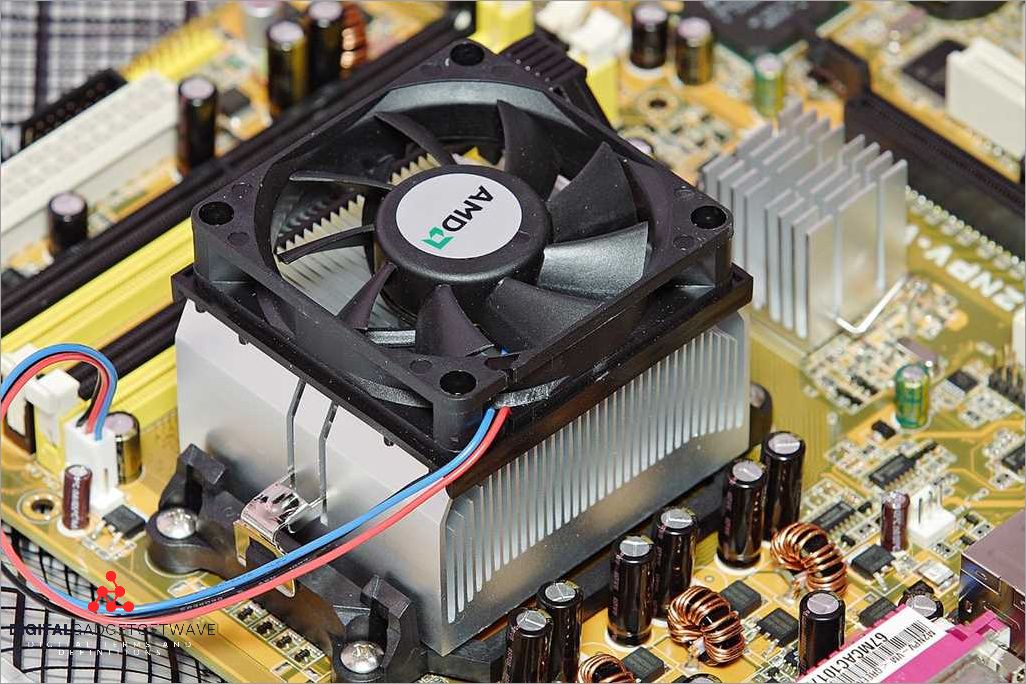

Components of a Heat Sink

Components of a Heat Sink

A heat sink is an essential component of a motherboard’s cooling system. It helps dissipate the heat generated by the computer’s components, such as the CPU and GPU, and prevents them from overheating.

The main components of a heat sink are: backplate: This is the base of the heat sink that is attached to the motherboard. It provides stability and support for the rest of the heat sink.

Heat sink: The heat sink itself is usually made of aluminum or copper. These metals have excellent heat-sinking properties and help absorb and distribute the heat generated by the components. They have a large surface area with fins or ridges that increase the heat dissipation.

Fan: The heat sink is often paired with a fan to enhance the cooling process. The fan blows air across the heat sink, increasing airflow and speeding up the heat transfer process. The fan helps remove heat from the heat sink and exhaust it out of the computer case.

Thermal compound: A heat sink is usually placed directly on top of the CPU or GPU. A thin layer of thermal compound is applied between the heat sink and the component to improve heat transfer. The thermal compound fills in any microscopic gaps between the two surfaces, ensuring better conductivity and reducing the chance of overheating.

Heat spreader: Some heat sinks may also come with a heat spreader, which is a metal plate that sits between the CPU or GPU and the heat sink. The heat spreader helps to spread the heat evenly across the surface of the heat sink, improving overall cooling efficiency.

Ventilation: Proper ventilation is crucial for the heat sink to work effectively. The computer case should have sufficient airflow to allow the heat to dissipate from the heat sink. This can be achieved through the use of case fans, vents, and proper cable management to prevent obstruction of the airflow.

By combining these components, a heat sink effectively cools down the computer’s components, preventing overheating and ensuring optimal performance and longevity of the motherboard.

Base Plate

The base plate is an essential component of a motherboard heat sink. It is a flat, sturdy piece of material that serves as the foundation for the heat sink. The base plate is typically made of aluminum or copper, which are excellent thermal conductors. These materials help to quickly transfer heat away from the CPU or other components to prevent overheating.

The base plate of a heat sink is typically in direct contact with the CPU or other heat-generating components on the motherboard. It is responsible for absorbing the heat and distributing it evenly across the surface of the heat sink. This allows for efficient heat dissipation and prevents hot spots from forming.

In some cases, the base plate may be equipped with heat pipes. Heat pipes are hollow copper tubes filled with a thermal compound. They help to further enhance heat transfer by rapidly transporting heat from the base plate to other parts of the heat sink, such as the fins.

The base plate is often attached to the CPU or motherboard using a thermal compound, which improves heat conductivity between the components. Additionally, a backplate can be used to provide extra stability and support to the heat sink. The backplate is typically made of metal and is mounted on the backside of the motherboard, helping to evenly distribute pressure and prevent any damage to the motherboard components.

Overall, the base plate plays a crucial role in the heat sinking process by efficiently transferring heat away from the CPU or other components and distributing it across the heat sink. By maintaining a low temperature, it ensures the proper functioning and longevity of the motherboard and the overall cooling system.

Fins

The “fins” are one of the most important components of a motherboard heat sink. They are responsible for increasing the surface area of the heat sink, allowing for better heat dissipation. The fins are usually made of aluminum or copper, which are known for their good heat-sinking properties.

The heat generated by the motherboard components, such as the CPU, is transferred to the heat sink through a combination of direct contact and a thermal compound. The heat is then spread across the heat sink’s surface and absorbed by the fins.

The design of the fins is crucial for efficient cooling. They are usually thin and have a large number of small holes or channels to maximize the heat dissipation. The fins are arranged in a grid-like pattern and are often curved or angled to increase the airflow through the heat sink.

The airflow can be provided by a fan, which is mounted on top of the heat sink. The fan blows air over the fins, helping to remove the heat and lower the temperature of the motherboard. The combination of the heat sink and fan is commonly referred to as a “heat-sink fan” or “heat-sink assembly.”

In some cases, a heatpipe is used in conjunction with the heat sink to further enhance the cooling performance. A heatpipe is a sealed copper tube that contains a small amount of fluid. When the heatpipe is heated, the fluid evaporates and moves to the cooler areas, where it condenses and releases the heat. This allows for more efficient heat transfer away from the motherboard.

In addition to the fins and heatpipe, a heat spreader and backplate may also be part of the heat-sink assembly. The heat spreader is a metal plate that sits between the motherboard component and the heat sink, helping to evenly distribute the heat. The backplate, on the other hand, provides additional support and stability to the heat-sink assembly.

If the heat sink or any of its components is defective or inadequate for the cooling requirements of the motherboard, it can lead to overheating. This can cause instability, reduced performance, and even permanent damage to the motherboard components. Therefore, it is important to ensure that the heat sink is properly installed and functioning correctly for optimal cooling.

Heat Pipes

Heat pipes are an essential component of a motherboard heat sink, providing efficient heat transfer away from the heat source. These pipes are usually made of copper, which is a highly conductive material that helps to spread heat across its surface. The copper pipes are typically in direct contact with the CPU or other hot components on the motherboard, absorbing the heat and carrying it away.

Heat pipes work on the principle of phase change. Inside the heat pipe, there is a small amount of volatile liquid, such as water or alcohol. When the heat pipe is heated, the liquid evaporates and turns into a vapor, absorbing a large amount of heat in the process. This vapor then moves to another area of the heat pipe, where it condenses back into a liquid, releasing the heat. The liquid then flows back to the heat source through capillary action, ready to absorb more heat.

READ MORE  Understanding Logical Access Control for Enhanced Security

The heat pipes in a motherboard heat sink are usually connected to a large aluminum fin stack. The fins provide a larger surface area for heat dissipation, allowing more efficient cooling. Additionally, a fan is often attached to the heat sink to further enhance the airflow and increase the heat transfer.

In some cases, the heat pipes can be damaged or defective, resulting in inefficient heat transfer and potential overheating. It is important to choose high-quality heat pipes and ensure proper installation to avoid these issues. It is also recommended to use thermal compounds between the heat sink and the heat source, as it helps to improve the heat transfer.

Heat pipes, along with other heat-sinking components like backplates and thermal spreaders, play a crucial role in maintaining the temperature of a motherboard and preventing overheating. They are designed to efficiently dissipate the heat generated by the CPU and other hot components, ensuring the stable and reliable operation of the computer system.

Installation and Maintenance

Proper installation and maintenance of a motherboard heat sink are crucial for ensuring optimal heat dissipation and preventing overheating of the components. Here are some important points to consider:

  1. Clean the surface: Before installing a heat sink, make sure to clean the surface of the motherboard or the CPU with suitable cleaning solutions or wipes. This will remove any dust, thermal compound residue, or other contaminants that can hinder heat transfer.
  2. Apply thermal compound: Apply a thin layer of thermal compound on the surface of the CPU. This helps in filling microscopic gaps between the CPU and the heat sink, improving heat transfer. Use a non-conductive compound made of materials like silicone or ceramic.
  3. Choose the right heat sink: Select a heat sink that is compatible with your motherboard and CPU socket. Consider factors like the size, material, and heat dissipation capabilities of the heat sink. Common materials used for heat sinks include copper and aluminum, with copper being more efficient for heat transfer.
  4. Secure the heat sink: Install the heat sink firmly onto the CPU using the provided backplate and mounting hardware. Ensure that it is properly aligned and making good contact with the CPU surface. This allows for efficient heat transfer and prevents the heat sink from becoming loose due to vibrations.
  5. Check for proper ventilation: Ensure that your PC case has adequate ventilation to allow for proper air circulation. This can include the use of case fans, ensuring that the heat sink has sufficient clearance for air to flow, and managing cable clutter to avoid obstructing airflow.
  6. Monitor temperature: Regularly monitor the temperature of your CPU using temperature monitoring software. This will help you identify any potential overheating issues and take appropriate measures, such as adjusting fan speeds or reapplying thermal compound.
  7. Keep the heat sink clean: Over time, dust and debris can accumulate on the heat sink, reducing its cooling efficiency. Clean the heat sink periodically using compressed air or a soft brush to remove any buildup. However, avoid using liquids or abrasive materials that can damage the heat sink.
  8. Replace defective components: If you notice any abnormalities like unusual noises, sudden temperature spikes, or poor cooling performance, inspect the heat sink and its components. Replace any defective parts, such as a malfunctioning fan or a damaged heatpipe, to ensure proper heat dissipation.

By following these installation and maintenance practices, you can ensure that your motherboard heat sink operates efficiently, keeping your system cool and preventing damage from overheating.

Proper Installation Techniques

Proper installation techniques are crucial when it comes to effectively heat-sinking and cooling your motherboard. The heat sink is a crucial component that helps dissipate heat generated by the motherboard and other components such as the processor and graphics card. Here are some important techniques to follow:

  • Ensure proper contact: It is important to ensure that the heat sink is properly in contact with the heat-producing component, such as the processor. This allows for efficient transfer of heat from the component to the heat sink.
  • Use heat-conductive materials: Heat sinks are typically made of materials such as aluminum or copper, which are good conductors of heat. These materials help transfer heat away from the component to the heat sink.
  • Apply thermal compound: Thermal compound is a substance that helps improve the thermal conductivity between the heat sink and the component. It should be applied in a thin layer to ensure optimal heat transfer.
  • Securely attach the heat sink: A heat sink should be securely attached to the component it is cooling. This can be done using mounting brackets, screws, or clips. Properly securing the heat sink prevents it from becoming loose or falling off, ensuring optimal cooling performance.
  • Consider additional cooling solutions: Depending on the heat-producing components and the level of heat generated, additional cooling solutions may be necessary. These can include fans, heatpipes, or even liquid cooling systems. These solutions help enhance the heat-sinking and cooling capabilities of the motherboard.
  • Ensure proper ventilation: Proper ventilation around the heat sink and the motherboard is important to prevent overheating. This can be achieved by ensuring that the computer case has sufficient airflow and that any obstructions, such as dust or debris, are cleaned regularly.
  • Inspect for defects: Before installation, it is important to inspect the heat sink for any visible defects or damages. This includes checking for bent fins, loose blades, or any signs of corrosion. Using a defective heat sink can negatively impact its cooling performance.
  • Consider a backplate: Some heat sinks come with a backplate that helps improve stability and prevent any flexing or bending. This can be particularly useful for heavy heat sinks or when using a larger heat sink that covers a larger area of the motherboard.

By following these proper installation techniques, you can ensure optimal heat-sinking and cooling performance for your motherboard, preventing overheating and maintaining a stable temperature for your components.

Cleaning and Maintenance Tips

The cooling system and heat-sinking components of a motherboard, such as heat-sinks and the heat-sink spreader, play a crucial role in regulating the temperature of the motherboard. To ensure its optimal performance, regular cleaning and maintenance are necessary. Here are some tips:

  1. Clean the heat-sinks: Over time, dust and debris can accumulate on the heat-sinks, reducing their efficiency. Use compressed air or a soft brush to remove the buildup. Ensure that the heat-sinks are completely clean to promote effective heat dissipation.
  2. Check the backplate: The backplate of the heat-sink serves as a support and helps in maintaining proper alignment. Make sure it is securely attached to the motherboard and not loose or damaged.
  3. Inspect the fan: The fan helps in cooling the heat-sink by dissipating heat. Check if the fan is functioning properly and clear any obstructions that may hinder its rotation.
  4. Apply thermal compound: The thermal compound helps in increasing the conductivity between the heat-sink and the motherboard. If the motherboard is overheating, it may be due to a defective or inadequate application of thermal compound. Reapply a thin layer of thermal compound to ensure efficient heat transfer.
  5. Monitor the temperature: Regularly monitor the temperature of the motherboard using appropriate software. If the temperature is consistently high, consider improving the ventilation in the computer case.
  6. Consider upgrading the heat-sink: If the current heat-sink is not sufficient to handle the heat generated by the motherboard, consider upgrading to a more advanced heat-sink with features like heatpipes and larger surface area. This can help in better heat dissipation and prevent overheating.

Remember, proper cleaning and maintenance of the motherboard’s heat-sink and cooling system are essential for maintaining its longevity and preventing overheating issues. By following these tips, you can ensure that your motherboard operates at optimal temperatures and provides reliable performance.

Types of Motherboard Heat Sinks

There are several different types of heat sinks that are commonly used on motherboards to dissipate heat and prevent overheating.

1. Passive heat sinks: These heat sinks do not have any fans and rely solely on the natural convection process to cool down the motherboard. They are usually made of aluminum or copper and are attached directly to the motherboard using thermal compounds.

2. Active heat sinks: These heat sinks have a built-in fan or fans that actively blow air over the heat sink to increase the cooling efficiency. They are often used in high-performance systems or in situations where passive cooling alone is insufficient.

3. Heat pipe heat sinks: Heat pipe heat sinks consist of hollow tubes filled with a thermal liquid that effectively transfers heat away from the motherboard. The tubes are in direct contact with the hot components on the motherboard, and the heat is transported to the heat sink where it is dissipated.

4. Blade heat sinks: Blade heat sinks have a thin design with multiple fins or blades that increase the surface area for heat dissipation. They are often used in compact systems where space is limited but effective cooling is still required.

5. Backplate heat sinks: Backplate heat sinks are designed to be mounted on the backside of the motherboard. They provide additional cooling for specific components or areas on the motherboard that generate a lot of heat, such as the VRM (Voltage Regulator Module) or the chipset.

It is important to choose the right type of heat sink for your motherboard to ensure optimal cooling and prevent any potential damage caused by overheating. Additionally, proper ventilation and the application of thermal compounds between the heat sink and the components are crucial for effective heat dissipation.

Active Heat Sinks

An active heat sink is a type of heat sink that utilizes a fan or other active cooling mechanism to enhance heat dissipation from the motherboard. Unlike passive heat sinks, which rely solely on convection and conduction to transfer heat away from the components, active heat sinks actively circulate air to remove the heat more effectively.

The main component of an active heat sink is a fan, which is positioned on top of the heat sink to provide extra ventilation. The fan blows air onto the heat sink, increasing airflow and improving the cooling performance. The fan can be either a standard case fan or a special fan designed specifically for heat-sinking applications.

In addition to the fan, active heat sinks may also incorporate other components such as heatpipes and backplates. Heatpipes are hollow tubes that transfer heat from the source to the heat sink. This allows for better heat distribution and dissipation across the entire surface of the heat sink.

The backplate, on the other hand, provides additional support and stability to the heat sink. It is usually made of a sturdy material such as aluminum or copper and is attached to the back of the motherboard. The backplate helps to distribute the weight of the heat sink evenly and prevents any potential damage to the motherboard.

To enhance the heat-sinking capabilities of the active heat sink, a layer of thermal compound is often applied between the heat sink and the component it is cooling. The thermal compound improves heat transfer by filling in any microscopic imperfections and gaps between the two surfaces, minimizing thermal resistance.

Active heat sinks are particularly useful in situations where a passive heat sink alone may not be sufficient to prevent overheating. For example, if the motherboard is in an environment with limited airflow or if the components being cooled are particularly high-powered or defective, an active heat sink can provide the necessary cooling to keep the temperature under control.

In summary, active heat sinks combine the advantages of passive heat sinks with additional cooling mechanisms such as fans, heatpipes, and backplates. By actively circulating air and improving heat transfer, these heat sinks offer enhanced cooling performance, making them ideal for preventing overheating in demanding or challenging conditions.

READ MORE  Data Custodian vs Data Steward: Understanding the Key Differences

Fan-assisted Heat Sinks

In order to provide even better cooling for a motherboard, fan-assisted heat sinks are often used. These heat sinks combine the benefits of a heat sink with the additional cooling power of a fan.

A fan-assisted heat sink consists of a metal heat sink with a fan mounted on top or alongside it. The heat sink is made from materials like aluminum or copper that have high thermal conductivity, allowing them to efficiently absorb and dissipate heat.

The fan in a fan-assisted heat sink helps to increase the airflow over the heat sink, which enhances the cooling process. The fan blows cool air onto the heat sink and helps to remove the heat generated by the components on the motherboard. The airflow created by the fan helps to disperse the heat more effectively, preventing overheating and maintaining a stable temperature for the motherboard.

The design of fan-assisted heat sinks varies, but many include heat pipes. Heat pipes are tubes filled with a thermal compound or liquid that helps to transfer heat away from the components and into the heat sink. The heat pipes improve heat transfer efficiency and help to spread the heat evenly across the heat sink.

Fan-assisted heat sinks normally have fins or blades to increase the surface area of the heat sink. This allows for greater contact with the moving air and improves the heat dissipation process. The design of the fins or blades is often optimized to maximize airflow and minimize noise generated by the fan.

To install a fan-assisted heat sink on a motherboard, a backplate is typically used to hold the heat sink securely in place. The backplate provides additional stability and prevents the heat sink from becoming loose or falling off due to vibrations or movement. Proper installation is important to ensure that the heat sink functions optimally and effectively cools the components on the motherboard.

Overall, fan-assisted heat sinks are a popular choice for cooling motherboards. They combine the benefits of a heat sink with the additional cooling power of a fan to prevent overheating and maintain stable temperatures. Their design, including the use of heat pipes and fins, helps to efficiently dissipate heat and ensure the reliable operation of a motherboard.

Water-cooled Heat Sinks

In addition to traditional air-cooled heat sinks, another option for cooling the motherboard is water-cooled heat sinks. These heat sinks utilize liquid cooling technology to effectively dissipate heat from the motherboard components.

Water-cooled heat sinks consist of several components, including a copper or aluminum heat-spreader plate, a heatpipe, and a water block. The heat-spreader plate is mounted on top of the motherboard’s main heat-generating components, such as the CPU and graphics card. It helps to spread the heat evenly across the surface of the heat sink.

The heatpipe, which is typically made of copper, acts as a conduit for transferring the heat away from the heat-spreader plate. It uses the principle of phase change to efficiently move the thermal energy. As the heat is absorbed by the heatpipe, the liquid inside it turns into vapor and rises to the cooler end of the system, where it condenses back into liquid form and releases the heat.

The water block is a component of the liquid cooling system that comes into direct contact with the heatpipe. It is responsible for transferring the heat from the heatpipe to the water, which then carries it away from the motherboard. The water block is equipped with small channels or fins that increase the surface area for better heat dissipation.

Water-cooled heat sinks require a dedicated water cooling system, which usually consists of a pump, reservoir, radiator, and fans. The pump circulates the water through the system, while the radiator and fans help to dissipate the heat from the water. This continuous flow of water ensures effective cooling of the motherboard, preventing overheating and potential damage to the components.

One advantage of water-cooled heat sinks is their ability to handle higher heat loads compared to air-cooled heat sinks. They are also generally quieter, as the fans used in air cooling can often produce excessive noise. However, water-cooled heat sinks are more complex to install and require regular maintenance to prevent issues such as leaks or defective components.

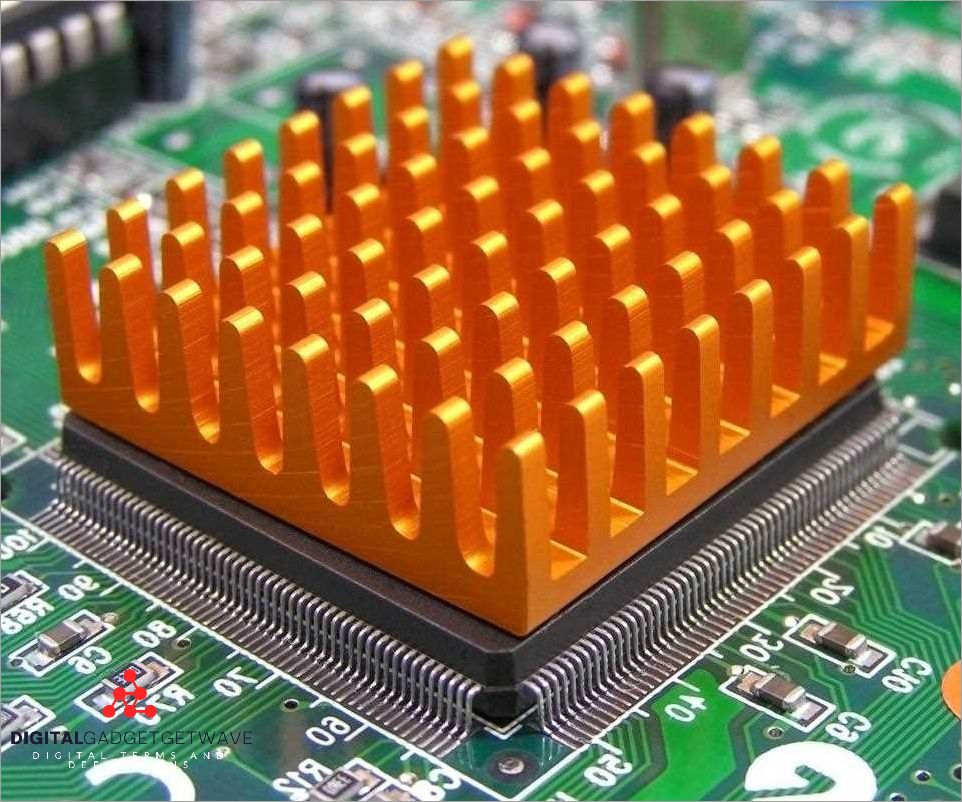

Passive Heat Sinks

Passive Heat Sinks

A passive heat sink is a cooling device that is designed to dissipate heat from a motherboard without the use of a fan. It relies on passive cooling methods such as natural convection, radiation, and heat conduction to transfer heat away from the motherboard.

Passive heat sinks are typically made of materials such as aluminum or copper, which have high thermal conductivity. The heat sink is attached to the motherboard over the heat-generating components, such as the CPU or GPU, using a thermal compound. This compound helps to improve the thermal contact between the heat sink and the component, allowing for better heat transfer.

The design of a passive heat sink plays a crucial role in its ability to effectively dissipate heat. Heat sinks often have fins or blades which increase the surface area available for heat dissipation. These fins allow for better airflow and ventilation, which helps to cool the heat sink and reduce the temperature of the components it is attached to.

In some cases, passive heat sinks may also incorporate other cooling technologies such as heat pipes. Heat pipes are hollow, sealed tubes that contain a small amount of fluid and use the principle of phase change to transfer heat. They can greatly improve the heat-sinking capabilities of a passive heat sink by conducting heat from the hot component to the cooler areas of the heat sink.

Passive heat sinks are typically used in situations where the heat generating components are not prone to overheating or when a system has sufficient ventilation to dissipate the heat effectively. However, they may not be suitable for high-performance systems or in cases where the heat load is particularly high. In these situations, active cooling methods such as fans or liquid cooling may be necessary.

Aluminum Heat Sinks

Aluminum heat sinks are commonly used in motherboards to dissipate heat generated by electronic components. Heat sinking is a crucial process for preventing overheating and ensuring the optimal performance of the motherboard.

The heat sink is typically made of aluminum due to its excellent thermal conductivity. Aluminum is lightweight, durable, and cost-effective, making it an ideal material for heat sinks. The aluminum heat sink is designed to absorb and transfer heat away from crucial components such as the CPU and GPU.

The heat sink works by increasing the surface area available for heat dissipation. It consists of a series of fins or blades that extend from a base or plate. The ridges and grooves on the surface of the heat sink increase its efficiency in dissipating heat. The heat generated by the components is transferred to the heat sink through a thermal compound, which fills any gaps between the surfaces.

The backplate of the motherboard is often in direct contact with the heat sink to enhance heat transfer. This ensures that the heat is efficiently drawn away from the components. Additionally, a fan is commonly installed on top of the heat sink to further aid in cooling. The fan blows air over the heat sink, helping to disperse the heat and maintain the temperature at a safe level.

Proper ventilation is crucial for the effective performance of the heat sink. This can be achieved by ensuring that the surrounding area is clear and unobstructed. Good airflow within the computer case is also essential to prevent the heat sink from becoming overwhelmed with heat. Regular cleaning and maintenance of the heat sink and fan can help prevent the accumulation of dust and debris, which can hinder the cooling process.

Although aluminum heat sinks are commonly used, some motherboards may feature heat sinks made of copper. Copper has a higher thermal conductivity than aluminum and can therefore provide superior heat dissipation. However, it is also more expensive and heavier than aluminum, making it less common in consumer-grade motherboards.

Copper Heat Sinks

Copper heat sinks are a popular choice for effectively dissipating heat generated by electronic components. The high thermal conductivity of copper allows for efficient heat transfer, making it an excellent material for heat-sinking applications.

The design of copper heat sinks typically includes a series of fins or blades that increase the surface area for heat dissipation. These fins are often arranged in a radial pattern or in a grid to maximize cooling efficiency. The heat is absorbed by the copper heat sink and then conducted away from the source, reducing the temperature of the electronic component.

In addition to the fins, copper heat sinks may also incorporate other cooling features such as heatpipes or heat spreaders. These components further enhance heat dissipation by transferring the heat to a larger surface area or by utilizing the phase change properties of certain fluids.

Copper heat sinks are often used in combination with a fan for active cooling. The fan helps to improve airflow around the heat sink, enhancing heat dissipation and preventing overheating. This combination of fan and heat sink is commonly found in desktop computers, gaming consoles, and other high-performance electronic devices.

When installing a copper heat sink, it is important to ensure proper thermal contact between the electronic component and the heat sink. This can be achieved by applying a thin layer of thermal compound or paste before attaching the heat sink. The thermal compound fills in any microscopic gaps between the two surfaces, improving heat transfer and reducing the risk of overheating.

To further optimize cooling performance, copper heat sinks may be mounted on a backplate, which helps to evenly distribute the weight and pressure on the electronic component. This ensures a secure fit and minimizes the risk of damage due to uneven pressure.

Overall, copper heat sinks provide efficient heat dissipation and are widely used in various electronic applications. Their high thermal conductivity, combined with the appropriate cooling features, helps to keep electronic components operating at optimal temperatures and reduces the risk of performance degradation or failure due to overheating. Additionally, copper heat sinks are durable and resistant to corrosion, making them a reliable choice for long-term cooling solutions.

FAQ about topic “Understanding the Function of a Motherboard Heat Sink”

What is a motherboard heat sink?

A motherboard heat sink is a device used to cool down the temperature of the central processing unit (CPU) on a computer motherboard. It is usually made of metal and is attached to the CPU using thermal paste.

How does a motherboard heat sink work?

A motherboard heat sink works by utilizing its large surface area to dissipate the heat generated by the CPU. When the CPU heats up, the heat is transferred to the heat sink through the thermal paste. The heat sink then uses its fins to increase its surface area and allow the heat to be carried away by airflow from fans or convection.

Why is a heat sink important for a motherboard?

A heat sink is important for a motherboard because it helps to prevent the CPU from overheating. Overheating can lead to system instability, performance issues, and even permanent damage to the components. The heat sink helps to absorb and disperse the excessive heat, ensuring that the CPU can operate within safe temperature limits.

Do all motherboards come with a heat sink?

No, not all motherboards come with a heat sink. Some lower-end or budget motherboards may not include a heat sink for the CPU. In such cases, it is necessary to purchase and install a separate heat sink or CPU cooler to ensure proper cooling.

What are the different types of heat sinks for motherboards?

There are several types of heat sinks for motherboards, including active heat sinks, passive heat sinks, and liquid cooling systems. Active heat sinks use fans to enhance the airflow and cooling capacity. Passive heat sinks rely on natural convection to dissipate heat without any fans. Liquid cooling systems, on the other hand, use a liquid coolant to transfer heat away from the CPU.

Leave a Comment
