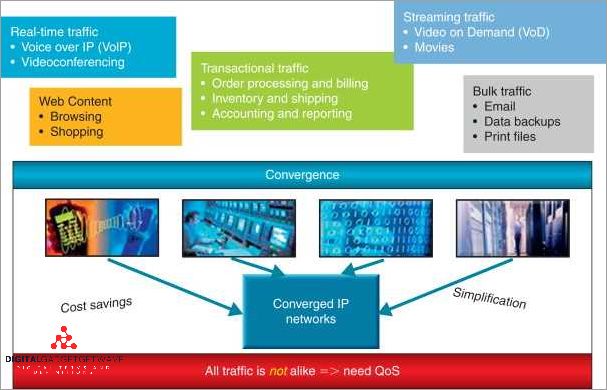

Understanding the Importance of Converged Network Adapters: A Comprehensive Guide

In today’s increasingly virtualized and data-intensive world, the importance of converged network adapters (CNAs) cannot be overstated. As technology advances and the need for high-performance data transmission grows, companies are looking for ways to optimize their network infrastructure. This is where CNAs come in.

CNAs are hardware devices that enable the convergence of multiple data traffic types onto a single network link. They provide a way for organizations to streamline their network connectivity and increase the efficiency of their data transfer. By combining different protocols, such as Ethernet and Fibre Channel, CNAs allow organizations to take advantage of the benefits of both technologies.

One of the key advantages of CNAs is the ability to enhance server performance. By offloading network processing tasks from the server’s CPU to the CNA, organizations can significantly improve their server’s overall performance. This is especially crucial in virtualized environments where multiple virtual machines are running on a single physical server.

Furthermore, CNAs help organizations achieve increased bandwidth and lower latency. The ability to transmit both storage and network data over a single link eliminates the need for separate storage area networks (SANs) and Ethernet networks. This not only reduces infrastructure costs but also simplifies network management and improves overall system performance.

In conclusion, converged network adapters play a vital role in optimizing network infrastructure in today’s virtualized and data-driven world. By enabling the convergence of multiple traffic types onto a single link, CNAs improve server performance, increase bandwidth, lower latency, and simplify network management. As companies continue to seek ways to enhance their data processing capabilities, understanding the importance of CNAs becomes increasingly crucial.

What are Converged Network Adapters?

A Converged Network Adapter (CNA) is a hardware adapter that combines the functionalities of both Ethernet and Storage Area Network (SAN) adapters into a single device, enabling convergence of data and storage networks. It is designed to enhance the performance and efficiency of a network infrastructure by reducing the number of physical ports and cables required.

A CNA leverages the Fibre Channel over Ethernet (FCoE) protocol, which allows storage traffic to be carried over Ethernet networks, eliminating the need for separate storage networks. This convergence simplifies network management, reduces costs, and improves overall data transfer speeds.

By combining Ethernet and SAN capabilities in a single adapter, a CNA enables virtualization and server consolidation, as it can connect to both network and storage devices. It provides high-speed connectivity through its Ethernet ports, while also supporting Fibre Channel and Serial Attached SCSI (SAS) connections for storage devices.

Converged Network Adapters offer increased bandwidth and low latency, as they can handle both network and storage traffic simultaneously. They enable the sharing of network resources and facilitate the deployment of cloud computing, big data analytics, and other demanding applications that require high-performance data transfer.

Benefits of Converged Network Adapters

Converged Network Adapters (CNAs) offer a variety of benefits for storage and network environments. Here are some key advantages:

  1. Protocol Convergence: CNAs support the convergence of storage and network traffic over a single adapter. This eliminates the need for separate Ethernet and Fibre Channel adapters, reducing hardware costs and simplifying deployment.
  2. Increased Bandwidth: By combining storage and network traffic, CNAs provide higher bandwidth capabilities, allowing for faster data transfer and improved overall performance.
  3. Improved Virtualization: CNAs enhance virtualization capabilities by allowing multiple virtual machines to access storage and network resources directly, without the need for additional hardware.
  4. Enhanced Data Protection: CNAs support advanced data protection features, such as SAN booting and quality of service (QoS), ensuring efficient and secure data transmission.
  5. Flexibility and Scalability: CNAs offer flexibility to adapt to changing storage and network requirements. They can be easily reconfigured and scaled to accommodate growing data demands.
  6. Reduced Complexity: With CNAs, administrators can manage storage and network resources from a single interface, simplifying management tasks and reducing complexity.
  7. Improved Server Utilization: CNAs enable efficient utilization of server resources by reducing the number of adapters required, freeing up PCIe slots for other expansion cards.

In conclusion, converged network adapters bring together the benefits of both storage and network technologies, providing increased performance, flexibility, and simplicity for modern data centers.

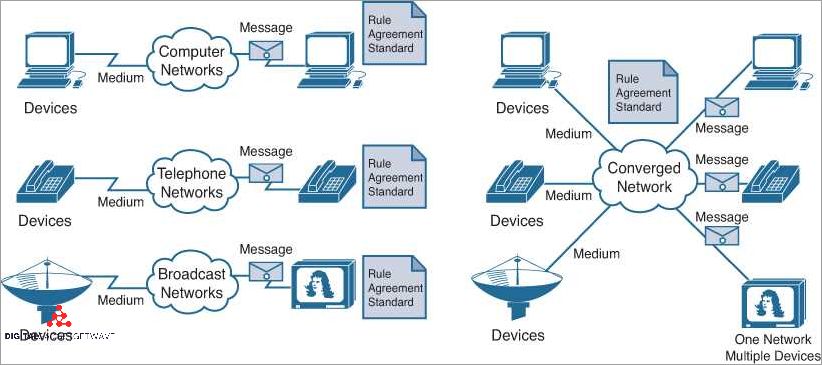

Section 2: How Converged Network Adapters Work

Section 2: How Converged Network Adapters Work

A converged network adapter (CNA) is a technology that combines the capabilities of Ethernet and Fibre Channel in a single port. It provides convergence by allowing multiple network protocols to run on the same hardware and transmit data over a single network connection. This convergence is achieved through the use of virtualization technology, which allows for the creation of virtual resources, such as virtual ports, virtual adapters, and virtual lanes.

Converged network adapters use the PCI Express (PCIe) technology to connect to the server’s motherboard. This high-speed, high-bandwidth interface ensures that data can be transmitted quickly and efficiently. The CNA can support both Ethernet and Fibre Channel protocols, allowing for the transmission of data over either type of network.

Converged network adapters provide a number of benefits, including improved performance and reduced hardware costs. By combining multiple protocols into a single adapter, CNAs simplify network infrastructure, eliminate the need for multiple network interface cards, and reduce the amount of cabling required. This not only saves on hardware costs, but also reduces power consumption and the overall complexity of the network.

Additionally, converged network adapters enable the use of storage area networks (SANs) by allowing servers to connect to SAN devices over a fibre channel network. This enables servers to access shared storage resources, such as disk arrays and tape drives, improving storage performance and providing centralized storage management.

The convergence of Ethernet and Fibre Channel protocols in a single adapter allows for improved bandwidth utilization and better network performance. It enables the efficient transmission of data across both LAN and SAN environments, providing greater flexibility and scalability for the network infrastructure.

In summary, converged network adapters are a key component in modern network architectures, enabling the convergence of multiple protocols and the efficient transmission of data. By combining Ethernet and Fibre Channel capabilities in a single hardware device, CNAs provide improved performance, reduced hardware costs, and greater flexibility for network design.

READ MORE  Ghz to Hz: Understanding Frequency Conversion

Overview of Converged Network Adapters

A converged network adapter (CNA) is a hardware component that combines the functionality of a network interface card (NIC) and a host bus adapter (HBA). It enables the convergence of different types of traffic, such as storage, server, and data traffic, onto a single network connection. This convergence is made possible through the use of a common protocol, typically Ethernet.

Converged network adapters are designed to provide improved performance and scalability for virtualized environments. By consolidating multiple network connections onto a single adapter, CNAs reduce the number of ports required and the amount of cabling needed in a server. This not only simplifies the network infrastructure but also saves valuable space and reduces power consumption.

An important feature of converged network adapters is their support for storage protocols, such as SCSI over IP (iSCSI) and Fibre Channel over Ethernet (FCoE). This allows CNAs to connect to storage area networks (SANs) and access storage devices using the same Ethernet infrastructure that is used for regular data traffic.

The convergence of storage and network traffic onto a single adapter offers several benefits. Firstly, it reduces the complexity of the network and simplifies management. Secondly, it improves overall performance by providing higher bandwidth and lower latency. Finally, it enhances flexibility and scalability, allowing for easier resource allocation and virtualization.

CNAs are typically connected to the server’s PCI Express (PCIe) bus and support multiple ports, allowing for redundancy and increased throughput. They can support various types of network connections, including Ethernet, fibre channel, and SAS (Serial Attached SCSI). This flexibility enables CNAs to adapt to different network environments and meet the specific requirements of different applications and workloads.

In conclusion, converged network adapters play a crucial role in modern data centers by enabling the convergence of different types of traffic onto a single network connection. They provide improved performance, scalability, and flexibility, making them essential components in virtualized environments. Whether connecting to storage devices, supporting virtualization technologies, or enhancing overall network performance, CNAs offer significant advantages for businesses seeking to optimize their network infrastructure.

Key Features and Functionality

A converged network adapter (CNA) combines the functionality of a network adapter and a storage adapter into a single device. It provides multiple ports for connecting to the network and storage infrastructure, offering high-speed data transfer.

The CNA utilizes Ethernet, Fiber Channel over Ethernet (FCoE), and iSCSI protocols to support both network and storage traffic, ensuring efficient data transmission. With its dual functionality, it simplifies the hardware requirements of servers, reducing the number of adapters and cables needed.

One of the key features of CNAs is their ability to support converged network and storage traffic, which is critical in virtualized environments. It enables the consolidation of multiple network and storage connections, optimizing bandwidth utilization and improving overall performance.

The CNA can be connected to networks using different technologies, such as Ethernet, SAS, or Fiber Channel, allowing for flexible deployment in various environments. It offers high-speed data transfer rates, ensuring fast and reliable access to both network and storage resources.

In terms of storage, the CNA supports both SAN and NAS technologies, enabling seamless integration with existing storage infrastructure. It provides a unified fabric for data storage, simplifying administration and management tasks.

Moreover, CNAs support advanced features such as quality of service (QoS) and virtualization technologies, allowing for efficient allocation of network and storage resources. It ensures that critical data is prioritized and reliably delivered to its destination.

The CNA connects to a server via the Peripheral Component Interconnect Express (PCIe) interface, allowing for a high-speed connection and low-latency data transfer. It integrates seamlessly with the server’s hardware, providing a scalable and reliable solution for network and storage connectivity.

Integration with Existing Network Infrastructure

Converged network adapters (CNAs) play a critical role in integrating with the existing network infrastructure. They provide the necessary connectivity for various components of the network, such as servers, storage devices, and virtualization platforms. By employing CNAs, organizations can ensure seamless integration between their different data center technologies.

One aspect of integration is the ability to support multiple protocols. CNAs are designed to support both Ethernet and Fiber Channel protocols, enabling organizations to smoothly transition from traditional storage area networks (SANs) to converged networks. With a CNA, organizations can take advantage of the high-speed and low-latency characteristics of Ethernet while also leveraging the reliability and performance of Fiber Channel.

Furthermore, CNAs offer flexibility in terms of port configuration. They typically feature multiple ports, allowing organizations to allocate specific ports for specific purposes. For example, some ports can be dedicated to data storage, while others can be used for server-to-server communication or for connecting to external networks. This flexibility gives organizations the freedom to optimize their network infrastructure based on their specific needs and requirements.

Another important consideration is the bandwidth and performance capabilities of CNAs. With increasing data demands and the rise of technologies like virtualization, organizations need adapters that can handle high levels of data traffic and deliver superior performance. CNAs are designed to provide high-speed data transfer rates, ensuring that organizations can meet their data processing requirements efficiently.

Additionally, CNAs are hardware adapters that can be easily integrated into existing server and storage systems. They can be installed on servers without the need for any additional cabling or modifications to the physical infrastructure. This makes it easier and more cost-effective for organizations to implement converged network solutions without disrupting their existing network architecture.

In conclusion, the integration of CNAs with existing network infrastructure is crucial for organizations looking to achieve network convergence. These adapters support multiple protocols, offer flexible port configurations, provide high-bandwidth and high-performance capabilities, and can be seamlessly integrated into existing server and storage systems. By leveraging CNAs, organizations can optimize their network infrastructure and take advantage of the latest storage and networking technologies.

Section 3: Applications and Use Cases

Section 3: Applications and Use Cases

In the world of converged networks, applications and use cases are diverse and varied. With the ability to handle multiple types of data, this technology opens up a wide range of possibilities for organizations.

One common application is in server virtualization. Converged network adapters allow for the consolidation of network and storage traffic, reducing the need for separate adapters and streamlining the infrastructure. By utilizing the converged network adapter, organizations can improve server performance and optimize bandwidth usage.

Another use case is in storage area networks (SANs). Converged network adapters provide a high-performance connection between servers and storage devices, enabling faster data transfer rates and improved overall storage performance. With the ability to support protocols such as Fibre Channel, SAS, and Ethernet, these adapters can handle a diverse range of storage technologies.

Convergence is also beneficial in the context of network virtualization. By leveraging the capabilities of converged network adapters, organizations can create virtual networks that are independent of the physical hardware. This allows for greater flexibility and scalability, as well as improved resource utilization and efficiency.

READ MORE  Understanding Different Security Bit Types for Enhanced Security Measures

Furthermore, converged network adapters play a crucial role in the convergence of Ethernet and storage networks. By consolidating these two types of networks, organizations can reduce complexity and lower costs. This convergence also enables the use of technologies such as Ethernet-based storage, which can provide significant benefits in terms of performance and scalability.

Overall, the applications and use cases for converged network adapters are vast and varied. Whether it is improving server performance, optimizing bandwidth usage, enhancing storage performance, enabling network virtualization, or consolidating Ethernet and storage networks, this technology offers numerous benefits for organizations looking to maximize the efficiency and effectiveness of their network infrastructure.

Converged Network Adapters for Data Centers

A converged network adapter (CNA) is a hardware device that combines the functionality of both a network adapter and a storage adapter into a single port. It is designed to provide high bandwidth and low latency connectivity for data centers, optimizing the performance and efficiency of data transfer.

A CNA supports multiple protocols, including Fibre Channel over Ethernet (FCoE), iSCSI, and Data Center Ethernet (DCE). This versatility allows for seamless integration with different network and storage technologies, enabling data centers to consolidate their infrastructure and simplify management.

By leveraging FCoE, a CNA enables the convergence of network traffic and storage traffic onto a single Ethernet infrastructure. This eliminates the need for separate Fiber Channel (FC) fabric, resulting in cost savings and improved flexibility. In addition, the use of TCP/IP protocols like iSCSI allows for remote storage access over standard Ethernet connections, further enhancing the scalability and flexibility of data centers.

With a CNA, data centers can achieve higher levels of performance and efficiency. The high bandwidth and low latency capabilities of CNAs ensure fast and reliable data transfer, reducing bottlenecks and improving overall system responsiveness. This is particularly important in virtualized server environments, where multiple virtual machines are competing for network and storage resources.

Furthermore, the integration of network and storage functions into a single adapter simplifies the deployment and management of data center infrastructure. CNAs can be easily installed in standard PCI slots, eliminating the need for additional hardware and minimizing compatibility issues. This plug-and-play functionality accelerates the deployment process and reduces maintenance efforts.

In conclusion, converged network adapters are essential components for modern data centers. Their ability to consolidate network and storage functions, support multiple protocols, and deliver high-performance connectivity makes them ideal for handling the growing demands of data-intensive applications and virtualized environments.

Converged Network Adapters in Virtualized Environments

In virtualized environments, the importance of converged network adapters (CNAs) cannot be overstated. A CNA is a type of network adapter that combines the functionality of a storage area network (SAN) adapter and a server adapter into a single hardware device. It provides the necessary connectivity for both storage and networking traffic in a converged manner.

One of the key benefits of using CNAs in virtualized environments is the convergence of network and storage traffic onto a single hardware interface. This eliminates the need for separate adapters for Ethernet and SAN connectivity, reducing the number of ports and simplifying the overall architecture of the infrastructure.

The convergence of storage and network traffic also allows for better utilization of available bandwidth. CNAs typically support high-performance technologies such as Fibre Channel over Ethernet (FCoE) and iSCSI, which enable the transmission of storage data over Ethernet infrastructure. This leverages the existing network infrastructure and provides a cost-effective solution for storage connectivity.

Furthermore, virtualization technologies rely heavily on efficient and reliable connectivity between servers and storage systems. CNAs provide the necessary bandwidth and performance required for these demanding workloads. They are often equipped with high-speed PCIe interfaces and support protocols such as SAS or Fibre Channel, ensuring low latency and high throughput.

In summary, leveraging converged network adapters in virtualized environments brings numerous benefits, including simplified architecture, reduced costs, better bandwidth utilization, and improved performance. The adoption of CNAs is crucial for organizations seeking to optimize their virtualization deployments and ensure seamless connectivity between servers and storage systems.

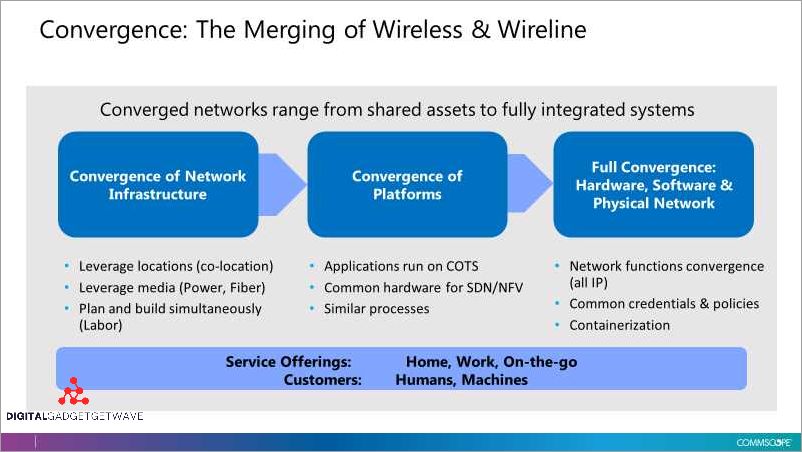

Converged Network Adapters for High-Performance Computing

Converged Network Adapters for High-Performance Computing

In the realm of high-performance computing, converged network adapters (CNAs) play a crucial role in achieving optimal performance and efficiency. A CNA is a hardware component that combines the functionalities of a network interface card (NIC) and a host bus adapter (HBA), providing a single interface for multiple types of data traffic.

One of the main advantages of CNAs is their ability to support both Ethernet and fibre channel protocols, making them ideal for environments that require high-bandwidth networking and storage capabilities. By leveraging fibre channel technology, CNAs can efficiently handle large volumes of data with minimal latency, ensuring excellent performance in data-intensive workflows.

For high-performance computing systems, CNAs offer significant benefits in terms of scalability and virtualization. With multiple ports, CNAs can support high-density server configurations, allowing for increased network capacity and improved overall system performance. Moreover, CNAs provide native support for virtualization technologies, enabling the efficient allocation of network resources and enhancing the flexibility and manageability of virtualized environments.

In addition to their versatility and performance capabilities, CNAs also contribute to the convergence of storage and networking infrastructures. By combining the functionalities of NICs and HBAs, CNAs eliminate the need for separate adapters and cables, reducing complexity and the overall cost of the system. This convergence simplifies the management and maintenance of the infrastructure, allowing for easier deployment and enhancing overall efficiency.

In conclusion, converged network adapters play a vital role in high-performance computing by providing the necessary hardware convergence, scalability, and performance capabilities required for data-intensive workloads. With their support for multiple protocols, including Ethernet and fibre channel, CNAs offer flexibility in networking and storage configurations, enabling seamless integration into modern computing environments.

Section 4: Considerations and Future Trends

When considering converged network adapters (CNAs), there are several important factors to take into account. One of the most crucial considerations is the type of fiber used for storage and network connectivity. Fiber-optic technology offers higher bandwidth and faster data transfer speeds, making it an ideal choice for SAN (Storage Area Network) environments.

Another important consideration is the convergence of different protocols over Ethernet. A converged network adapter allows for the consolidation of both storage and network traffic onto a single hardware device. This convergence can improve overall performance and reduce the complexity of managing separate network and storage infrastructures.

Virtualization is another trend that affects the importance of converged network adapters. With virtualized server environments becoming more common, the need for high-performance network and storage connectivity is critical. CNAs provide the necessary bandwidth and flexibility to support virtualized environments by offloading network and storage processing from the server.

In terms of future trends, the adoption of higher-speed Ethernet standards is expected to continue. As the demand for increased bandwidth grows, 40G and 100G Ethernet are becoming more prevalent. Converged network adapters will need to support these higher-speed networks to ensure optimal performance and data transfer rates.

READ MORE  Understanding DSR: A Comprehensive Guide

Furthermore, the evolution of storage technology is also a factor to consider. The emergence of new protocols, such as SAS (Serial Attached SCSI), is changing the landscape of storage connectivity. CNAs should be capable of supporting these new protocols to enable seamless integration with modern storage systems.

In conclusion, when considering converged network adapters, it is important to take into account the type of fiber, the convergence of protocols, the impact of virtualization, and future trends in Ethernet and storage technology. By evaluating these factors, organizations can make informed decisions and ensure that their network and storage infrastructure can meet the demands of today and tomorrow.

Factors to Consider when Implementing Converged Network Adapters

1. Bandwidth: When implementing converged network adapters (CNAs), it is important to consider the available bandwidth. CNAs typically provide higher bandwidth than traditional network adapters, allowing for increased data transfer rates and improved network performance.

2. Convergence: CNAs offer the ability to converge different types of traffic, such as data, storage, and server traffic, onto a single network connection. This convergence can help simplify network infrastructure and reduce hardware costs.

3. Virtualization: As virtualization technology continues to grow, it is important to consider the impact of CNAs on virtualized environments. CNAs can provide improved performance and efficiency for virtual machines, allowing for better resource utilization and increased flexibility.

4. Protocol support: CNAs support multiple protocols, such as Ethernet, Fibre Channel, and SAS, allowing for flexibility in network connectivity options. When implementing CNAs, it is important to consider the protocols that are required for your specific network and storage infrastructure.

5. Performance: CNAs offer improved performance compared to traditional network adapters. They provide lower latency and higher throughput, allowing for faster data transfer and improved application performance.

6. Hardware compatibility: It is important to ensure that the server hardware is compatible with CNAs. This includes checking for available PCI slots, power requirements, and any additional hardware or firmware updates that may be required.

7. Storage connectivity: CNAs provide the ability to connect to both SAN and NAS storage systems. It is important to consider the storage requirements of your organization and ensure that the CNAs support the necessary storage connectivity options, such as Fibre Channel or Ethernet.

8. Fiber channel support: If your organization relies heavily on Fibre Channel technology for storage connectivity, it is important to choose CNAs that support Fibre Channel over Ethernet (FCoE) to ensure compatibility with existing infrastructure.

9. Data protection: When implementing CNAs, it is important to consider data protection and security. CNAs provide features such as data encryption and authentication, which can help protect sensitive data from unauthorized access or interception.

10. Scalability: Finally, it is important to consider the scalability of CNAs. As your organization’s network and storage requirements grow, CNAs should be able to scale to meet the increasing demands, allowing for future expansion without the need for significant infrastructure changes.

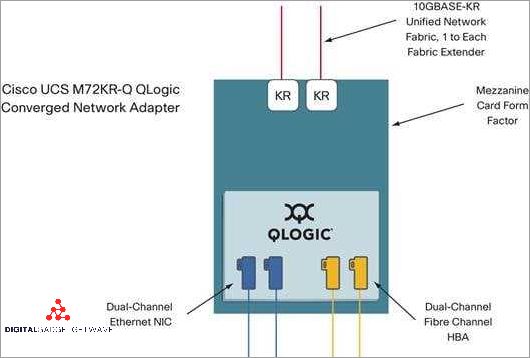

Emerging Trends in Converged Network Adapters

Emerging Trends in Converged Network Adapters

The emergence of converged network adapters has brought about significant advancements in networking technology. As data centers increasingly rely on high-speed networks to handle the growing volume of data, fiber optic technology has become a popular choice. Converged network adapters enable the transmission of data using fiber optics, providing greater bandwidth and faster performance.

One of the key emerging trends in converged network adapters is the convergence of storage and networking protocols. Traditionally, data storage and network traffic were handled by separate hardware components. However, with the advent of converged network adapters, both functions can now be consolidated into a single adapter. This convergence simplifies the data center infrastructure and improves efficiency by reducing the number of components needed.

Another emerging trend is the integration of virtualization and converged network adapters. Virtualization allows for the abstraction of hardware resources, enabling multiple virtual machines to run on a single physical server. By combining virtualization with converged network adapters, organizations can achieve greater flexibility and scalability in their networking infrastructure. This integration allows for more efficient resource allocation and simplified management of network resources.

The use of converged network adapters also enables organizations to leverage advanced storage technologies such as SAS (Serial Attached SCSI) and Fibre Channel over Ethernet (FCoE). By supporting these storage protocols, converged network adapters enable the consolidation of storage traffic onto the same network infrastructure, further simplifying the data center architecture. This convergence of storage and networking enhances overall performance and reduces the complexity of managing storage networks.

In summary, converged network adapters are experiencing several emerging trends that are shaping the future of networking technology. The convergence of storage and networking protocols, integration with virtualization, and support for advanced storage technologies are all contributing to improved performance, greater efficiency, and simplified management of data center networks.

FAQ about topic “Understanding the Importance of Converged Network Adapters: A Comprehensive Guide”

What is a converged network adapter?

A converged network adapter (CNA) is a hardware device that combines the functionalities of a network interface card (NIC) and a host bus adapter (HBA). It allows for the transmission of both Ethernet and Fibre Channel protocols over a single network interface.

What are the benefits of using converged network adapters?

There are several benefits to using converged network adapters. Firstly, CNAs can help reduce the number of network interface cards and host bus adapters required in a system, resulting in cost savings and simplified management. Additionally, CNAs can improve performance by offloading certain tasks from the host CPU to the adapter. Lastly, CNAs enable the convergence of multiple network types, such as Ethernet and Fibre Channel, onto a single network, reducing complexity.

Can converged network adapters be used in virtualized environments?

Yes, converged network adapters can be used in virtualized environments. In fact, CNAs are particularly well-suited for virtualization as they can help streamline network connectivity by consolidating multiple protocols onto a single adapter. This simplifies the management of virtual networks and improves overall performance.

What are some considerations to keep in mind when choosing a converged network adapter?

When choosing a converged network adapter, it is important to consider factors such as compatibility with existing hardware and software, the required network speeds and protocols, and the overall scalability and flexibility of the adapter. It is also important to ensure that the CNA is certified by relevant industry standards organizations to guarantee interoperability and reliability.

Are there any potential drawbacks to using converged network adapters?

While converged network adapters offer numerous benefits, there are also potential drawbacks to consider. One potential drawback is the increased complexity of managing a converged network, as multiple protocols are now running over the same physical infrastructure. Additionally, CNAs are more expensive than traditional network adapters, so the cost may be a factor for some organizations. Lastly, there may be compatibility issues with certain operating systems or applications, so it is important to ensure proper compatibility before implementing CNAs.
