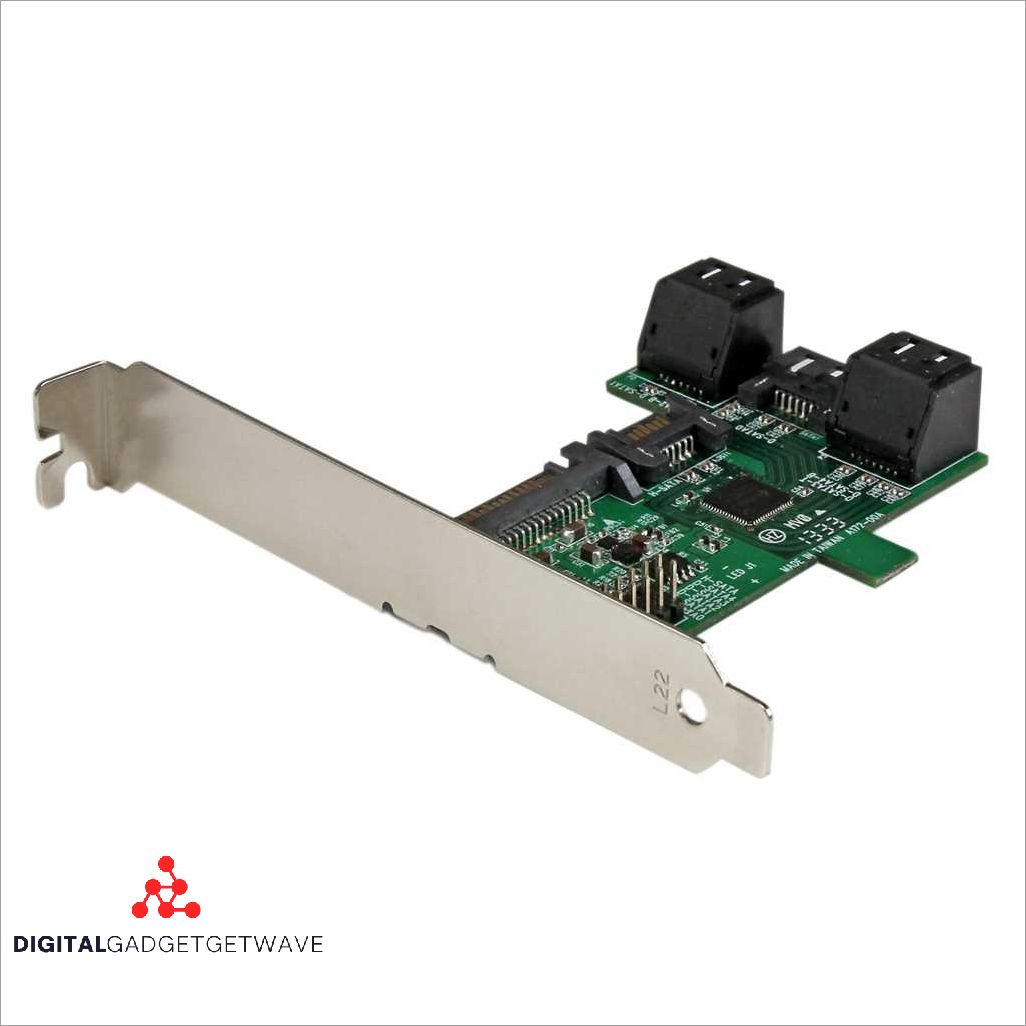

What is a SATA Port Multiplier and How Does it Work?

data transfer, multiple drives, single SATA, single SATA port, storage capacity, storage devices

What is a SATA Port Multiplier and How Does it Work?

A SATA port multiplier is a device that allows for the expansion of connectivity and the multiplication of storage devices in a computer system. It is a controller that provides additional SATA ports, allowing for more devices to be connected and accessed via a single SATA port on the motherboard or host controller.

The SATA port multiplier works by utilizing a special controller chip called a port expander. The expander connects to a single SATA port and then provides multiple additional ports that can be used to connect SATA devices such as hard drives or solid-state drives (SSDs). This enables the user to connect multiple devices to one port, saving valuable SATA ports for other uses.

Compatibility and performance are key considerations when using a SATA port multiplier. The compatibility of the expander and the devices being connected is important to ensure proper functioning. The performance of the devices connected to the port multiplier is also a factor, as all devices connected to the same port share the bandwidth and can potentially affect transfer speeds.

One of the advantages of using a SATA port multiplier is its scalability. By daisy-chaining multiple port multipliers together, it is possible to connect a large number of devices to a single SATA port. This is especially useful in situations where additional storage is needed, but there are limited available SATA ports.

The hot-swap feature is another benefit of using a port multiplier. This allows for easy and convenient swapping of storage devices without having to power down the system. This can be particularly useful in RAID configurations or for users who frequently need to access different drives or backup data.

In conclusion, a SATA port multiplier is a device that provides expanded connectivity and storage multiplication by utilizing a controller and port expander. It offers increased compatibility and scalability, as well as the convenience of hot-swap functionality. This makes it a valuable tool for users who require additional storage or want to optimize their system’s performance and flexibility.

Definition and Purpose

A SATA port multiplier is a device that allows multiple SATA devices to be connected to a single SATA port on a host computer or storage controller. It is typically used to expand the connectivity and storage capabilities of a computer system.

The main purpose of a SATA port multiplier is to provide a way to connect multiple storage devices, such as hard drives or solid-state drives, to a single port. This allows for increased storage capacity and flexibility, as well as improved data transfer speeds.

By using a SATA port multiplier, users can connect multiple drives to a single port on their computer or storage controller, saving valuable ports for other devices or connectivity options. The port multiplier acts as a hub or expander, allowing multiple devices to be connected to a single port.

SATA port multipliers are compatible with most SATA devices and can support various configurations, including RAID setups for improved data redundancy and performance. They can also be used in hot-swap enclosures, allowing for easy removal and replacement of drives without powering down the system.

The performance of a SATA port multiplier is dependent on the speed of the SATA interface being used, as well as the capabilities of the connected devices. However, the use of a port multiplier can still provide significant benefits in terms of scalability and expansion options for storage systems.

In summary, a SATA port multiplier is a device that allows for the multiplication of SATA ports, providing increased connectivity and storage options. It enables the connection of multiple drives to a single port, improving the storage capacity, data transfer speed, and flexibility of a computer system or storage controller.

Benefits and Advantages

Multiplication of SATA Ports: A SATA Port Multiplier allows you to expand the number of SATA ports available on your computer or storage device. With a single SATA port, you can connect multiple drives simultaneously, increasing your storage capacity without the need for additional controllers or cables.

Increased Speed and Transfer Rates: The SATA Port Multiplier operates at high-speed rates, ensuring fast and efficient data transfer between the connected drives and the host controller. This enables quicker access to stored files and improved overall system performance.

RAID Support: The SATA Port Multiplier supports various RAID configurations, allowing you to create redundant and fault-tolerant storage arrays. This ensures data integrity and protection against drive failures, making it ideal for professional applications that require high levels of reliability and data redundancy.

Expandable Storage Enclosure: Using a SATA Port Multiplier, you can easily expand the capacity of your storage enclosure or server without the need for additional hardware. Simply connect multiple drives to the SATA ports of the multiplier, and you can instantly increase your storage capacity for backups, data archiving, or multimedia storage.

Scalability and Flexibility: The SATA Port Multiplier offers scalability by allowing you to add more drives as your storage needs grow. You can daisy-chain multiple multipliers together, providing even more connectivity options and storage expansion capabilities.

Hot-Swap Capabilities: The SATA Port Multiplier supports hot-swapping, meaning you can add or remove drives while the system is powered on. This makes it easy to replace or upgrade drives without interrupting system operation, improving efficiency and productivity.

Improved Performance: By connecting multiple drives to a single SATA port, the multiplier eliminates the need for separate data cables for each drive. This reduces cable clutter and enhances airflow within the computer or storage enclosure, resulting in improved overall system performance.

Diverse Compatibility: The SATA Port Multiplier is compatible with various SATA devices, including hard drives, solid-state drives, optical drives, and other SATA-enabled storage devices. This ensures compatibility across a wide range of applications and devices, making it a versatile solution for different setups.

Enhanced Connectivity: The SATA Port Multiplier provides a centralized hub for connecting multiple drives to a single SATA port. This simplifies cable management and improves overall connectivity, allowing for easier control and organization of your storage devices.

Common Applications

The SATA Port Multiplier has a wide range of common applications due to its ability to daisy-chain multiple drives and exponentially increase storage capacity. It is commonly used in enclosure setups where multiple hard drives need to be connected to a single controller. This allows for easy scalability and expansion of storage capacity without the need for additional controllers or host connections.

In terms of performance, the SATA Port Multiplier ensures high-speed data transfer rates between the connected devices and the host. With its compatibility with SATA III standards and support for RAID configurations, it is ideal for professional applications that require fast and reliable data storage solutions.

One of the key advantages of using a SATA Port Multiplier is its convenience and ease of use. The hot-swap capability allows for easy installation and removal of drives without having to power down the system. This makes it ideal for situations where regular drive swapping is required, such as in server environments or data backup systems.

The SATA Port Multiplier can also be used as a connectivity hub for various storage devices. With its ability to connect multiple drives to a single controller, it simplifies the overall system design and reduces the number of cables and connectors required. This not only improves the efficiency of the setup but also reduces the clutter and improves cable management.

Overall, the SATA Port Multiplier is a versatile and reliable solution for expanding storage capacity, improving data transfer speed, and enhancing connectivity in various applications. Whether it’s for professional use or personal storage needs, the SATA Port Multiplier offers a cost-effective and efficient solution for managing and accessing large volumes of data.

READ MORE  What is MMF? A Comprehensive Guide to Understanding MMF

Understanding SATA Technology

SATA, or Serial Advanced Technology Attachment, is a widely used interface for connecting storage devices to a computer. It provides a high-speed data transfer connection between the motherboard and various storage devices, such as hard drives, solid-state drives (SSDs), and optical drives.

One of the key features of SATA technology is its scalability and compatibility. SATA ports can be easily expanded by using port multipliers, allowing for more devices to be connected and daisy-chained together. This makes it convenient for users who require a larger storage capacity or need to connect multiple devices.

The use of a SATA port multiplier allows for the multiplication of SATA ports through a single connection. This enables users to connect multiple drives or devices to a single SATA port, saving valuable space and reducing the need for additional connectors or cables. It also simplifies the overall connectivity of storage devices within a system.

In terms of performance, SATA technology offers high-speed data transfer rates. The SATA interface supports different speeds, such as SATA I (1.5 Gbps), SATA II (3 Gbps), and SATA III (6 Gbps). These speeds enable fast and efficient transfer of data between the motherboard and storage devices.

SATA port multipliers also support hot-swap functionality, which means that devices can be connected or disconnected without needing to shut down the computer. This makes it easy to add or remove drives or devices on the go, without interrupting the operation of the system.

Another benefit of using a SATA port multiplier is its compatibility with RAID (Redundant Array of Independent Disks) controllers. RAID configurations can be easily implemented by connecting multiple drives to a single SATA port through the port multiplier. This allows for enhanced storage reliability, performance, and capacity.

Furthermore, the use of a SATA port multiplier can simplify the expansion of storage capacity within an enclosure. By connecting multiple drives to a single SATA port, users can easily upgrade the storage of their system or external enclosure without the need for additional connectors or cables.

In conclusion, SATA technology, in conjunction with port multipliers, offers a versatile and efficient solution for expanding storage capacity and improving the connectivity of storage devices. With its high-speed data transfer rates, compatibility with RAID controllers, and hot-swap functionality, SATA provides a reliable and scalable solution for various storage needs.

Overview of SATA

SATA (Serial ATA) is a popular interface for connecting storage devices, such as hard drives and solid-state drives, to a computer. It is a replacement for the older IDE (Integrated Drive Electronics) interface and offers improved transfer speeds and compatibility.

SATA allows for the transfer of data between a device and the computer at high speeds. It can support data transfer rates of up to 6 gigabits per second (Gbps), which is significantly faster than the older IDE interface.

One of the key features of SATA is its hot-swap capability, which allows users to connect or disconnect devices while the computer is still powered on. This is particularly useful for situations where additional storage is required, or when a faulty device needs to be replaced without shutting down the system.

SATA also offers scalability and flexibility through the use of port multipliers. A port multiplier is a device that acts as a hub, allowing multiple SATA devices to be connected to a single SATA port on the motherboard or controller. This enables the expansion and multiplication of storage capacity without the need for additional SATA ports.

By connecting a port multiplier to a single SATA port, multiple hard drives or solid-state drives can be connected to the system, forming a RAID (Redundant Array of Independent Disks) array for improved performance and data redundancy.

Port multipliers can also be used in storage enclosures, where multiple drives are housed in a single enclosure. This allows for easy installation and management of multiple drives, making it ideal for applications that require large amounts of storage, such as media servers or network-attached storage devices.

SATA port multipliers offer backward compatibility with older SATA devices and controllers, making them a versatile solution for both new and existing systems. They are commonly used in both consumer and enterprise environments, where high-performance storage and expandability are required.

Functionality of SATA Ports

A SATA port, or Serial ATA port, is a hardware interface that allows devices to connect to a computer’s motherboard and enables the transfer of data. SATA ports are commonly used for connecting storage devices, such as hard drives and solid-state drives, to a computer system. The functionality of SATA ports includes various features to enhance storage connectivity and performance.

Each SATA port is connected to a SATA controller, which is responsible for managing the communication between the device and the computer system. The controller handles data transfer protocols and ensures compatibility between the device and the port. It also supports RAID configurations, allowing multiple drives to work together for increased storage capacity, data redundancy, and improved performance.

One of the key features of SATA ports is their speed. SATA ports support different versions, such as SATA 1.5 Gbps, SATA 3 Gbps, and SATA 6 Gbps, which determine the maximum data transfer rate. This speed determines how quickly data can be read from or written to the connected storage device.

SATA port multipliers are used to expand the connectivity of SATA ports. A port multiplier acts as a hub or expander, allowing multiple drives to be connected to a single SATA port. This enhances the scalability and flexibility of storage setups, enabling the connection of multiple drives without consuming additional ports on the motherboard.

The use of SATA port multipliers also facilitates the daisy-chaining of devices, enabling multiple storage enclosures to be connected in a series. This simplifies cable management and reduces clutter. In addition, SATA ports support hot-swap functionality, which means that devices can be connected or disconnected without the need to restart the computer system.

In summary, SATA ports play a crucial role in storage connectivity and performance. With their high-speed data transfer capabilities, compatibility with various devices, and support for RAID configurations, SATA ports provide efficient and reliable connectivity for storage devices in modern computer systems.

Limitations of Single SATA Ports

A single SATA port has certain limitations in terms of compatibility, performance, and connectivity. When using a single SATA port, the number of devices that can be connected is limited to one. This means that if you want to connect multiple storage devices, such as hard drives or SSDs, you would need multiple SATA ports.

Furthermore, a single SATA port can be a bottleneck for data transfer speed, especially when dealing with large files or high-performance storage devices. The speed of a single SATA port is typically limited to a maximum of 6 Gbps, which may not be sufficient for certain applications.

In addition, daisy-chaining multiple storage devices using a single SATA port is not possible. In order to connect multiple devices, each device requires its own dedicated SATA port. This can be problematic when trying to build a scalable storage solution or when multiple storage devices need to be connected to a single system. Therefore, a SATA port multiplier becomes necessary.

A SATA port multiplier is a device that expands the connectivity of a single SATA port by allowing multiple devices to be connected to it. It works by acting as an expander, connecting multiple storage devices to a single SATA port. This allows for the easy expansion of storage capacity without having to add additional SATA ports or controllers.

By utilizing a SATA port multiplier, users can connect multiple storage devices, such as hard drives or SSDs, to a single SATA port. This enables hot-swapping of drives, allowing for easy replacement or addition of storage devices without powering off the system. It also supports RAID configurations, allowing for enhanced data protection and performance.

Overall, a SATA port multiplier overcomes the limitations of single SATA ports by providing increased connectivity, scalability, and performance. It is a cost-effective solution for expanding storage capacity and improving data transfer speeds in desktops, servers, and other computing systems.

Explaining SATA Port Multipliers

A SATA Port Multiplier, also known as a port expander, is a device that allows multiple storage drives to be connected to a single SATA port on a computer or a storage controller. It provides scalability and flexibility by enabling the connection of multiple drives without the need for additional ports or controllers.

READ MORE  What Does BSI Stand For? Discover the Meaning of BSI

The main purpose of a SATA Port Multiplier is to multiply the number of available SATA ports, allowing for the expansion of storage capacity. This is particularly useful in situations where there are limited SATA ports available on a system.

With a SATA Port Multiplier, data can be transferred simultaneously between the host device and multiple drives connected to the port. This improves data transfer speed and performance, making it ideal for applications that require high-speed storage access, such as RAID setups or high-capacity storage enclosures.

One of the key features of SATA Port Multipliers is their daisy-chaining ability. Multiple port multipliers can be connected together in a daisy-chain configuration, allowing for even further expansion and connectivity. This means that a single SATA port can potentially support a large number of drives, making it a cost-effective solution for increasing storage capacity.

SATA Port Multipliers also support hot-swapping, which means that drives can be added or removed from the system without the need for rebooting or powering down the computer. This allows for easy maintenance and expansion of storage without disrupting the workflow.

When choosing a SATA Port Multiplier, it is important to ensure compatibility with the storage controller or host device. Different devices may have different specifications and requirements, so it is essential to select a port multiplier that is compatible with the system.

In conclusion, a SATA Port Multiplier is a versatile device that expands storage connectivity and capacity by multiplying the number of available SATA ports. It improves data transfer speed and performance, supports daisy-chaining for further expansion, and allows for hot-swapping of drives. Whether used in RAID setups, storage enclosures, or other applications, a SATA Port Multiplier provides a convenient and cost-effective solution for increasing storage capacity.

Definition and Operation

A SATA Port Multiplier is a device that allows multiple SATA devices to be connected to a single SATA port on a host device, such as a computer or a storage controller. It provides a cost-effective solution for expanding the connectivity and scalability of storage devices.

The operation of a SATA Port Multiplier involves an enclosure or an expander that connects multiple SATA devices to a single SATA port. It acts as a hub, allowing the host device to communicate with each connected device individually. The connected devices can be hot-swapped, meaning they can be added or removed without shutting down the system.

The main advantage of using a SATA Port Multiplier is the ability to increase the storage capacity and performance of a system without the need for additional ports or cables. By connecting multiple devices to a single port, the port multiplier effectively multiplies the available SATA ports, enabling multiple devices to be accessed simultaneously.

The compatibility of a SATA Port Multiplier is an important consideration. It should be compatible with the SATA version supported by the host device, such as SATA 2.0 or SATA 3.0. Additionally, the connected devices should be compatible with the port multiplier and support the desired transfer speed and RAID configuration.

In terms of performance, a SATA Port Multiplier can support the same data transfer speed as the host device. For example, if the host device supports SATA 3.0 with a maximum transfer speed of 6 Gbps, the connected devices will also have a maximum transfer speed of 6 Gbps. However, the actual performance may vary depending on the number of connected devices and their usage patterns.

The SATA Port Multiplier simplifies the connectivity and management of storage devices, making it an efficient solution for expanding storage capabilities. It eliminates the need for multiple ports and cables, reduces clutter, and facilitates the management of multiple devices through a single connection. Whether used in a home setup or in a professional environment, a SATA Port Multiplier offers an effective way to increase storage capacity and improve data transfer speeds.

Types of SATA Port Multipliers

SATA port multipliers come in different types to suit various connectivity and data expansion needs. Here are some of the common types:

  • Integrated Port Multiplier: This type of port multiplier is built into a storage controller or RAID controller. It allows for multiple drives to be connected to a single SATA port, enabling data transfer at high speeds.
  • External Port Multiplier: An external port multiplier is a separate device that is connected to the host controller via a SATA cable. It provides additional SATA ports for connecting multiple drives, allowing for easy expansion of storage capacity.
  • SATA Port Expander: A SATA port expander, also known as a hub, is a device that allows for the multiplication of SATA ports. It connects to the host controller and provides multiple downstream ports for connecting SATA devices.
  • Hot-Swap Port Multiplier: A hot-swap port multiplier is designed for easy drive swapping. It supports hot-plugging, allowing for the addition or removal of drives without the need to power down the system. This type of port multiplier is often used in server environments.
  • Compatibility: SATA port multipliers are designed to be compatible with various SATA versions, including SATA 1.5Gb/s, SATA 3Gb/s, and SATA 6Gb/s. It is important to ensure compatibility between the port multiplier and the host controller and drives for optimal performance.

SATA port multipliers are useful for expanding storage capacity, improving data transfer speeds, and creating RAID arrays. The type of port multiplier to choose depends on the specific requirements of the system and the desired level of connectivity and performance.

Compatibility and Installation

Compatibility and Installation

When it comes to compatibility, a SATA Port Multiplier offers great flexibility. It can be used with various types of enclosures, such as external hard drive enclosures or hot-swap drive bays. This means that you can easily expand your storage capacity without the need for multiple controllers or cables.

Installation of a SATA Port Multiplier is relatively simple. It requires a compatible controller, which can be either a dedicated Port Multiplier controller or a motherboard with built-in Port Multiplier support. Once connected, the Port Multiplier allows you to connect multiple SATA devices, such as hard drives or SSDs, to a single SATA port on your motherboard or controller.

The scalability of a SATA Port Multiplier is another advantage. By daisy-chaining multiple Port Multipliers together, you can connect even more devices to a single SATA port. This makes it an ideal solution for applications that require high-speed data transfer and increased storage capacity, such as RAID arrays or multimedia servers.

One important consideration when using a SATA Port Multiplier is the speed of data transfer. The performance of the connected devices can be affected by the overall bandwidth available. It is recommended to use a controller with a higher bandwidth and to ensure that the connected devices support the desired speed.

In terms of connectivity, a SATA Port Multiplier acts as a hub or an expander. It allows you to connect multiple SATA devices to a single port, eliminating the need for additional cables and controllers. This simplifies the overall setup and reduces the clutter of cables.

In conclusion, a SATA Port Multiplier is a useful tool for expanding the storage capacity and improving the performance of your system. It offers compatibility with various enclosures, scalability for future expansion, and simplified connectivity. With proper installation and configuration, it can greatly enhance the storage capabilities of your devices.

Benefits and Considerations

The use of a SATA Port Multiplier provides several benefits in terms of scalability and storage. By allowing multiple SATA devices to be connected to a single SATA port, it enables the expansion of storage capacity without the need for additional ports or cables. This is especially useful in situations where the available SATA ports on a system are limited.

Another advantage of using a SATA Port Multiplier is the ability to create RAID arrays. By connecting multiple storage devices to the port multiplier, users can configure the drives in various RAID configurations such as RAID 0, RAID 1, or RAID 5. This enhances data redundancy and improves overall performance, making it an ideal solution for users who require high-speed data transfer and fault tolerance.

The hot-swap feature supported by SATA Port Multipliers allows for easy and convenient replacement of storage devices without the need to power down the system. This is particularly beneficial in enterprise environments where data availability and uptime are crucial. Users can simply disconnect or connect drives on the fly, minimizing system downtime and maximizing productivity.

READ MORE  What is AGP: A Comprehensive Guide to Accelerated Graphics Port

The daisy-chaining capability of SATA Port Multipliers enables the connection of multiple devices in a linear series, eliminating the need for separate cables and ports for each device. This streamlines the connectivity process and reduces clutter, making it an efficient solution for users with limited space.

When considering the performance of a SATA Port Multiplier, it is important to ensure that the device is compatible with the system and supports the desired data transfer speed. Some port multipliers may have limitations on the maximum speed they can achieve due to the capabilities of the expander chip used. Therefore, users should carefully evaluate the performance specifications of the port multiplier and its compatibility with their system requirements.

In summary, a SATA Port Multiplier offers several benefits such as scalability, storage expansion, RAID support, hot-swap capability, and daisy-chaining functionality. However, users should consider factors such as performance, compatibility, and data transfer speed when selecting a port multiplier for their systems.

Increase in Storage Capability

The use of SATA port multipliers allows for a significant increase in storage capability within a system. By connecting multiple hard drives or solid-state drives (SSDs) to a single SATA port, users can effectively multiply their storage capacity without the need for additional ports or cables.

Through the use of daisy-chaining, users can connect multiple storage devices to a single SATA port, creating a chain of storage enclosures. This allows for hot-swappable storage, meaning that drives can be added or removed without needing to power down the system. This flexibility offers convenience and ease of use.

Not only does a SATA port multiplier increase storage capacity, but it also improves data transfer performance and speed. With multiple drives connected to a single port, the data can be distributed across all the drives, allowing for simultaneous read and write operations. This leads to improved overall system performance, especially in tasks that involve large file transfers or data-intensive operations.

The compatibility and expansion options provided by SATA port multipliers are also worth noting. They are compatible with various storage devices including hard drives, SSDs, and optical drives. Additionally, the use of port multipliers opens up the possibility of creating RAID arrays, further enhancing storage performance and flexibility.

Furthermore, SATA port multipliers offer scalability and connectivity options. Since multiple drives can be connected through a single cable and expander, it eliminates the need for additional cables and connectors, improving cable management and overall system aesthetics.

Overall, a SATA port multiplier is a valuable tool for increasing storage capability, improving data transfer performance, and providing flexibility in storage expansion. It offers a cost-effective solution for users and system builders who require additional storage capacity without sacrificing performance or scalability.

Performance and Data Transfer Rate

When it comes to performance and data transfer rate, a SATA Port Multiplier offers several advantages. Firstly, it allows multiple devices to be connected to a single SATA port, which increases the speed and efficiency of data transfer. This is especially beneficial for users who need to connect multiple storage devices such as hard drives or solid-state drives to their system.

The connectivity provided by a SATA Port Multiplier enables RAID (Redundant Array of Independent Disks) configurations, which further enhances the performance and data transfer rate. RAID allows multiple storage devices to work together in a coordinated manner, providing increased speed and data redundancy. This is particularly useful for users who need high-speed data processing, such as video editors or gamers.

In addition, a SATA Port Multiplier can be used with a drive enclosure to expand the storage capacity of a system. With the use of a compatible cable, multiple drives can be connected to the Port Multiplier, creating an efficient and scalable storage solution. This is especially useful for users who require large amounts of storage space, such as media professionals or those working with large databases.

The compatibility of a SATA Port Multiplier with existing SATA controllers and devices ensures that it can be seamlessly integrated into various systems. This means that users do not need to replace their current hardware in order to benefit from the increased performance and data transfer capabilities of a Port Multiplier. Additionally, the daisy-chaining feature of a Port Multiplier allows for further expansion, as multiple Port Multipliers can be connected together for even greater storage capacity and performance.

In conclusion, a SATA Port Multiplier offers enhanced performance and data transfer rate by connecting multiple devices to a single SATA port. Its compatibility, scalability, and RAID support make it an ideal choice for users who require high-speed data processing and expanded storage capabilities.

Compatibility and System Requirements

Compatibility and System Requirements

In order to utilize a SATA Port Multiplier effectively, it is important to consider the compatibility and system requirements. The key factor to consider is the compatibility between the SATA Port Multiplier and the RAID controller or host adapter being used. The RAID controller or host adapter must support Port Multiplier technology in order to enable the full functionality of the Port Multiplier.

Another important factor to consider is the speed of the Port Multiplier. Different Port Multipliers can provide different speeds depending on their specifications. It is necessary to ensure that the speed of the Port Multiplier is compatible with the speed requirements of the devices connected to it, such as hard drives or solid-state drives.

Furthermore, the use of an expander enclosure may be required to accommodate more devices and expand the storage capacity. The expander enclosure allows for scalability, as it allows for the addition of more hard drives or solid-state drives to the system. This expansion capability is crucial for users who require higher storage capacity or increased performance.

Connectivity is another important consideration. The SATA Port Multiplier must have the necessary ports and connectivity options to connect to the desired devices. It is also important to ensure that the Port Multiplier is capable of hot-swap functionality, which allows for easy replacement or addition of storage devices without the need to power down the system.

Furthermore, the Port Multiplier must be compatible with the type and length of cables being used. Different devices and systems require different types of cables, such as SATA cables or eSATA cables. It is important to choose the appropriate cables for the specific setup to ensure optimal performance and data transfer rates.

Lastly, it is worth noting that daisy-chaining multiple Port Multipliers can provide even more expansion capabilities. This allows for the connection of multiple devices using a single port on the RAID controller or host adapter, further enhancing storage capacity and scalability.

In summary, when considering the compatibility and system requirements for a SATA Port Multiplier, it is crucial to ensure compatibility with the RAID controller or host adapter, consider the speed and performance requirements, assess connectivity options and cable compatibility, and evaluate expansion capabilities through the use of an expander enclosure or daisy-chaining multiple Port Multipliers.

FAQ about topic “What is a SATA Port Multiplier and How Does it Work?”

What is a SATA port multiplier?

A SATA port multiplier is a device that allows multiple SATA drives to be connected to a single SATA port on a motherboard.

How does a SATA port multiplier work?

A SATA port multiplier works by dividing the bandwidth of a single SATA port into multiple channels, allowing multiple drives to be connected and accessed simultaneously.

What are the benefits of using a SATA port multiplier?

Using a SATA port multiplier can save space by reducing the number of SATA ports required on a motherboard. It can also improve data transfer rates by allowing multiple drives to share the available bandwidth.

Can any SATA port be used with a port multiplier?

No, not all SATA ports are compatible with port multipliers. Only SATA ports that support the Port Multiplier Command (PMC) can be used with a port multiplier.

Are there any limitations when using a SATA port multiplier?

Yes, there are some limitations when using a SATA port multiplier. The total bandwidth available to all connected drives is limited to the bandwidth of the single SATA port. Additionally, if multiple drives are accessing data simultaneously, the performance of each drive may be reduced.
