Logic gates are fundamental building blocks of digital electronics, playing a crucial role in the processing and manipulation of binary information. One such gate is the XOR (exclusive OR) gate, which produces an output signal only when the number of input signals with a logic level of 1 is odd. Understanding the inner workings of XOR gates requires delving into the realm of transistors, the tiny semiconductor devices that make up the heart of these circuits.

Transistors act as electronic switches, capable of efficiently controlling the flow of current within a circuit. In the case of XOR gates, complementary MOS (CMOS) transistors are typically used. These transistors consist of both n-type and p-type transistors, allowing for the control of both voltage and current in the circuit. By utilizing the switching capabilities of these transistors, XOR gates can effectively perform logic operations.

The basic structure of an XOR gate consists of multiple transistors arranged in a specific configuration. The inputs are connected to the gates of the transistors, controlling their conductivity. When the input signals are applied, the transistors respond accordingly, allowing or blocking the flow of current. The outputs of the transistors are then combined to produce the XOR gate’s final output signal.

Nanotechnology has played a significant role in the development and miniaturization of XOR gates and other logic gates. The use of nanoscale transistors in integrated circuits has allowed for the creation of complex digital systems on a single chip. These advancements have revolutionized the field of electronics, enabling the creation of faster and more efficient computing devices.

Contents

- 1 Logic Gates: The Building Blocks of Digital Circuits
- 2 Importance of Understanding XOR Gate Transistors
- 3 Basics of Transistors
- 4 Understanding Logic Gates
- 5 XOR Gate Transistors: Operation and Truth Table
- 6 FAQ about topic “XOR Gate Transistors: Understanding the Inner Workings of Logic Gates”
- 7 What is an XOR gate transistor?
- 8 How does an XOR gate transistor work?
- 9 What are the applications of XOR gate transistors?
- 10 Can an XOR gate transistor be used as a universal gate?
- 11 What are the advantages of using XOR gate transistors?

## Logic Gates: The Building Blocks of Digital Circuits

In the field of electronics, logic gates play a crucial role as the building blocks of digital circuits. These integrated circuits, made up of transistors and other semiconductor devices, are responsible for performing basic logical operations and processing binary information.

Logic gates operate based on Boolean algebra, a mathematical system comprising only two values: 0 and 1. This binary system is used to represent digital information, where 0 represents a low voltage or absence of current, and 1 represents a high voltage or presence of current.

One of the fundamental logic gates is the XOR gate (exclusive OR gate), which outputs a high voltage only when the number of 1 inputs is odd. It uses transistors as switches to control the flow of current, allowing for the manipulation of digital signals.

The XOR gate, like other logic gates, can be constructed from complementary metal-oxide-semiconductor (CMOS) technology. CMOS uses both p-type and n-type transistors to achieve low power consumption and fast switching speed. This technology has revolutionized the field of nanotechnology and digital electronics.

Logic gates form the backbone of digital circuits, allowing for the creation of complex systems such as microprocessors and memory chips. By combining different gates, such as AND, OR, and NOT gates, a wide range of logical functions can be realized, enabling the processing and manipulation of binary data.

Understanding the inner workings of logic gates is essential for designing and analyzing digital circuits. With the advancement of technology, logic gates continue to evolve, becoming smaller, faster, and more efficient. They are at the heart of modern electronics and form the basis of the digital world we live in today.

## Importance of Understanding XOR Gate Transistors

Transistors are fundamental components in electronics and play a crucial role in the operation of logic gates. Logic gates are building blocks of digital circuits, and understanding how they work is essential in the field of electronics.

The XOR gate, short for exclusive OR gate, is one of the most important logic gates used in digital circuit design. It takes in two binary inputs and outputs a high signal only when the number of high inputs is odd.

Comprehending the inner workings of XOR gate transistors is vital because it enables us to design and implement complex digital circuits and systems. By understanding how XOR gates work, we can construct more advanced logic functions, such as adders and multipliers, which are integral to many electronic devices.

Nanotechnology and semiconductors have revolutionized the world of electronics. By understanding XOR gate transistors, we can harness the power of nanotechnology in designing and manufacturing integrated circuits that are smaller, faster, and more efficient. XOR gates are an essential part of these circuits, and knowledge of how they function is essential for their successful implementation.

Switching in XOR gate transistors is controlled by the voltage level applied across the input terminals. This enables us to manipulate the flow of current and control the output based on the input signals. Understanding this behavior allows us to create complex logic circuits that perform the desired operations accurately.

In conclusion, understanding XOR gate transistors is of utmost importance in the field of electronics. It helps us comprehend the underlying principles of logic gates, design complex digital circuits, utilize nanotechnology, and develop advanced electronic systems. The knowledge of XOR gate transistors empowers engineers and designers to create innovative and efficient electronic devices that shape our modern world.

## Basics of Transistors

A transistor is a vital building block of modern electronics. It is a semiconductor device that can amplify or switch electronic signals and electrical power. Transistors operate on the principle of controlling the flow of current through a semiconductor material, enabling them to perform a wide range of functions in electronic circuits.

Transistors can be either NPN (Negative-Positive-Negative) or PNP (Positive-Negative-Positive) types. These transistors have three layers of semiconductor material, which form two pn junctions. The pn junctions create a barrier through which current can either flow or be blocked, depending on the voltages applied to the transistor.

The most basic function of a transistor is to act as a switch or an amplifier in digital electronic circuits. When used as a switch, a transistor can control the flow of current by either allowing it to pass through or blocking it completely. This allows for the implementation of boolean logic gates, such as AND, OR, and XOR gates, which form the basis of digital logic circuits.

Transistors are also used in the construction of integrated circuits, commonly known as chips. These chips contain multiple transistors that are interconnected to perform complex logic functions. By combining transistors, it is possible to create more sophisticated logic gates, such as NAND and NOR gates, which are essential in designing more complex digital circuits.

Furthermore, transistors can also be used as amplifiers in electronic circuits. An amplifier is a device that increases the voltage or power of a signal. By controlling the input current, a transistor can amplify an input signal to a higher voltage or power level, enabling it to drive larger loads or achieve a desired level of signal strength.

Today, nanotechnology has played a crucial role in transistor miniaturization, leading to the development of smaller and more efficient transistors. This has paved the way for the advancement of digital electronics, as transistors continue to serve as the fundamental building blocks of modern electronic devices and systems.

### What are Transistors?

Transistors are a fundamental component of modern electronics. They are tiny semiconductor devices that act as switches to control the flow of electrical current. Transistors are used in a variety of electronic devices, from computers and smartphones to televisions and radios.

In digital electronics, transistors are used to build logic gates, which are the building blocks of digital circuits. A logic gate is a fundamental unit that performs a specific Boolean function, such as AND, OR, or NOT. Transistors are the key elements in these gates, allowing them to manipulate binary data and perform logical operations.

Transistors can be configured in different ways to create different types of logic gates. One common configuration is the inverter, which is based on a single transistor. An inverter switches the binary input voltage and outputs its complement. This simple circuit is the foundation for more complex logic gates, such as the XOR gate, which is used in many digital devices.

As technology has advanced, transistors have become smaller and more efficient. Modern transistors are typically made using nanotechnology, allowing for densely packed integrated circuits. These integrated circuits, also known as chips, contain millions or even billions of transistors, enabling complex computational and processing capabilities.

Transistors use the properties of semiconductors to regulate the flow of current. They have three layers: the collector, base, and emitter. By applying a small voltage or current to the base, the transistor can control the larger current flowing between the collector and emitter. This property allows transistors to act as switches, turning the current on or off depending on the input signal.

Transistors are essential for modern electronics and have revolutionized the world of computing. Their ability to switch and control electrical currents has made them a vital component in creating the digital world we live in today.

### Types of Transistors

In the field of nanotechnology and electronics, transistors are crucial components that play a fundamental role in modern circuit design. These semiconductor devices are responsible for controlling the flow of current within a circuit, enabling the creation and operation of various logic gates.

There are different types of transistors used in electronic circuits, each with its own unique characteristics and applications. One of the most common types is the XOR gate transistor, which stands for exclusive OR. This transistor is specifically designed to perform XOR logic operations, accepting two binary inputs and producing a single binary output.

Another important type of transistor is the switching transistor. These transistors are designed to rapidly switch between two states, allowing for the creation of digital circuits. They can be used in various configurations, such as inverter circuits, amplifier circuits, and complementary metal-oxide-semiconductor (CMOS) circuits.

Furthermore, transistors can be classified based on their operating principle, such as bipolar junction transistors (BJTs) and field-effect transistors (FETs). BJTs are capable of amplifying both current and voltage signals, making them suitable for applications that require high power amplification. On the other hand, FETs operate by controlling the flow of current using an electric field, making them suitable for low-power applications.

Integrated circuits (ICs) are another important development in the field of transistors. These chips contain numerous transistors and other electronic components integrated onto a single semiconductor substrate, enabling complex functionality in a compact form factor. ICs have revolutionized the electronics industry and are used in a wide range of applications, including computers, smartphones, and automotive electronics.

In conclusion, transistors are essential building blocks in modern electronics and play a vital role in the operation of logic gates. Understanding the different types of transistors and their characteristics is crucial for designing and implementing complex digital circuits.

### Bipolar Junction Transistors (BJTs)

Bipolar Junction Transistors (BJTs) are integrated semiconductor devices that are essential in the world of digital electronics. They are widely used in boolean logic gates, switching circuits, and amplifiers.

BJTs operate based on the principles of current amplification and control. They are composed of three layers of semiconductor material: the emitter, base, and collector. Each layer is doped with specific impurities to create either p-type or n-type material. The combination of these layers forms two pn junctions, which allow the BJT to control the flow of current. This characteristic makes BJTs ideal for applications such as switching and amplification.

BJTs can function as both digital and analog devices, depending on their configuration. In digital applications, BJTs are commonly used in the design of logic gates, such as XOR and inverter gates. These gates manipulate binary inputs to produce a desired output based on boolean logic.

One of the key advantages of BJTs in logic gates is their ability to provide complementary outputs. This means that when one transistor is on, the other is off, and vice versa. This complementary behavior allows for efficient switching and reduces power consumption in digital circuits.

Furthermore, BJTs can be combined to create more complex digital circuits, such as adders and memory elements. Their high speed and low power consumption make them essential components in modern digital electronics.

With advancements in nanotechnology, BJTs have become even more miniaturized and efficient. These developments have led to the creation of smaller and more powerful electronic devices, from computers to smartphones.

Overall, bipolar junction transistors (BJTs) are fundamental components of digital electronics, playing a crucial role in the design of logic gates, switching circuits, and amplifiers. Their ability to control current flow and provide complementary outputs makes them indispensable in the world of semiconductor technology.

### Field-Effect Transistors (FETs)

**Field-Effect Transistors (FETs)** are an essential component in integrated circuits, which are the building blocks of modern electronics. FETs are a type of transistor that control the flow of electric current in a semiconductor material, such as silicon. They play a crucial role in digital electronics, where the binary nature of information is represented by the presence or absence of voltage.

In FETs, the flow of current is controlled by the application of an electric field to a “gate” electrode. This field controls the conductivity of a channel formed between two other electrodes, known as the “source” and “drain”. By varying the voltage applied to the gate, the FET can act as a switch, amplifier, or voltage-controlled resistor.

One of the key advantages of FETs in comparison to other transistors, such as bipolar junction transistors (BJTs), is their low power consumption. This makes them suitable for use in portable devices and reduces heat dissipation in electronic circuits. FETs also offer high input impedance, allowing them to interface easily with other electronic components.

FETs can be broadly classified into two main types: the *n-type* FET and the *p-type* FET. The n-type FET is characterized by an excess of negatively charged carriers, known as electrons, while the p-type FET has an excess of positively charged carriers, known as holes. The complementary nature of these types allows for the creation of complementary metal-oxide-semiconductor (CMOS) logic gates, which are the building blocks of modern digital circuits.

Logic gates, such as the inverter, AND gate, and XOR gate, are implemented using FETs in integrated circuits. These gates perform logical operations based on Boolean algebra, allowing complex digital circuits to be created. The XOR gate, in particular, is commonly used for bitwise operations and arithmetic functions in digital systems.

With the continuous advancement of nanotechnology, FETs are becoming smaller, faster, and more efficient. By shrinking the size of transistors, more can be packed onto a single chip, leading to higher processing power and increased functionality in electronic devices. Researchers are exploring new materials and fabrication techniques to push the limits of FET technology and drive forward the field of electronics.

## Understanding Logic Gates

In the world of digital electronics, logic gates are the fundamental building blocks that enable the processing and manipulation of binary data. These gates perform logical operations based on Boolean algebra, which is a mathematical system used to represent and manipulate logic. Logic gates are made up of semiconductor devices called transistors, which can amplify and switch electronic signals.

One of the most commonly used logic gates is the XOR gate, which stands for “exclusive OR”. This gate has two inputs and one output, and it produces a high voltage output only when the number of high voltage inputs is odd. The XOR gate is often used in arithmetic circuits and data storage applications.

The operation of logic gates relies on the principles of complementary metal-oxide-semiconductor (CMOS) technology. CMOS is a type of integrated circuit design that uses both NMOS (n-type metal-oxide-semiconductor) and PMOS (p-type metal-oxide-semiconductor) transistors. These transistors work together to control the flow of current and establish the desired logic levels.

Logic gates are crucial in implementing complex digital systems. By combining multiple gates, it is possible to create circuits that can perform a wide range of operations, such as addition, subtraction, and comparison. These gates can also be used to build more advanced components like multiplexers, decoders, and memory units.

In recent years, the field of nanotechnology has brought about advancements in the design and manufacturing of logic gates. With the use of nanoscale materials and structures, researchers have been able to create smaller and more efficient gates that consume less power and operate at higher speeds. This has been instrumental in the development of modern computing devices and telecommunications systems.

Overall, understanding logic gates is essential for anyone working with digital electronics. These fundamental components play a vital role in the operation of electronic devices and systems, enabling the processing and manipulation of binary data in a variety of applications.

### What are Logic Gates?

Logic gates are fundamental building blocks of digital electronics. They are physical devices or circuit elements that perform logical operations on one or more input signals to produce an output signal. These gates are based on the principles of boolean algebra, which deals with logical statements and operations.

Logic gates are responsible for switching and manipulating binary signals, which can be represented by the presence or absence of an electrical current or voltage. They can amplify or invert the input signal, depending on the specific gate function.

Logic gates are implemented using electronic components such as transistors and are typically found on an integrated circuit or chip. In recent years, advancements in nanotechnology have allowed for the creation of even smaller logic gates, enabling more complex circuits to be built on a single chip.

One of the most commonly used logic gates is the XOR gate, which stands for exclusive OR. The XOR gate outputs a true or high signal when the number of true input signals is odd. This gate is particularly useful for various applications like error detection and parity generation.

Logic gates are classified into different types based on their functions. Some common types include AND gate, OR gate, NOT gate (inverter), and NOR gate (negative OR). These gates can be combined in various ways to create complex logic circuits that perform multiple logical operations.

The operation of logic gates is based on the principles of semiconductor physics, as they are built using semiconductor materials such as silicon. The behavior of these gates is determined by the current or voltage levels at their input and output terminals, following specific rules defined by boolean algebra.

In summary, logic gates are essential components in the field of electronics, allowing for the manipulation and processing of binary signals. They are implemented using transistors and other electronic components on integrated circuits, enabling the creation of complex logic circuits with high speed and efficiency.

### Types of Logic Gates

In the field of electronics and digital circuits, logic gates are fundamental building blocks that perform Boolean operations on binary inputs to generate a binary output. There are several different types of logic gates, each with its own unique function and behavior.

One of the most widely used logic gates is the XOR gate, short for Exclusive OR gate. XOR gates have two inputs and one output, and they produce a high output only when the number of high inputs is odd. This makes XOR gates particularly useful for binary addition and digital communication systems.

Another common type of logic gate is the inverter, also known as a NOT gate. The inverter has one input and one output, and it simply produces the complement of the input. When the input is high, the output is low, and vice versa. Inverters are often used in combination with other gates to create complex circuits.

Complementary gates, such as the NAND gate and the NOR gate, are examples of universal gates that can be used to implement any Boolean function. The NAND gate produces a low output only when all of its inputs are high, while the NOR gate produces a high output only when all of its inputs are low. These gates are commonly used in integrated circuits and digital systems.

Logic gates are typically implemented using transistors, which are semiconductor devices that can amplify or switch electronic signals. Transistors are the building blocks of modern electronics and have enabled the development of advanced technologies such as nanotechnology and integrated circuits. By combining multiple transistors, logic gates can be integrated into a single chip, allowing for complex digital systems to be implemented in a compact and efficient manner.

In summary, logic gates are essential components in the field of electronics and play a critical role in the implementation of digital circuits. They enable the manipulation of binary information using Boolean operations, and they are commonly used in a wide range of applications, from simple calculators to advanced computer systems.

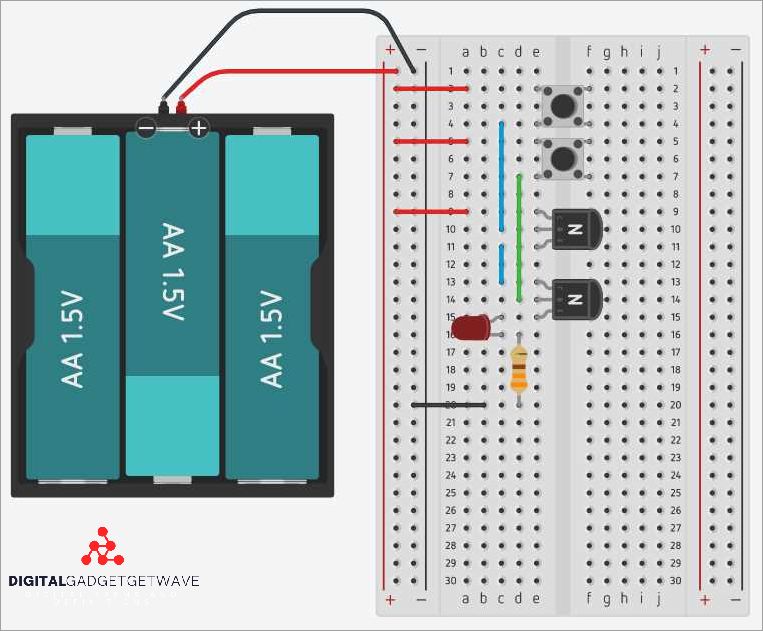

### AND Gate

An AND gate is a fundamental digital logic gate that operates on two binary inputs to produce a single binary output. It is one of the basic building blocks of digital electronics and is commonly used in electronic devices and circuits.

The AND gate performs the logical AND operation. It takes two input signals, typically represented as electrical voltages, and outputs a single signal based on the combination of the inputs. The output is high only when both input signals are high. If any of the inputs is low or both inputs are low, the output is low.

The AND gate is implemented using transistors, which are semiconductor devices that can amplify or switch electrical signals. In an AND gate, multiple transistors are used in a complementary configuration to perform the logical AND operation. Each transistor acts as a switch, controlling the flow of current through the gate.

The AND gate is a key component in integrated circuits, where multiple logic gates are fabricated on a single chip using nanotechnology. These chips can contain millions or even billions of transistors and are used in everything from computers to smartphones to control various functions and processes.

The AND gate is an essential part of boolean logic, which is used in many areas of computer science and electronics. It forms the basis for more complex logic functions and circuits, such as the XOR gate, which can be built using a combination of different gates.

In summary, the AND gate is a fundamental logic gate in digital electronics that uses transistors to perform the logical AND operation on two binary input signals. It is a key component of integrated circuits and plays a crucial role in the functioning of various electronic devices.

### OR Gate

The OR gate is a basic logic gate that operates on two inputs and produces an output. It is an electronic circuitry that implements the OR function in digital logic. The OR gate is used to combine multiple logic signals into a single output, which is high if at least one of the inputs is high.

The OR gate consists of multiple transistors that are connected in a way to perform the OR operation. The input signals are fed into the transistors, and the output is determined by the combination of the inputs. It is important to note that the OR gate is a digital circuit, meaning it operates with binary values of 0 and 1.

The OR gate operates based on the principle of voltage and current. When one or more inputs are high (1), the voltage at the output terminal is also high (1). When all inputs are low (0), the voltage at the output terminal is also low (0).

The OR gate is a crucial component in digital electronics and is commonly found in a variety of integrated circuits (ICs). It is often used in combination with other logic gates such as the AND gate, XOR gate, and inverter to create more complex circuits. The OR gate can be implemented using different technologies such as bipolar junction transistors (BJTs), complementary metal-oxide-semiconductor (CMOS), and nanotechnology.

In summary, the OR gate is a fundamental logic gate used in digital electronics. It combines multiple input signals to produce a single output based on the binary values of the inputs. The OR gate is an essential building block for creating complex logic circuits and is widely used in various applications such as amplifiers, switching circuits, and semiconductor chips.

### NOT Gate

A NOT gate, also known as an inverter, is an essential logic gate in integrated circuits (ICs) and digital electronics. It is typically made using semiconductor transistors, which act as switches for controlling the flow of current. The NOT gate is used to invert the input signal, producing the complementary output signal.

The operation of a NOT gate is based on the principles of Boolean logic. It takes a single input signal, which can be either high (represented by a voltage level greater than a specified threshold) or low (represented by a voltage level below the threshold). The NOT gate then produces the opposite of the input signal as its output, so if the input is high, the output will be low, and vice versa.

The NOT gate is often represented by the symbol “**!**” or “**¬**“. It can be implemented using various transistor configurations, such as a single transistor (e.g., a common-emitter configuration) or a combination of transistors (e.g., a complementary metal-oxide-semiconductor (CMOS) configuration). In both cases, the input signal controls the switching behavior of the transistors, resulting in the desired inversion of the output signal.

The NOT gate is a fundamental building block in digital electronics, as it is used to implement various logic functions, such as the XOR gate and the amplifier. It plays a crucial role in binary arithmetic and data processing by providing a means to manipulate and transform the input signals according to Boolean logic. By combining multiple NOT gates and other logic gates, complex digital circuits can be constructed to perform intricate operations.

In summary, the NOT gate, or inverter, is an important logic gate in electronics that performs the inversion of an input signal to produce the complementary output signal. It is implemented using semiconductor transistors and is widely used in integrated circuits and digital electronics for various applications.

### XOR Gate

The XOR gate, also known as the exclusive OR gate, is a logic gate that operates based on the principles of boolean algebra. It is an essential component in digital electronics, especially in integrated circuits and nanotechnology. The XOR gate is a fundamental building block for various complex circuits and plays a crucial role in data processing and communication systems.

The XOR gate is a two-input gate that produces an output based on the binary inputs. It follows the XOR operation, which results in a high output if the number of high inputs is odd. The gate utilizes complementary metal-oxide-semiconductor (CMOS) technology and switching transistors to achieve fast and efficient switching of current and voltage.

The XOR gate can be constructed using a combination of logic gates, such as AND, OR, and NOT gates. It consists of multiple transistors interconnected in a specific circuit configuration. The transistor-based amplifier and inverter components facilitate the logic operations required for XOR functionality.

The XOR gate has various applications in digital electronics, including error detection and correction, parity checking, data encryption, and arithmetic operations. It allows for the manipulation and processing of binary information, enabling complex calculations and decision-making within electronic systems.

In summary, the XOR gate is a vital component in the field of digital electronics. It serves as a building block for constructing more complex logic circuits and enables efficient processing of binary information. The gate’s ability to perform exclusive OR operations plays a crucial role in various applications, making it an essential part of modern electronic systems.

## XOR Gate Transistors: Operation and Truth Table

In the world of electronics and nanotechnology, logic gates are fundamental components that allow us to build complex digital circuits. One of the most important logic gates is the XOR gate, which stands for “exclusive OR”. XOR gates are built using transistors, which are semiconductor devices that can amplify or switch electronic signals.

The XOR gate works by comparing two binary inputs and producing an output based on whether the inputs are different or not. This operation is essential for many digital applications, such as error detection, encryption algorithms, and data processing.

The operation of an XOR gate can be understood by looking at its truth table. A truth table is a table that shows the output of a logic gate for all possible combinations of inputs. In the case of an XOR gate, the truth table would have four rows, corresponding to the four possible combinations of the two inputs: 0 and 0, 0 and 1, 1 and 0, and 1 and 1.

The truth table for an XOR gate shows that it produces a high output (1) when the number of high inputs is odd, and a low output (0) when the number of high inputs is even. This behavior is achieved through the configuration of transistors within the gate circuit.

An XOR gate can be implemented using a combination of other logic gates, such as AND, OR, and inverter gates. These gates utilize the complementary properties of transistors to manipulate voltage and perform the logical operations required for the XOR function.

Integrated circuits (ICs), also known as chips, often contain multiple XOR gates along with other logic gates. These chips are widely used in various electronic devices, ranging from computers and smartphones to household appliances.

In conclusion, XOR gate transistors play a crucial role in the field of digital electronics and logic design. They provide the ability to perform boolean operations on binary inputs, allowing for complex data manipulation and decision making. Understanding the operation and truth table of XOR gates is essential for anyone working with digital circuits and semiconductor technology.

### The Structure of an XOR Gate

An XOR gate, also known as an Exclusive OR gate, is a digital logic gate that performs the exclusive disjunction operation. It takes in two binary inputs and produces a binary output based on the comparison of the inputs.

The structure of an XOR gate is typically implemented using complementary metal-oxide-semiconductor (CMOS) technology. It consists of a network of transistors that function as switches to control the flow of current through the circuit.

The XOR gate consists of a combination of basic logic gates, such as inverters, NAND gates, and NOR gates. These gates are interconnected in a specific way to achieve the desired XOR functionality. In an XOR gate, the output is high (1) only when the number of input high signals is odd.

The XOR gate can be represented by a Boolean expression, which is a mathematical expression used in Boolean algebra to describe the behavior of logic gates. The Boolean expression for an XOR gate is: Z = A ⊕ B, where Z represents the output and A and B represent the two inputs.

The operation of an XOR gate is based on the principles of binary logic. It compares the values of the two input signals and produces a single output signal based on the rules of the XOR operation. If both inputs are the same (either both 0 or both 1), the output is 0. If the inputs are different (one 0 and one 1), the output is 1.

Overall, the structure of an XOR gate relies on the integration of transistors and other logic gates in a circuit to achieve the desired XOR functionality. It plays a crucial role in digital electronics and forms the building block for various complex logic circuits.

### How XOR Gate Transistors Work

An XOR gate, also known as an Exclusive OR gate, is a fundamental building block in digital electronics. It is used to combine two binary inputs and produce a single binary output based on a specific logic.

The inner workings of an XOR gate rely on semiconductor transistors. Transistors are tiny electronic components that can amplify and switch electronic signals. In an XOR gate, multiple transistors are used to create a circuit that can perform logical operations on binary values.

A typical XOR gate consists of two input transistors and two output transistors connected in such a way that the current flows in different paths depending on the input values. When the input transistors receive different binary values, the current flows through one path. When the input transistors receive the same binary values, the current flows through a different path.

The switching behavior of the XOR gate is based on the concept of complementary logic. In complementary logic, the output is high (1) when the inputs are different, and the output is low (0) when the inputs are the same.

To achieve this behavior, the XOR gate uses an inverter and a set of complementary transistors. The inverter ensures that the output is the opposite of the input, and the complementary transistors determine the particular logic behavior.

Overall, XOR gates play a crucial role in digital electronics and are essential in various applications such as arithmetic circuits, error detection, and data processing. They are an integral part of modern integrated circuits and are utilized extensively in the field of nanotechnology and advanced electronics.

### XOR Gate Truth Table

An XOR gate, also known as an Exclusive OR gate, is a digital logic gate that produces a true output (1) only when the number of true inputs is odd. The XOR gate is a fundamental building block in digital electronics, as it is commonly used in the design of arithmetic circuits, memory units, and data processing systems.

A truth table is a concise representation of the binary inputs and outputs of a logic gate. In the case of an XOR gate, the truth table consists of two inputs and one output. Here is the truth table for an XOR gate:

Input A | Input B | Output |
---|---|---|

0 | 0 | 0 |

0 | 1 | 1 |

1 | 0 | 1 |

1 | 1 | 0 |

As can be seen from the truth table, the output of an XOR gate is 1 when exactly one of the inputs is 1, and 0 when both inputs are either 0 or 1. This behavior makes the XOR gate a useful component in complex digital circuits and boolean algebra.

The XOR gate can be implemented using transistors, which are semiconductor devices capable of switching and amplifying electrical signals. In integrated circuit design, the XOR gate can be constructed using a combination of logic gates such as AND, OR, and NOT gates. This allows for the creation of more complex circuits and systems.

In conclusion, the XOR gate is an important component in digital electronics and nanotechnology. It plays a significant role in the design and functionality of various logic circuits, allowing for the manipulation of binary data and the implementation of boolean operations.

## FAQ about topic “XOR Gate Transistors: Understanding the Inner Workings of Logic Gates”

## What is an XOR gate transistor?

An XOR gate transistor is a logic gate that performs the exclusive OR operation. It has two inputs and one output. The output will be true (1) if the number of true inputs is odd, and false (0) if the number of true inputs is even.

## How does an XOR gate transistor work?

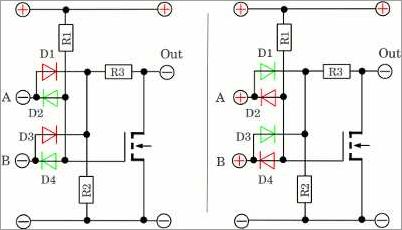

An XOR gate transistor works by using a combination of diodes and transistors. It has two inputs and one output. When both inputs are false, or when both inputs are true, the output will be false. When one input is true and the other input is false, the output will be true.

## What are the applications of XOR gate transistors?

XOR gate transistors have various applications in digital electronics. They are commonly used in error detection and correction circuits, as well as in data encryption and decryption systems. Additionally, they are used in arithmetic circuits and in the design of programmable logic arrays.

## Can an XOR gate transistor be used as a universal gate?

Yes, an XOR gate transistor can be used as a universal gate. It can be combined with other logic gates to create any other logic gate, such as AND, OR, and NOT gates.

## What are the advantages of using XOR gate transistors?

XOR gate transistors offer several advantages. They are relatively simple to build and can be easily integrated into complex digital circuits. They have low power consumption and high noise immunity, making them suitable for use in high-speed applications. Additionally, they can be used for both digital and analog operations.
