Understanding Cisco VTP: Advantages, Setup, and Problem Solving

network administrators, other switches, switches domain, VLAN database, VLAN information

Understanding Cisco VTP: Benefits, Configuration, and Troubleshooting

Networking and switching are critical components in any modern IT infrastructure. Cisco, a leading networking technology provider, offers a range of protocols to simplify the management of Virtual LANs (VLANs) in large-scale network deployments. One such protocol is the VLAN Trunking Protocol (VTP), which enables efficient distribution of VLAN configuration across multiple switches in a domain.

VTP operates at the data link layer of the OSI model and allows network administrators to create, delete, and modify VLANs across a network. By using VTP, administrators can maintain a consistent VLAN database across switches, reducing the chance of misconfiguration and enhancing network reliability. VTP also supports VLAN pruning, which prevents unnecessary broadcast traffic from being forwarded on trunks.

Cisco VTP offers three operational modes: server, client, and transparent. The server mode is used to configure and manage VLANs, while the client mode receives VLAN configuration updates from the VTP server. The transparent mode allows the switch to forward VTP messages but does not participate in automatic VLAN database synchronization. Administrators should carefully configure the VTP mode on each switch to avoid any unintended changes to the network topology.

A fundamental concept in VTP is the notion of a VTP domain. Each switch in a VTP domain must have the same domain name configured to participate in VTP exchanges. Additionally, one switch in the VTP domain is designated as the VTP server and is responsible for the propagation of VTP updates. The VTP server is considered authoritative, meaning its VLAN database is used as the source of truth for VLAN information.

In conclusion, Cisco VTP provides significant benefits in the management of VLANs in large-scale network deployments. By utilizing VTP, network administrators can ensure consistency in VLAN configuration, reduce misconfiguration, and enhance network reliability. Furthermore, with the ability to implement VLAN pruning, unnecessary broadcast traffic can be eliminated. Understanding VTP configuration and troubleshooting techniques is essential for maintaining a robust and efficient network infrastructure.

What is VTP

VLAN Trunking Protocol (VTP) is a vlan-based protocol used in Cisco switches to simplify the configuration and management of VLANs in a switched network. It allows for automatic propagation of VLAN information across all switches in a VTP domain, reducing the need for manual configuration on each individual switch.

VTP operates at the data link layer and is responsible for VLAN database synchronization between switches. It enables the creation, deletion, and modification of VLANs on one switch, which are then automatically propagated to all other switches in the VTP domain.

VTP supports three modes of operation: server, client, and transparent mode. In server mode, a switch can create, modify, and delete VLANs and advertise this information to other switches. In client mode, a switch can only receive and synchronize VLAN information from a server. In transparent mode, a switch does not participate in VTP advertisements and does not synchronize VLAN information, resulting in locally significant VLANs.

VTP also supports the concept of VLAN pruning, which reduces unnecessary multicast traffic by restricting the propagation of broadcast, unicast, and multicast frames to only those switches that have active ports in a specific VLAN. This enhances network performance and efficiency by eliminating unnecessary traffic in VLANs that do not require it.

An important consideration when using VTP is the concept of the VTP domain. A VTP domain defines a logical group of switches that share the same VTP configuration, including the VLAN database. All switches in a VTP domain must have the same domain name and password, and the same VTP version must be used.

Cisco VTP is a proprietary protocol used in Cisco networking devices, such as routers and switches. It enables efficient and centralized management of VLANs in a network, simplifying the configuration process and enhancing network scalability. With VTP, network administrators can easily add, modify, or delete VLANs on one switch and have those changes automatically applied to all other switches in the VTP domain, ensuring consistency and reducing the risk of configuration errors.

VTP Versions and Features

The Virtual LAN Trunking Protocol (VTP) is a Cisco proprietary protocol that enables the management of VLANs across a network of interconnected switches. It simplifies switch configuration by allowing switches to share VLAN information, including VLAN names, numbers, and attributes, through a VTP domain.

VTP has different versions and features that provide various capabilities for VLAN management in Cisco networking environments. The VTP versions include VTP version 1, VTP version 2, and VTP version 3.

VTP version 1 is the oldest version and supports only vlan-based switching. It allows switches to propagate VLAN information in a VTP domain, but it does not support the advertisement of the VLAN database. Therefore, if a switch with a higher VLAN configuration revision number is introduced, it overwrites the VLAN database on other switches. This can result in the loss of VLAN information and disrupt network connectivity.

VTP version 2 improves upon version 1 by introducing support for VLAN pruning, which allows switches to dynamically remove unnecessary VLAN traffic from trunk links. It also enables the advertisement of the VLAN database, preventing the loss of VLAN information when a switch with a higher revision number is added to the network.

VTP version 3 is the latest version and provides additional features and enhancements. It introduces support for multiple instances of VTP within a domain, allowing for greater flexibility in VLAN management. It also introduces support for transparent mode, which enables switches to forward VTP updates but not participate in the VTP domain. This mode is useful in scenarios where switches need to be isolated from VTP updates.

Overall, VTP is a crucial protocol for managing VLANs in Cisco networking environments. Understanding the different VTP versions and features can help network administrators effectively configure and troubleshoot VTP to ensure optimal network performance and VLAN management.

Benefits of Cisco VTP

Benefits of Cisco VTP

The Cisco VLAN Trunking Protocol (VTP) provides numerous benefits for network administrators. Here are some of the key advantages of using VTP:

  1. Efficient Configuration: With VTP, network administrators can conveniently manage VLAN configurations across all switches in the network by configuring the VTP server switch. This eliminates the need to individually configure each switch, saving time and effort.
  2. Simplified Topology: VTP allows for the creation of VLANs on a single switch, which are then propagated to all other switches in the VTP domain. This simplifies the network topology and ensures consistent VLAN configuration throughout the network.
  3. Improved STP Stability: VTP helps in maintaining consistent Spanning Tree Protocol (STP) configuration across all switches within the VTP domain. This ensures that the STP topology remains stable and prevents network loops that can cause network downtime.
  4. Centralized VLAN Database: VTP allows the VTP server switch to maintain a centralized database of VLAN information, which is then shared with all other switches in the domain. This centralized management simplifies the administration of VLANs and ensures consistency.
  5. Domain-Based VLAN Configuration: VTP operates on a per-domain basis, allowing separate VTP domains to coexist on the same physical network. This enables different VLAN configurations to be easily implemented for different departments or user groups, enhancing network flexibility.
  6. VLAN Trunking: VTP supports the automatic configuration of VLAN trunks between switches, enabling the transmission of VLAN information between switches without the need for manual configuration. This simplifies the setup of inter-switch trunk links.
  7. VLAN-Based Routing: VTP supports VLAN-based routing, allowing routers to be directly connected to switch ports associated with specific VLANs. This enables efficient routing between VLANs at the Layer 3 level, improving network performance and scalability.

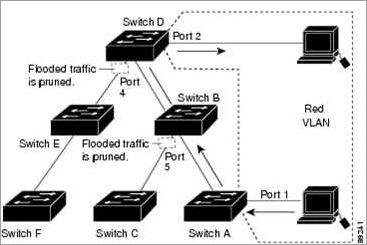

  8. Enhanced Switching Efficiency: VTP supports VLAN pruning, which dynamically restricts broadcast and multicast traffic to only the switches and ports that require the specific VLAN traffic. This significantly reduces unnecessary traffic and improves overall network efficiency.
READ MORE  Protect Your Privacy: Tips on Staying Anonymous with Your Facebook Posts

In conclusion, Cisco VTP offers a range of benefits that simplify the configuration, enhance network topology, improve STP stability, and provide centralized management of VLANs. It enables efficient VLAN configuration, trunking, and routing, leading to enhanced network performance and scalability.

Simplified Network Management

The Cisco VTP (VLAN Trunking Protocol) provides an authoritative and centralized way to manage VLANs in a network. By configuring one switch as the VTP server, all other switches in the network can receive and synchronize their VLAN database based on the server’s configuration. This simplifies the management of VLANs across the network, as changes made on the VTP server will automatically propagate to other switches.

Switches that are configured in VTP client mode will receive the VLAN database updates from the VTP server. This allows for consistent configuration across all switches in the network, reducing the chances of misconfigurations or inconsistencies. Additionally, VTP supports VLAN-based trunking, which allows for efficient use of network resources by only forwarding necessary VLAN traffic over trunk links.

In a VTP transparent mode, the switch does not participate in VTP updates, but it forwards VTP updates to other switches. This can be useful in scenarios where the switch needs to be isolated from the VTP domain or when there are multiple VTP domains in the network. The transparent mode allows for more flexibility in the network design and configuration.

The VTP domain is a logical grouping of switches that share the same VTP configuration. Within the VTP domain, switches can exchange VLAN information and synchronize their VLAN databases. This simplifies the configuration process, as VLANs only need to be created on the VTP server, and they will automatically be propagated to other switches in the domain.

Along with VLAN management, VTP also supports other features such as VLAN pruning, which allows switches to prune unnecessary VLAN traffic from trunk links, reducing network congestion. VTP also integrates with other networking protocols, such as STP (Spanning Tree Protocol), to ensure optimal network performance and reliability.

The configuration of VTP on Cisco switches is straightforward and can be done through the VLAN database mode or through the CLI. By understanding the benefits and operation of VTP, network administrators can simplify the management of VLANs in their networks and ensure consistent and efficient switching across the entire infrastructure.

Reduced Configuration Errors

One of the significant benefits of using Cisco VTP (VLAN Trunking Protocol) is the reduced configuration errors that it provides in a layer 2 switching network. With VTP, network administrators can centrally manage VLAN creation, deleting, and modification, ensuring consistency across all switches in the VTP domain.

By using VTP, the switch will automatically update its VLAN database based on the changes made by an authoritative switch. This eliminates the need for manually configuring each switch and reduces the chances of configuration errors. It also makes it easier to maintain a consistent VLAN-based network topology.

VTP operates in different modes, including the server and client modes. In server mode, a switch has the authority to create, modify, and delete VLANs within a VTP domain. In client mode, the switch receives the VLAN database updates from the VTP server. This helps in avoiding inconsistency and reduces the chances of configuration errors by having an authoritative source for VLAN management.

VTP also supports VLAN pruning, which prevents unnecessary VLAN traffic from being sent across switches that do not have any ports belonging to that VLAN. This reduces the chances of errors in network traffic handling and improves overall network performance.

In addition to switch configuration errors, VTP also reduces potential errors in the configuration of spanning tree protocol (STP). By providing a consistent VLAN-based network topology, VTP ensures that STP configurations are consistent across switches in the VTP domain. This helps in avoiding misconfigurations that can lead to network loops or suboptimal traffic paths.

Efficient Use of VLANs

In Cisco networking, VLANs (Virtual Local Area Network) play a crucial role in segmenting and managing network traffic within a layer 2 switching topology. By dividing a large network into smaller, separate VLANs, network administrators can achieve greater efficiency, security, and flexibility in managing their network infrastructure.

VLANs can be configured manually on each switch or dynamically using Cisco’s VLAN Trunking Protocol (VTP). With VTP, switches exchange VLAN information automatically, reducing the time and effort required for manual configuration. Additionally, VTP ensures consistency in VLAN configuration by designating one switch as the “VTP server” or authoritative source of VLAN information. This server pushes the VLAN database to other switches in the VTP domain, simplifying the configuration process and maintaining uniformity across the network.

To further improve efficiency, VLAN pruning can be enabled on Cisco switches. With pruning, each switch only forwards VLAN traffic to the ports that require it, reducing unnecessary broadcast or multicast traffic and optimizing network bandwidth. This feature is particularly useful in environments where VLANs are not required on every switch, such as branch offices or access layer switches.

Another important consideration for efficient VLAN use is the proper configuration of trunking. Trunking allows multiple VLANs to be carried over a single physical link between switches, maximizing the use of available network resources. By configuring the trunk ports correctly, network administrators can ensure that the appropriate VLANs are allowed to traverse the link, preventing unnecessary broadcast domain expansion and ensuring efficient allocation of network resources.

When designing a network topology with VLANs, it is also crucial to consider Spanning Tree Protocol (STP) configuration. STP eliminates network loops and provides redundancy by blocking some switch ports to create a loop-free topology. By properly configuring STP, administrators can ensure that VLAN traffic flows efficiently without creating any broadcast storms or other network issues.

In addition to layer 2 switching, VLANs can also be extended to layer 3 with the use of a Layer 3 switch or a router. This enables inter-VLAN communication and routing between different VLANs, allowing for more efficient and secure traffic flow within the network.

Overall, efficient use of VLANs in a Cisco network can greatly enhance network performance, security, and scalability. By properly configuring VTP, pruning, trunking, and STP, network administrators can optimize the allocation of network resources, reduce unnecessary traffic, and ensure effective communication between different VLANs.

Configuration of Cisco VTP

Cisco VTP (VLAN Trunking Protocol) is a protocol that enables the management of VLANs (Virtual Local Area Networks) in a Cisco network. VTP allows for the centralization of VLAN management by providing a way to configure VLANs on a switch and then propagate that configuration to other VTP-enabled switches in the same domain.

To configure VTP on a Cisco switch, you need to set the VTP mode and configure the VTP domain. The VTP mode can be one of three options: server, client, or transparent. The server mode enables VLAN configuration and synchronization, the client mode receives VTP updates, and the transparent mode forwards VTP updates but does not synchronize VLAN information.

To set the VTP mode, you can use the “vtp mode” command followed by the desired mode. For example, to set the VTP mode to server, you would enter the command “vtp mode server” in the global configuration mode. Similarly, you can use the “vtp domain” command to configure the VTP domain. The VTP domain is a case-sensitive name that identifies a VTP administrative domain.

Once the VTP mode and domain are configured, the switch will participate in VTP by sending and receiving VTP updates. The updates contain information about VLANs, including their names, IDs, and associated parameters. The switch will also receive VTP updates from other switches in the same domain, allowing it to synchronize its VLAN database with the rest of the network.

READ MORE  Hz to THz: Understanding the Conversion and Importance

It’s important to note that the switch with the highest configuration revision number in the VTP domain is considered the authoritative source for VTP updates. This means that any changes made to VLANs on the authoritative switch will be propagated to the other switches in the domain.

In addition to VLAN configuration and synchronization, VTP also supports other features such as VLAN-based Spanning Tree Protocol (STP) and pruning. VLAN-based STP allows each VLAN to have its own spanning tree instance, improving network stability and performance. Pruning, on the other hand, allows the switch to selectively prune VLANs from trunk links, reducing unnecessary broadcast traffic.

In summary, the configuration of Cisco VTP involves setting the VTP mode and domain on the switch, which determines its role in the VTP network. The switch then participates in VTP by sending and receiving VTP updates, synchronizing its VLAN database with other switches in the same domain. VTP also provides additional features such as VLAN-based STP and pruning, which contribute to efficient and scalable network switching.

Configuring VTP Modes

Configuring VTP Modes

VLAN Trunking Protocol (VTP) is a Cisco proprietary protocol that allows for the management of VLANs in a Layer 2 switching network. The VTP mode refers to the role that a switch assumes in VTP configuration and operation.

There are three VTP modes: server, client, and transparent. The server mode is used to create, modify, and delete VLANs on the switch. It also advertises and synchronizes VLAN information to other switches in the same VTP domain. The client mode, on the other hand, receives and synchronizes VLAN information from VTP server switches. The transparent mode doesn’t advertise or synchronize VLAN information, instead, it forwards VTP messages received on its trunk ports.

When configuring VTP, it is important to set the correct VTP mode on each switch. This can be done using the vtp mode command in Cisco IOS. For example, to set a switch to server mode, the command vtp mode server is used.

In addition to the three main VTP modes, there are two other modes that can be configured: off and client-to-server. The off mode disables VTP on the switch, while the client-to-server mode allows a switch in client mode to act as a server by creating, modifying, and deleting VLANs locally.

It is important to note that VTP is a VLAN-based protocol and operates at Layer 2 of the networking stack. The VTP protocol is responsible for the exchange of VLAN information between switches in a VTP domain. This includes information about VLAN names, IDs, and parameters. By properly configuring VTP modes, switches can participate in the VTP database and ensure consistent VLAN configuration across the network.

In addition to VTP modes, other configuration options such as VTP pruning, VTP version, and VTP password can also be set on Cisco switches to enhance the security and functionality of the VTP protocol.

Domain Configuration and Passwords

Configuring the domain of a Cisco VTP is an important step in ensuring efficient and secure VLAN management. The domain allows multiple switches to share VLAN information, creating a consistent network topology and reducing administrative overhead. To configure the VTP domain, the switch must be in VTP server or transparent mode.

In VTP server mode, the switch becomes the authoritative source of the VTP database for the configured domain. It can create, modify, and delete VLANs, as well as propagate these changes to other switches within the same domain. The switch can also be configured with a password to secure the VTP advertisements exchanged between switches.

When configuring the VTP domain, it is important to choose a unique name that accurately reflects the network. The domain name must match on all switches within the VTP domain to ensure proper communication. Additionally, setting a password adds an extra layer of security to the VTP protocol, preventing unauthorized access and modifications to the VLAN database.

If a switch is operating in transparent mode, it will not participate in VTP updates or advertise VLAN information. However, it can still act as a trunking switch, forwarding VTP advertisements between switches. This configuration can be useful in scenarios where VLAN-based routing or VTP pruning is required.

To summarize, proper configuration and management of the VTP domain and passwords are essential for effective VLAN management and secure networking. By configuring the appropriate domain name and password, network administrators can ensure consistent VLAN deployment and protect against unauthorized changes to the VLAN database.

VLAN Configuration and Propagation

VLAN Configuration and Propagation

In Cisco networking, VLAN (Virtual Local Area Network) configuration and propagation are important aspects of managing a network. VLANs allow the segmentation and management of a network by creating separate broadcast domains at the layer 2 switching level. This helps in improving network performance and security.

To configure VLANs on a Cisco switch, the administrator can use various methods. One common method is to use the VLAN Trunking Protocol (VTP), which allows for the propagation of VLAN configuration information across multiple switches in a VTP domain. The VTP protocol maintains a centralized database of VLAN configurations, making it easier to manage VLANs across the network.

When configuring VLANs, the administrator can set the VLAN mode to either “transparent” or “client” on each switch. In transparent mode, the switch does not participate in VTP and does not forward VTP advertisements. In client mode, the switch receives VTP advertisements from other switches in the domain and updates its VLAN database accordingly.

Propagation of VLAN configurations is essential for proper operation of the network. It ensures that all switches in the domain have the same VLAN configuration, preventing any inconsistencies that could lead to network connectivity issues. Additionally, VLAN configuration propagation also enables VLAN-based Spanning Tree Protocol (STP) instances, which help in preventing loops and ensuring network stability.

It is important to note that not all switches need to be VTP-enabled. In cases where switches need to propagate VLAN information but without participating in VTP, they can be set to “VTP Transparent” mode. This allows them to forward VTP advertisements without modifying their VLAN database. This can be useful in scenarios where there is a mix of VTP-capable and non-VTP-capable switches in the network.

Troubleshooting Cisco VTP

The Cisco VLAN Trunking Protocol (VTP) is a layer 2 networking protocol that enables the automatic synchronization of VLAN information between switches in a domain. However, there may be instances when troubleshooting is required to resolve issues related to VTP configuration or operation.

One common issue is when the VTP domain name does not match on all switches in the network. This can result in switches not sharing VLAN information and causing inconsistencies in VLAN configuration. To troubleshoot this, check the VTP domain name configuration on each switch and ensure they are configured to be the same.

Another issue that can arise is when a switch is not in the correct VTP mode. There are three VTP modes: server, client, and transparent. Servers are responsible for managing VLAN information, clients receive and store VLAN information, and transparent switches do not participate in VTP updates. To troubleshoot this, check the VTP mode configuration on each switch and ensure they are set correctly based on the desired network topology.

In some cases, a switch may not be receiving VTP updates due to a misconfigured trunk connection. Trunk ports are required to allow VTP traffic to pass between switches. To troubleshoot this, check the trunk configuration on the switches and ensure they are properly configured for VTP traffic.

If VLANs are not being pruned properly, it can result in unnecessary traffic on the network. VTP pruning allows switches to dynamically prune VLANs from trunk links that do not have any ports belonging to that VLAN. To troubleshoot this, check the VTP pruning configuration on the switches and ensure it is enabled where necessary.

READ MORE  Uncover the World of VPI: A Comprehensive Guide to Virtual Private Interconnects

Finally, if a switch is not functioning as the authoritative switch for VTP updates, it can lead to inconsistencies in the VTP database. The authoritative switch is responsible for propagating VTP updates to other switches in the domain. To troubleshoot this, check the VTP configuration on the switches and ensure the desired switch has a higher VTP configuration revision number.

Common VTP Issues

When working with Cisco VTP, there are several common issues that can arise. These issues can impact the network’s VLAN configuration and cause connectivity problems. It is important to be aware of these issues and know how to troubleshoot them effectively.

  1. VTP Mode Mismatch: One of the most common issues is a mismatch in the VTP mode between switches. Each switch in a VTP domain should be configured with the same VTP mode (server, client, or transparent). If there is a mode mismatch, it can result in inconsistencies in the VLAN configuration.
  2. Incorrect VTP Domain Configuration: Another common issue is an incorrect VTP domain configuration. All switches within a VTP domain should have the same domain name configured. If there is a mismatch in the domain name, VLAN information will not be synchronized correctly.
  3. Incorrect VTP Version: VTP version mismatch can also cause problems. The VTP version should be consistent across all switches within a VTP domain. If there is a version mismatch, VLAN updates may not be propagated correctly, leading to inconsistencies in the VLAN configuration.
  4. VTP Pruning: VTP pruning is a feature that allows switches to dynamically remove unnecessary VLANs from trunk links. However, if VTP pruning is not properly configured, it can result in VLANs being pruned unintentionally, causing connectivity issues for devices connected to those VLANs.
  5. Incorrect VTP Transparent Mode: In VTP transparent mode, the switch does not participate in VTP updates but will forward VTP advertisements received from other switches. If a switch is mistakenly configured in transparent mode, it can prevent VLAN information from being updated or synchronized with other switches in the network.
  6. STP Issues: Spanning Tree Protocol (STP) is another important protocol in a Layer 2 network. If there are STP issues, such as incorrect bridge priorities or misconfigured port roles, it can affect VTP operation and lead to connectivity problems.
  7. Incorrect VTP Configuration Revision: Each VTP domain has a configuration revision number, which is incremented every time a change is made to the VLAN database. If the configuration revision number is incorrect or inconsistent across switches, VTP updates may not be propagated correctly.

These common VTP issues can impact the overall VLAN configuration and network connectivity. It is important to carefully configure and maintain VTP settings to avoid these problems and ensure smooth operation of the network.

Verification and Monitoring Commands

When it comes to verifying and monitoring the Cisco VTP configuration and status, there are several commands that can be used. These commands provide valuable information about the VTP domain, database, and configuration.

The “show vtp status” command displays the VTP mode, domain, configuration revision, and the status of the VTP protocol. It also shows whether the switch is acting as a VTP server, client, or transparent node. This information can be useful in understanding the role of each switch in the VTP domain.

The “show vlan” command is another useful command that shows the VLANs that have been configured on the switch. It provides information about the VLAN ID, name, status, and type. This command can be used to verify if the VLANs are being advertised and synchronized correctly across the VTP domain.

The “show vtp counters” command provides statistics about the VTP advertisements sent and received by the switch. It displays information such as the number of VTP advertisements sent/received, the number of VLAN create/delete advertisements, and the number of VTP advertisements dropped due to pruning. This command can be helpful in troubleshooting VTP-related issues.

The “show vtp domain” command displays the VTP domain name and shows if the switch is the VTP server for that domain. It also provides information about the VTP version and the VTP administrative password, if one has been configured.

Another useful command is the “show vtp topology” command. This command displays the topology Distribution Protocol (TDP) information for VTP. It shows the VTP domain, the MAC address of the distribution switch, and the number of VTP updates sent and received. This command can be used to troubleshoot issues related to the VTP distribution.

In addition to these commands, there are also commands available to verify and monitor other aspects of the Cisco VTP configuration, such as VLAN pruning and STP (Spanning Tree Protocol) information related to VTP. These commands can provide valuable insights into the VTP operation and help troubleshoot any issues that may arise.

Troubleshooting Tips and Techniques

When it comes to troubleshooting VLAN Trunking Protocol (VTP) issues, having a solid understanding of the VTP domain, mode, and configuration is crucial. Start by verifying the VTP domain name on all switches in the topology to ensure they are consistent. Inconsistent domain names can prevent VTP updates from being propagated properly.

Another important consideration is the VTP mode. Make sure that all switches are configured with the correct VTP mode – server, client, or transparent. A common mistake is having multiple switches in server mode, which can lead to unintended changes to the VTP database. It’s important to have one switch designated as the authoritative VTP server to control the VTP updates.

Check the VTP version being used and ensure that all switches in the topology are using the same version. Using different VTP versions can cause compatibility issues and prevent VTP updates from being communicated effectively.

Verify the VTP pruning configuration on the switches. VTP pruning helps reduce unnecessary flooding of VLAN information and improves network bandwidth utilization. Make sure that VTP pruning is enabled on the appropriate switches and VLANs to optimize the network performance.

If there are issues with VLANs not being propagated properly, check the trunking configuration between switches. Ensure that the correct VLANs are allowed on the trunk ports and that the trunking protocol, such as IEEE 802.1Q or ISL, is configured correctly on both ends of the trunk.

If the VTP database is not being updated or synchronized, check for any connectivity issues between the VTP server and the other switches in the domain. Verify that the VTP server is reachable and that there are no network connectivity problems that could prevent VTP updates from being sent or received.

Finally, consider the Layer 3 routing configuration if there are any issues with inter-VLAN communication. Verify that the router interfaces connecting to the switches have the correct VLANs configured and that the routing protocol, such as OSPF or EIGRP, is functioning properly.

By following these troubleshooting tips and techniques, network administrators can effectively diagnose and resolve VTP-related issues to ensure a stable and efficient network environment.

FAQ about topic “Understanding Cisco VTP: Advantages, Setup, and Problem Solving”

What is VTP and why is it important in Cisco networking?

VTP (VLAN Trunking Protocol) is a Cisco proprietary protocol that helps in managing VLANs across a network infrastructure. It allows for easy configuration and propagation of VLAN information to other switches in the network, saving time and eliminating the need for manual configuration on each switch. VTP is important in Cisco networking because it simplifies VLAN management, improves network scalability, and reduces the chances of misconfigurations.
