Understanding Time Domain Reflectometry: A Powerful Tool for Measuring Transmission Line Impedance

cable length, length cable, measure impedance, transmission line, transmission lines

Understanding Time Domain Reflectometry: A Powerful Tool for Measuring Transmission Line Impedance

Time domain reflectometry (TDR) is a technique used to measure the impedance of a transmission line or cable. It is based on the principle of sending a pulse signal down the cable and analyzing the reflections that occur as a result of impedance changes along the length of the cable.

The main advantage of time domain reflectometry is its ability to accurately detect and locate faults or impedance discontinuities in the cable. By analyzing the waveform of the reflected signal, TDR can provide valuable information about the characteristic impedance and the cable-pair length.

A reflectometer, the device used to perform time domain reflectometry, sends a short pulse of electrical energy down the cable and measures the time it takes for the reflected pulse to return. The difference in time between the original pulse and the reflected pulse is used to calculate the distance to the point of reflection.

The accuracy of time domain reflectometry depends on the quality of the waveform and the resolution of the measurement. By using advanced algorithms and signal processing techniques, modern TDR devices can achieve high levels of accuracy, making them a powerful tool for diagnosing transmission line issues and ensuring optimum performance.

The Basics of Time Domain Reflectometry

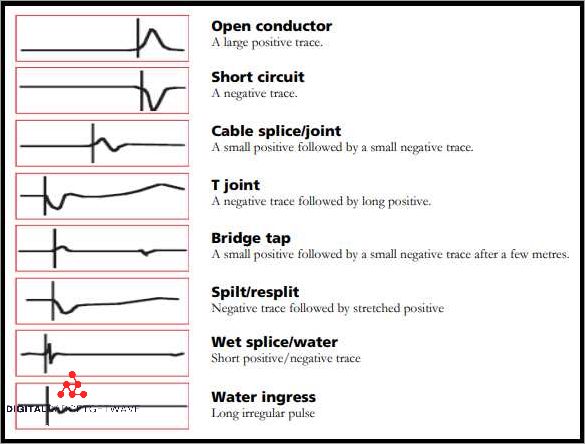

The Basics of Time Domain Reflectometry

Time domain reflectometry (TDR) is a technique used to measure the impedance of a transmission line. It involves sending a pulse of electromagnetic energy down the line and analyzing the reflections that occur when the pulse encounters changes in impedance along the line.

A reflectometer, or TDR instrument, is used to generate the pulse and measure the reflections. The reflectometer sends a short electrical pulse into the transmission line and measures the time it takes for the reflections to return. By analyzing the characteristics of the reflections, including their amplitude and the time it takes for them to return, the reflectometer can determine the impedance of the line.

Measuring impedance with TDR is important for several applications, including testing cables and cable pairs for faults, and characterizing the performance of a transmission line. TDR can accurately locate faults such as breaks or short circuits along the line by analyzing the waveform of the reflections.

The accuracy of TDR measurements depends on the length of the transmission line and the time resolution of the reflectometer. Shorter lines and higher-resolution reflectometers allow for more precise measurements. TDR can measure impedance with high accuracy, typically within a few percent.

TDR is a powerful tool for understanding the behavior of transmission lines. By analyzing the reflection waveform, it is possible to determine the quality and integrity of the line. This information can be used to optimize the performance of the transmission line and troubleshoot any issues that may arise.

In conclusion, time domain reflectometry is a valuable technique for measuring transmission line impedance. It allows for accurate and precise measurements by analyzing the reflections that occur when a pulse is sent down the line. TDR is widely used in various industries, including telecommunications, electrical engineering, and network troubleshooting.

Principles and Operation of Time Domain Reflectometry

Time Domain Reflectometry (TDR) is a powerful technique used for measuring the impedance of transmission lines, such as cables. It operates on the principle of sending a signal down the cable and measuring the reflections that occur as the signal encounters changes in impedance along the length of the cable.

The accuracy of TDR measurements relies on the measurement of the time it takes for the reflection to return to the source. By analyzing the waveform of the reflected signal, information about the impedance characteristics of the cable-pair can be obtained.

TDR works in the time-domain, where a short pulse is sent down the cable and the reflected pulse is measured. The reflected pulse represents the sum of all the reflections that occur along the length of the cable. By analyzing the amplitude and timing of the reflected pulse, the impedance of the cable can be calculated.

The reflectometer used in TDR consists of a pulse generator, a sampling oscilloscope, and a wave analyzer. The pulse generator generates a short pulse and injects it into the cable. The sampling oscilloscope captures the waveform of the reflected pulse. The wave analyzer then processes the waveform data to calculate the impedance of the cable.

One of the key benefits of TDR is its ability to accurately measure the impedance of transmission lines even when the length of the cable is unknown. This makes it ideal for troubleshooting and diagnosing issues in communication and networking systems. By measuring the reflections at different points along the cable, the location of impedance mismatches or faults can be identified.

In conclusion, TDR is a powerful technique for measuring the impedance of transmission lines. By using time-domain reflectometry, accurate measurements can be obtained by analyzing the reflections that occur along the length of the cable. This technique is widely used in various industries for troubleshooting and maintaining communication systems.

Advantages and Limitations of Time Domain Reflectometry

Time Domain Reflectometry (TDR) is a powerful tool for measuring transmission line impedance and has several key advantages. Firstly, TDR allows for non-intrusive measurement, meaning that it does not require physical contact with the cable or transmission line being tested. This is particularly useful when dealing with high voltage or hazardous environments where direct measurement may not be possible.

Another advantage of TDR is its ability to accurately measure the impedance of a cable or transmission line. By analyzing the reflection of a waveform sent down the cable, a TDR reflectometer can determine the characteristic impedance, cable-pair length, and even pinpoint faults or breaks in the line. This level of accuracy allows for precise troubleshooting and maintenance of transmission systems.

TDR also offers the advantage of quickly identifying the location of a fault or reflection in the cable. By analyzing the time it takes for a reflection to return, the reflectometer can determine the distance to the fault. This saves time and effort in troubleshooting and repairs, as the exact location of the issue can be easily identified.

However, TDR does have its limitations. The accuracy of the measurement can be affected by the presence of multiple reflections or echoes in the cable, which can distort the signal and make it difficult to interpret. TDR is also limited in its ability to accurately measure the impedance of cables that have irregular or non-uniform characteristics.

In conclusion, Time Domain Reflectometry is a powerful and versatile tool for measuring transmission line impedance. Its ability to non-intrusively measure impedance, accurately locate faults, and quickly troubleshoot transmission systems makes it an invaluable tool for engineers and technicians. However, its accuracy can be affected by certain factors and it may not be suitable for all types of cables or lines.

Applications of Time Domain Reflectometry

Time Domain Reflectometry (TDR) is a powerful measurement technique used extensively in the field of transmission line analysis. It employs the principle of measuring reflections in a time-domain waveform to accurately determine the impedance characteristics of a cable or transmission line.

One of the primary applications of TDR is in cable fault locating. By sending a short duration pulse along a cable, TDR can accurately measure the time it takes for the reflected pulse to return. This time measurement can then be used to calculate the distance to the fault location. TDR can detect faults such as breaks, opens, and shorts in cables, allowing for quick and efficient troubleshooting.

READ MORE  Understanding Call Forwarding: A Comprehensive Guide with Tips for 2021

TDR is also used in the measurement of cable length. By analyzing the reflected waveform, TDR can determine the length of the cable by measuring the time it takes for the reflection to occur. This is useful in various industries such as telecommunications, where knowing the length of a cable is essential for proper installation and maintenance.

Another application of TDR is in the characterization of cable-pair impedance. By analyzing the reflections along the cable, TDR can provide accurate measurements of the impedance at different points. This is crucial for ensuring proper signal transmission and avoiding mismatched impedance, which can result in signal degradation and loss.

TDR can also be used for general waveform analysis. By examining the reflections in the time-domain signal, TDR can provide insights into the quality of the signal and identify any abnormalities or deviations from the expected waveform. This is crucial for maintaining signal integrity and ensuring accurate data transmission.

In summary, Time Domain Reflectometry is a versatile technique with various applications in the field of transmission line analysis. From fault locating and cable length measurement to impedance characterization and waveform analysis, TDR provides accurate and valuable information for ensuring the proper functioning of transmission lines and cables.

Transmission Line Impedance Measurement

The measurement of transmission line impedance is a crucial step in determining the characteristics of a cable-pair or detecting faults in the cable. It provides valuable information about the reflection and attenuation characteristics of the cable. One of the techniques used for this measurement is Time Domain Reflectometry (TDR), which is based on the analysis of the reflection of a pulse signal in the time domain.

The TDR technique involves sending a pulse signal down the transmission line and measuring the reflection that occurs when the pulse encounters a change in impedance, such as a fault or the end of the cable. By analyzing the waveform of the reflected pulse, information about the length and impedance of the cable can be obtained. This measurement is particularly useful for detecting faults, as it allows for accurate pinpointing of the location and nature of the fault.

Impedance measurement using TDR offers several advantages. Firstly, it provides a quick and non-destructive method of determining the characteristic impedance of a cable. Secondly, it allows for accurate measurement of the impedance along the entire length of the cable, providing a detailed picture of any variations that may exist. Thirdly, TDR offers high accuracy in impedance measurement, allowing for precise characterization of the cable’s electrical properties.

In conclusion, transmission line impedance measurement using the time-domain reflectometer is a powerful technique for understanding the characteristics of a cable and detecting any faults that may be present. It provides accurate and detailed information about the impedance along the length of the cable, allowing for effective troubleshooting and maintenance. The waveform analysis of the reflected pulse allows for precise localization and characterization of any impedance changes, making it an invaluable tool for engineers and technicians working with transmission lines.

Fault Detection and Localization

Fault detection and localization is a critical aspect in the field of transmission line maintenance and troubleshooting. It involves identifying and pinpointing any abnormalities or faults that may occur in the transmission line, such as impedance mismatches or breaks.

A common technique used for fault detection and localization is time-domain reflectometry (TDR). TDR works by sending a pulse waveform along the transmission line and measuring the reflected signal. By analyzing the characteristics of this reflection, it is possible to determine the location and nature of the fault.

One of the main parameters that TDR measures is impedance. Impedance is the opposition to the flow of electrical current in a transmission line, and any changes in impedance can indicate the presence of a fault. By monitoring the impedance along the cable length, TDR can accurately detect and localize faults.

TDR achieves high accuracy in fault detection and localization by utilizing the principle of reflection. When a pulse waveform encounters a fault, such as a short circuit or an open circuit, it reflects back towards the source. By analyzing the time it takes for the reflection to return and the amplitude of the reflected signal, TDR can accurately determine the distance to the fault.

The advantage of using TDR for fault detection and localization is that it provides real-time measurements in the time domain. This allows for a quick and efficient diagnosis of faults, as TDR can detect even small impedance variations along the transmission line. This level of accuracy is especially important in complex cable-pair networks, where multiple faults may occur simultaneously.

In conclusion, fault detection and localization using time-domain reflectometry is a powerful and effective technique for identifying and pinpointing faults in transmission lines. By analyzing the impedance and reflection characteristics of the signal, TDR can provide accurate measurements and precise localization of faults, making it an invaluable tool in the maintenance and troubleshooting of transmission line networks.

Cable Length Measurement

Cable length measurement is an important aspect of time-domain reflectometry, a technique used to measure the impedance and identify faults in transmission lines. By analyzing the reflections of a signal sent through a cable, the length of the cable can be determined with high accuracy.

Time-domain reflectometry works by sending a pulse signal down the cable and measuring the reflections that occur when the signal encounters impedance changes. These reflections create a waveform that can be analyzed to calculate the cable length.

During the measurement process, a reflectometer is used to send the pulse signal and capture the reflected waveform. By analyzing the characteristic of the reflections, such as the amplitude and time delay, the cable length can be determined. The accuracy of the measurement depends on the quality of the reflectometer and the cable-pair being measured.

In addition to measuring the cable length, time-domain reflectometry can also identify faults in the transmission line. By analyzing the reflection signatures, such as amplitude variations and timing anomalies, potential faults like open circuits, short circuits, or impedance mismatches can be detected. This allows for efficient troubleshooting and maintenance of the cable system.

In conclusion, cable length measurement using time-domain reflectometry is a powerful technique that provides accurate results for determining the length of a cable and identifying potential faults. By analyzing the reflections and waveform characteristics, the impedance and length of the cable can be determined with precision. This tool is invaluable for ensuring the proper functioning and maintenance of transmission lines.

Best Practices for Time Domain Reflectometry

Time domain reflectometry (TDR) is a powerful technique used for measuring the impedance and fault characteristics of transmission line cables. To ensure accurate measurements and reliable results, it is important to follow best practices when performing TDR measurements.

1. Use a high-quality reflectometer: Invest in a reliable TDR reflectometer that provides accurate and precise measurements. The quality of the reflectometer directly affects the accuracy of the TDR measurements.

2. Understand the cable characteristics: Before starting the TDR measurement, it is essential to have a clear understanding of the cable-pair impedance, characteristic impedance, and length. This knowledge will help in interpreting the TDR waveform and identifying any faults or reflections.

3. Set the proper pulse width and amplitude: Adjust the pulse width and amplitude of the TDR signal to match the characteristics of the cable under test. Using the wrong settings may result in inaccurate measurements or difficulty in detecting faults.

4. Minimize signal reflections: Proper termination of the cable is crucial to minimize signal reflections. Use matched terminations or load the cable properly to prevent any unwanted reflections that can interfere with the TDR measurements.

5. Verify calibration and compensation: Regularly calibrate and compensate the TDR reflectometer to ensure accurate measurements. This includes checking the reference impedance and ensuring the correct velocity factor is entered.

READ MORE  Understanding the Meaning of GM: Decoding the Popular Acronym

6. Perform multiple measurements: To increase confidence in the measurements, perform multiple TDR measurements from different points along the cable. This helps in identifying and confirming the location of any faults or reflections.

7. Analyze and interpret the waveform: Carefully examine the TDR waveform and understand its characteristics. Look for any anomalies, such as reflections, impedance changes, or faults, and interpret their significance based on the known cable characteristics.

By following these best practices, time domain reflectometry can be a highly effective tool for accurately measuring transmission line impedance and identifying faults. Proper technique and attention to detail are crucial for obtaining reliable results and resolving any cable issues.

Preparing for Time Domain Reflectometry Testing

Time Domain Reflectometry (TDR) is a powerful technique used to measure the impedance characteristics of transmission lines. Before conducting TDR testing on a cable, it is important to ensure all necessary preparations are made to achieve accurate results.

Firstly, the cable should be properly connected to the TDR reflectometer. This involves connecting the cable under test to the TDR via coaxial connectors or other appropriate connections. A good quality connection is crucial for accurate measurement of cable impedance.

Next, the TDR settings should be configured appropriately for the test. This includes setting the pulse width and amplitude of the TDR waveform, as well as adjusting the measurement window to capture the desired portion of the waveform. These settings can vary depending on the specific characteristics of the cable under test and the desired accuracy of the measurement.

Before conducting the TDR test, it is also important to check for any faults or abnormalities in the cable. A visual inspection should be performed to identify any physical damage, such as cuts or bends, that could affect the impedance of the cable. Additionally, any known cable-pair reflections or other known impedance variations should be noted to compare against the TDR measurement.

Once all preparations are complete, the TDR test can be conducted. The TDR generates a high-speed electrical pulse that propagates along the cable under test. As the pulse encounters impedance variations or faults in the cable, it reflects back towards the source. The TDR measures the time it takes for the reflection to reach the TDR and uses this information to calculate the impedance characteristics of the cable.

During the TDR test, it is important to carefully analyze the reflected signals on the TDR display. Any unexpected reflections or anomalies should be noted and further investigated. The accuracy of the TDR measurement can be affected by factors such as signal attenuation, cable length, and the presence of multiple impedance variations along the cable.

In conclusion, preparing for Time Domain Reflectometry testing involves ensuring proper cable connections, configuring the TDR settings, checking for any cable faults or abnormalities, and carefully analyzing the TDR waveform. By following these steps, accurate and reliable measurements of transmission line impedance can be achieved.

Interpreting Time Domain Reflectometry Results

Time Domain Reflectometry (TDR) is a powerful technique used to measure the impedance and identify faults in transmission lines. It works by sending a pulse of electromagnetic energy down a cable and analyzing the reflections that occur when the pulse encounters impedance variations along the cable length.

One of the key parameters that TDR can measure is the length of the cable. By analyzing the time it takes for the reflection to return to the reflectometer, the length of the cable can be accurately determined. This information can be crucial in troubleshooting cable installations and identifying any discrepancies between the measured length and the expected length.

Another important information that can be extracted from TDR results is the location and nature of any faults or disruptions in the cable. Anomalies in the cable such as opens, shorts, and impedance mismatches create reflections with distinct characteristics, allowing the identification and localization of the fault. By examining the magnitude and shape of the reflection, one can determine the type and severity of the fault.

The accuracy of the TDR measurement is determined by the resolution of the instrument and the quality of the cable being measured. Higher resolution TDR instruments are capable of identifying smaller impedance variations and faults with greater precision. Furthermore, cables with well-matched impedance and low signal attenuation provide clearer and more accurate reflections.

Overall, TDR is an effective tool for analyzing the impedance characteristics of a cable-pair transmission line and identifying faults that may affect its performance. By accurately measuring cable length and pinpointing faults, TDR enables quick and efficient troubleshooting, allowing for timely repairs and maintenance.

Common Mistakes to Avoid in Time Domain Reflectometry

Time Domain Reflectometry (TDR) is a powerful technique used for measuring transmission line impedance. However, there are some common mistakes that can lead to inaccurate measurements. By avoiding these mistakes, you can ensure the accuracy and reliability of your TDR measurements.

  • Using incorrect waveform settings: It is important to set the correct waveform parameters, such as signal frequency and pulse width, to accurately measure the impedance of the transmission line. Using incorrect waveform settings can result in distorted measurements.
  • Not calibrating the reflectometer: Calibration is crucial for accurate TDR measurements. Failing to calibrate the reflectometer can introduce errors in the measurement results. It is important to follow the manufacturer’s instructions and regularly calibrate the equipment.
  • Ignoring cable faults: Time Domain Reflectometry is often used to detect and locate faults in cables. However, ignoring potential cable faults can lead to inaccurate measurements. It is important to thoroughly inspect the cable for any faults, such as breaks or impedance variations, before conducting TDR measurements.
  • Using incorrect measurement techniques: Time Domain Reflectometry requires proper measurement techniques for accurate results. For example, measuring the reflection characteristic of a cable-pair may require different techniques compared to measuring the impedance of a single cable. It is important to use the appropriate technique for your specific measurement needs.
  • Not considering cable length: The length of the cable can affect the TDR measurement results. It is important to consider the cable length and adjust the measurement parameters accordingly. Failure to do so can lead to inaccurate impedance measurements.

By avoiding these common mistakes, you can ensure the accuracy and reliability of your Time Domain Reflectometry measurements. Proper waveform settings, calibration, attention to cable faults, correct measurement techniques, and considering cable length are all essential for obtaining accurate impedance measurements using TDR.

The Future of Time Domain Reflectometry

The future of time domain reflectometry (TDR) holds great potential for the field of cable impedance measurement. TDR is a powerful technique that allows for accurate measurement of the reflection characteristics of a signal along a transmission line.

As technology continues to advance, time domain reflectometers (TDRs) are likely to become more compact, portable, and user-friendly. This will make them more accessible to a wider range of industries and individuals. Improved accuracy and faster response times will also be key goals for future TDRs, as they strive to provide even more precise measurements.

The development of advanced waveform analysis algorithms will be crucial in enhancing the capabilities of TDRs. These algorithms will enable TDRs to accurately interpret the reflected pulse waveform and extract valuable information about the impedance characteristics of a cable-pair. This will not only aid in fault diagnosis but also in the identification of potential issues that could impact the transmission of signals.

Another exciting prospect for the future of TDR is the integration of automated data analysis and reporting features. This will allow TDR users to efficiently analyze large volumes of data and generate detailed reports, making it easier to identify and resolve impedance-related issues in a timely manner.

In conclusion, the future of time domain reflectometry holds immense promise for the measurement of transmission line impedance. With advancements in technology and the continued development of sophisticated algorithms, TDRs will become even more valuable tools for accurate and efficient reflection measurement. These advancements will contribute to improved signal transmission and enhanced overall system performance.

READ MORE  Understanding the Architecture of Business Intelligence: A Comprehensive Guide

Advancements in Time Domain Reflectometry Technology

Time Domain Reflectometry (TDR) is a measurement technique that has revolutionized the field of transmission line impedance analysis. By analyzing the reflection of a time-domain signal, TDR allows for accurate characterization of cable-pair impedance and identification of faults or inconsistencies along the cable length.

Advancements in TDR technology have significantly improved the accuracy and reliability of impedance measurements. The use of high-speed sampling and advanced algorithms has enabled precise analysis of the reflection waveform, resulting in more accurate determination of transmission line characteristics.

One of the key advancements in TDR technology is the development of multi-pulse reflectometers. These devices emit multiple pulses of different amplitudes and durations, allowing for a more detailed analysis of the cable’s impedance profile. By analyzing the reflections from multiple pulses, TDR can provide a comprehensive assessment of the cable’s impedance characteristics, including impedance mismatches, impedance transitions, and impedance faults.

Another major advancement in TDR technology is the integration of high-frequency components into the reflectometer design. This enables TDR to accurately measure impedance characteristics of high-speed transmission lines, such as those used in data communication networks. With the ability to capture and analyze fast-rise-time signals, TDR can accurately assess the impedance profile of high-speed cables, ensuring optimal signal transmission.

In conclusion, advancements in TDR technology have greatly enhanced the capabilities of time-domain reflectometers in accurately measuring transmission line impedance. The use of multi-pulse techniques and high-frequency components has improved the accuracy and resolution of impedance measurements, allowing for precise identification of faults and inconsistencies in cable-pair impedance. With these advancements, TDR has become a powerful tool for optimizing the performance of transmission lines and ensuring reliable signal transmission.

Potential Applications in Various Industries

The time-domain reflectometry (TDR) technique has a wide range of potential applications across various industries. Its ability to measure the impedance and detect faults in transmission lines makes it a valuable tool in the field of telecommunications and networking.

In the telecommunications industry, TDR can be used to analyze the performance of cable-pair connections. It allows technicians to identify the location and nature of faults, such as breaks or short circuits, in the cables. The accurate measurement of reflection characteristics helps in troubleshooting and maintaining the integrity of the network signal.

Moreover, the application of TDR extends to the aerospace industry. It can be used to test the integrity of cables and wiring systems in aircraft. By accurately measuring the time it takes for a pulse to travel through a cable, TDR can detect any abnormalities or faults. This ensures the safety and reliability of critical systems in aerospace vehicles.

The energy industry can also benefit from TDR. It can be employed to measure the impedance of power transmission cables. By analyzing the reflections produced by the cables, TDR helps in determining the characteristics of the cable, such as length and impedance. This information allows for more accurate measurements and monitoring of power transmission efficiency.

Furthermore, TDR finds applications in the automotive industry. It can be used to test the quality of cables and wiring harnesses in vehicles. By analyzing the reflections of a signal sent through the cables, TDR can detect any faults or anomalies that may affect the performance of various systems in the vehicle. This contributes to the overall reliability and safety of automotive electrical systems.

In conclusion, the time-domain reflectometry technique offers numerous potential applications in various industries. Its ability to accurately measure the impedance and detect faults in transmission lines makes it a valuable tool in telecommunications, aerospace, energy, and automotive sectors. With its high accuracy and reliability, TDR contributes to the overall efficiency and reliability of various systems and networks.

Challenges and Opportunities for Time Domain Reflectometry

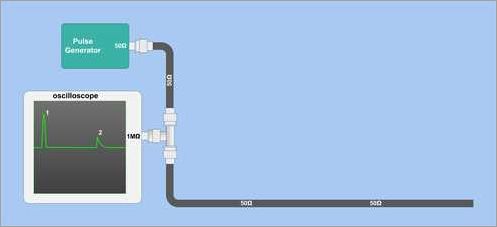

Challenges and Opportunities for Time Domain Reflectometry

Time Domain Reflectometry (TDR) is a powerful technique used for measuring transmission line impedance. It involves sending a pulse signal down a cable and analyzing the reflections that occur at various points along its length. This allows for the determination of cable characteristics, such as length and impedance, as well as the identification of faults or discontinuities in the cable.

One of the main challenges in TDR is achieving accuracy in the measurement of reflection and impedance. The accuracy of the measurements depends on the quality of the pulse signal and the ability of the reflectometer to accurately analyze the reflected signal. Any distortions or noise in the signal can affect the measurement accuracy and make it difficult to detect small faults or variations in the cable impedance.

Another challenge in TDR is dealing with cable-pair reflections. In cases where multiple cable pairs are present in close proximity, the reflections from each pair can interfere with one another, making it difficult to accurately measure the impedance of each individual cable. This interference can be mitigated through careful calibration and signal processing techniques, but it adds complexity to the measurement process.

Despite these challenges, TDR also presents opportunities for improving transmission line measurement. The ability to analyze the time-domain waveform allows for a more comprehensive understanding of the cable characteristics and the nature of any faults or discontinuities. This can help in the troubleshooting and maintenance of transmission lines, as well as the optimization of the cable design and installation process.

In conclusion, Time Domain Reflectometry offers both challenges and opportunities for measuring transmission line impedance. While accuracy and interference are challenges that need to be overcome, the technique provides a powerful tool for analyzing cable characteristics and identifying faults. With continued advancements in signal processing and calibration techniques, TDR has the potential to further enhance the accuracy and reliability of transmission line measurements.

FAQ about topic “Understanding Time Domain Reflectometry: A Powerful Tool for Measuring Transmission Line Impedance”

What is Time Domain Reflectometry (TDR) and how does it work?

Time Domain Reflectometry (TDR) is a powerful tool used for measuring transmission line impedance. It works by sending a voltage or current pulse through the transmission line and analyzing the reflected waveform. The time it takes for the pulse to travel down the line and the amplitude of the reflected waveform are used to determine the impedance of the line.

What are the advantages of using TDR for impedance measurements?

TDR offers several advantages for impedance measurements. Firstly, it provides a non-destructive and non-intrusive way to measure the impedance of a transmission line. Additionally, TDR can be used to locate faults or discontinuities in the line, making it a valuable tool for troubleshooting and maintenance. TDR is also capable of providing accurate measurements over a wide frequency range, allowing for comprehensive impedance analysis.

Can TDR be used for measuring impedance in different types of transmission lines?

Yes, TDR can be used to measure impedance in a wide range of transmission lines, including coaxial cables, twisted pair cables, and waveguides. The method of measurement may vary slightly depending on the type of line, but the underlying principles of TDR remain the same.

What factors can affect the accuracy of impedance measurements using TDR?

There are several factors that can affect the accuracy of impedance measurements using TDR. One important factor is the quality and resolution of the TDR instrument itself. Higher quality instruments with greater resolution will generally provide more accurate measurements. The length and condition of the transmission line can also impact accuracy, as well as the presence of any reflections, impedance variations, or discontinuities along the line. Finally, any external interference or noise can introduce errors into the measurement process.

Are there any limitations to using TDR for impedance measurements?

While TDR is a powerful tool for impedance measurements, it does have some limitations. One limitation is that TDR cannot accurately measure the impedance of a line that is shorter than the minimum pulse width of the instrument. Additionally, TDR may not be suitable for measuring impedance in lines with extremely high frequencies or in situations where the line impedance changes rapidly. Finally, TDR measurements can be affected by the presence of multiple reflections, which can complicate the analysis process.

Leave a Comment
