Understanding Plenum Cable: A Key Component in Networking Infrastructure

When it comes to networking in commercial buildings, ensuring safety is of utmost importance. This includes considering the type of cabling used for data transmission. One specific type of cable that is commonly used in such spaces is plenum cable.

Plenum cable is designed to be used in plenum spaces, which are areas in a building that are used for air circulation or air handling systems. These spaces include heating, ventilation, and air conditioning (HVAC) ducts as well as the spaces above drop ceilings and below raised floors. Due to the potential risks associated with fire and smoke, plenum cable is specifically designed to meet certain fire safety standards.

What sets plenum cable apart from other types of cabling is its fire-resistant insulation material. Plenum cable is typically insulated with a flame-retardant material that is designed to minimize the spread of fire. In the event of a fire, the insulation on plenum cable will not release large amounts of toxic smoke or harmful gases, making it safer than other types of cable.

Furthermore, plenum cable has specific installation requirements to ensure that it does not contribute to the spread of fire. Installers must ensure that the cable is installed in airtight pathways and that any penetrations or openings are properly sealed. This helps to prevent the flame and smoke from spreading to other areas of the building.

In summary, plenum cable is a type of cabling that is used in plenum spaces in commercial buildings. It is designed to meet specific fire safety standards and has fire-resistant insulation material to minimize the spread of fire. By following proper installation and ventilation requirements, plenum cable can contribute to a safer networking environment in commercial buildings.

What is Plenum Cable?

Plenum cable is a type of cabling that is designed for use in plenum spaces of buildings. Plenum spaces are areas in a building that are used for air circulation or air conditioning, such as the spaces above a suspended ceiling or below a raised floor. Plenum cables are specifically constructed to meet certain standards and requirements for safety and fire prevention in these spaces.

The keyword in plenum cable is “plenum” itself, which refers to the airspace in a building that is used for the circulation of air. Plenum cables are required to have specific fire-resistant materials and insulation to ensure the safety of the building in case of a fire. The insulation on a plenum cable must be made of low smoke materials and must be airtight to prevent the spread of fire and smoke through the plenum space.

One of the risks associated with using non-plenum cabling in plenum spaces is the potential for fire and smoke to spread rapidly through the ventilation system. Plenum cables are specifically designed to prevent this from happening by using materials and insulation that are resistant to fire and smoke. This helps to minimize the risk of fire spreading throughout a building and endangering the lives of occupants.

Plenum cables must also meet certain standards set by organizations like the National Fire Protection Association (NFPA) and the National Electrical Code (NEC). These standards dictate the specific requirements for construction, installation, and use of plenum cable in plenum spaces and help to ensure the safety of the building and its occupants.

In summary, plenum cable is a type of cabling that is used in plenum spaces of buildings and is designed to meet specific standards and requirements for safety and fire prevention. It uses fire-resistant materials and insulation to prevent the spread of fire and smoke through the ventilation system. By using plenum cables, building owners can ensure the safety of their occupants and comply with the necessary regulations and standards for plenum spaces.

Definition of Plenum Cable

Plenum cable, also known as LSI (Low Smoke Intensity) cable, is a type of cable that is specifically designed for use in plenum spaces in buildings. Plenum spaces are areas in a building that are used for air circulation or as part of an air handling system. These spaces often contain a cluster of cables for data and telecommunications purposes.

The key requirement for plenum cable is that it meets certain safety standards in the event of a fire. Plenum cables are required to have low flame spread and low smoke emission, which helps to prevent the spread of fire and reduce the risks to people in the building. This is achieved by using flame-resistant materials for the insulation and jacketing of the cable.

Plenum cable is also required to be airtight, meaning that it does not allow air or other gases to pass through it. This helps to prevent the spread of smoke and fire in the event of a fire in the plenum space. Additionally, plenum cable must meet specific electrical and physical performance requirements to ensure reliable and efficient data transmission.

When installing plenum cable, it is important to consider the ventilation requirements of the plenum space. Proper ventilation helps to dissipate heat and reduce the risk of overheating. It is also important to ensure that the cable is installed in a manner that does not impede the flow of air in the plenum space.

In summary, plenum cable is a specialized type of cable that is designed for use in plenum spaces in buildings. Its primary purpose is to provide safe and efficient cabling for data and telecommunications systems while minimizing the risks of fire and smoke in these spaces.

Materials Used

Plenum cables are specifically designed for use in plenum spaces, which are areas in a building that provide ventilation for air circulation. These spaces can include the area above a dropped ceiling or below a raised floor. Due to the potential risks associated with fire in these environments, plenum cables are required to meet certain standards for safety.

One key material used in plenum cables is the insulation. Plenum cables often have a special type of insulation that is fire-retardant and produces minimum smoke or fumes when exposed to flame. This is important in order to prevent the spread of fire and to ensure the safety of people in the building.

Another important material used in plenum cables is the cable itself. Plenum cables are typically made with low smoke insulation (LSI) materials, which further enhance their fire safety. These cables are also designed to be flame-resistant and self-extinguishing, meaning they will stop burning once the flame source is removed.

In addition to the insulation and the cable, plenum cables may also include other materials to improve their safety and performance. For example, some plenum cables have a cluster of insulated conductors, which allows for better signal transmission and reduces the risk of interference. Other plenum cables may have a protective jacket that provides additional insulation and protection.

Overall, the materials used in plenum cables are carefully chosen to meet the specific requirements of plenum spaces and to ensure their safety in case of fire. By using fire-retardant insulation, flame-resistant cables, and other safety features, plenum cables help prevent the spread of fire and protect people from potential hazards in buildings.

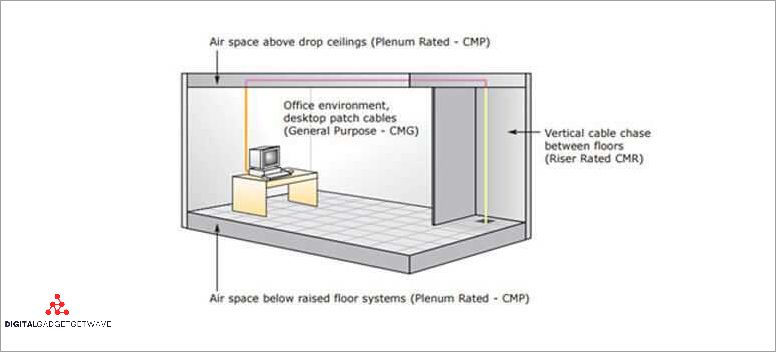

How Does Plenum Cable Work in Networking?

Plenum cable is a type of cabling that is specifically designed for use in plenum spaces within buildings. Plenum spaces are areas used for air circulation, such as the space between a dropped ceiling and the floor above it. Plenum cable is made with materials that are airtight and have low-smoke and low-toxicity properties, making them safe to use in these spaces.

The keyword in plenum cable is “plenum.” This refers to the specific type of space where the cable is used. Plenum cable is designed to withstand the risks associated with plenum spaces, such as the potential for the spread of fire or toxic fumes in the event of a fire.

Plenum cable meets specific safety standards, such as the National Fire Protection Association (NFPA) 90A and 262 standards, which address the fire and smoke requirements for plenum spaces. This ensures that the cable will not contribute to the spread of fire and will emit minimal smoke in the event of a fire.

When it comes to installation, plenum cable must be properly handled and installed to maintain its safety features. This includes using the appropriate connectors and termination methods, as well as following the recommended installation guidelines provided by the cable manufacturer.

In a networking environment, plenum cable is commonly used for running data and voice connections. It can be used to connect devices such as computers, servers, routers, and switches. The cable provides the necessary insulation and electrical conductivity for reliable network connections.

One important aspect of plenum cable is its insulation materials. These materials are designed to be flame retardant, which means they will not support the spread of fire. This is crucial in preventing the potential for a fire to spread through the plenum spaces and put the building and its occupants at risk.

Plenum cable also takes into account the ventilation requirements of the plenum spaces. It is designed to maintain the airflow and ventilation necessary for proper air circulation. This helps prevent the accumulation of heat and smoke, further reducing the risks associated with fire.

In networking installations, plenum cable can be used to create a cluster of cables that connect various devices together. This cluster of cables can be organized and labeled for easy identification and management.

In conclusion, plenum cable plays a vital role in networking by providing safe and reliable cabling in plenum spaces. Its airtight and flame-retardant properties ensure the safety of the building and its occupants, while also maintaining the necessary connectivity for networking devices.

Importance of Plenum Cable in Networking

Plenum cable plays a crucial role in networking as it is specifically designed to meet the safety standards and requirements set for cabling in plenum spaces. Plenum spaces, such as dropped ceilings and raised floors, are areas in a building that are designated for air circulation and ventilation.

The keyword here is ventilation. Plenum cable is designed with materials that have low smoke and flame capabilities, which minimizes the risks of fire in these spaces. In case of a fire, plenum cable will emit low levels of smoke and toxic fumes, reducing the potential harm to people in the building.

Another important aspect of plenum cable is its insulation properties. Plenum cable is usually insulated with materials that have low smoke and flame characteristics. This ensures that in the event of a fire, the cable insulation will not contribute to the spread of flames or produce excessive smoke.

Furthermore, plenum cable is built with an airtight jacket that prevents the spread of air and flames within the building. This is essential in plenum spaces, as it helps contain any potential fire and prevents it from spreading to other areas of the building.

It is worth noting that plenum cable is manufactured following specific standards set by organizations like the National Fire Protection Association (NFPA) and the Underwriters Laboratories (UL). These standards ensure that plenum cable meets the necessary safety requirements and can be safely installed in plenum spaces.

In summary, plenum cable is of paramount importance in networking as it provides a safe and reliable cabling solution for plenum spaces. Its low smoke and flame characteristics, along with an airtight jacket, help minimize the risks of fire and protect the building and its occupants in the event of a fire.

Characteristics of Plenum Cable

Plenum cable is a type of cable that is specifically designed for use in plenum spaces. Plenum spaces are areas in the building that are used for air circulation or air handling systems. Plenum cable is made with airtight insulation materials that help prevent the spread of fire and smoke in case of a fire outbreak. This makes it suitable for installation in buildings that have strict fire safety requirements.

One of the important characteristics of plenum cable is its flame resistance. Plenum cable is designed to meet stringent flame and fire safety standards, such as the Low Smoke Index (LSI) rating. This means that the cable does not release toxic fumes or smoke when it is exposed to fire, reducing the risks of harm to people and damage to equipment.

Another characteristic of plenum cable is its ability to maintain its integrity in high-temperature environments. Plenum spaces often have higher temperatures due to the circulation of air and heating systems. Plenum cable is designed to withstand these high temperatures without melting or degrading its performance. This ensures that the cable will continue to function properly even in demanding conditions.

Plenum cable also has good insulation properties, which means it can effectively protect the signal or power transmission within the cable. This insulation helps minimize interference and signal degradation, allowing for reliable and high-quality data or power transmission. Additionally, plenum cable is often designed with low capacitance and impedance to further enhance its performance.

In terms of installation, plenum cable requires proper ventilation to maintain its performance and safety. Plenum spaces are often equipped with adequate ventilation systems to ensure proper air circulation. This helps prevent the cable from overheating and ensures that it can function optimally. Furthermore, plenum cable is typically installed using appropriate connectors and supports to ensure proper cable management and prevent any damage or strain on the cable.

In conclusion, plenum cable is specifically designed for use in plenum spaces, meeting the strict safety requirements of buildings. Its characteristics, such as flame resistance, temperature tolerance, and insulation properties, make it an ideal choice for data or power cabling in environments that prioritize safety and reliable performance.

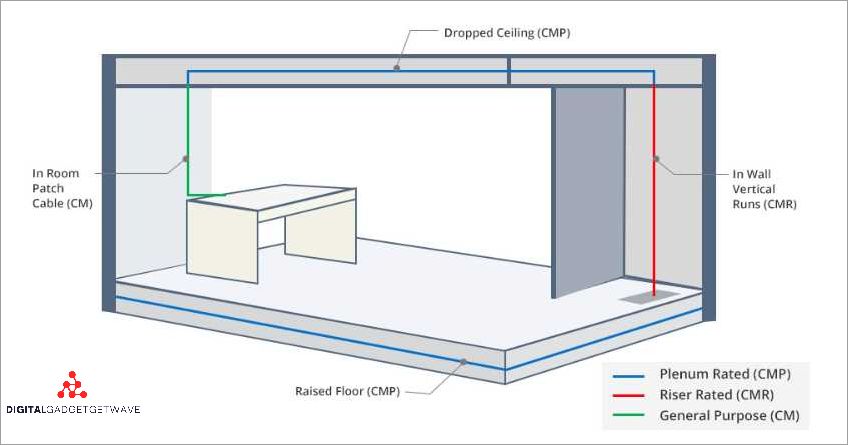

Applications of Plenum Cable in Networking

Plenum cable is a type of cabling that is specifically designed for use in plenum spaces within a building. Plenum spaces are areas within a building that are used for air circulation, ventilation, and the running of various building systems, such as heating and cooling. These spaces are typically found above suspended ceilings or beneath raised floors. Due to their design, plenum spaces pose a higher risk of fire, making it essential to use plenum-rated cables that meet specific safety requirements.

The primary application of plenum cable in networking is to provide reliable and safe connectivity between network devices. Plenum cables are used to connect various network components, such as routers, switches, servers, and workstations, in both small and large-scale networking environments. By using plenum-rated cables, network installers ensure that the cabling infrastructure meets the necessary fire safety standards, reducing the risks associated with potential fires in plenum spaces.

Plenum cables are also commonly used in Data Centers, where they play a crucial role in maintaining the overall safety and efficiency of the facility. Data centers house a large cluster of network equipment and servers, generating a significant amount of heat. In such environments, plenum-rated cables are employed to ensure proper air circulation and ventilation, as they are constructed with insulation materials that are flame-retardant and low-smoke producing. This reduces the risk of fires and aids in the efficient cooling of the equipment, maintaining optimal performance.

Another key application of plenum cable in networking is in Local Area Networks (LANs) implementation. Plenum-rated cables are highly recommended for LAN installations as they provide a higher level of fire safety. In office buildings or educational institutions, where multiple networks exist within a single space, using plenum cables helps to ensure compliance with the necessary safety regulations and standards.

In summary, plenum cable finds extensive applications in networking, particularly in situations where cabling needs to be installed in plenum spaces. By using plenum-rated cables, network installers can ensure the safety and compliance of the cabling infrastructure with fire safety requirements. Whether it is in Data Centers, LANs, or other networking environments, plenum cables play a critical role in maintaining a secure and efficient network infrastructure.

Benefits of Using Plenum Cable in Networking

Plenum cable is a type of cable that is specifically designed and manufactured to be used in plenum spaces. These spaces are areas of a building that are used for heating, ventilation, and air conditioning systems. The main benefit of using plenum cable in networking is its insulation properties which make it flame-resistant. This is important for the safety of the building and its occupants, as it reduces the risks of fire spreading through the cable.

Plenum cable is made out of materials that are designed to meet specific standards and requirements. It is made with airtight insulation, which prevents the spread of flames and smoke in case of a fire. In addition to this, plenum cable is also designed to resist the spread of toxic fumes, ensuring the safety of the building’s occupants.

Another benefit of using plenum cable in networking is its ability to provide better ventilation for the heating, ventilation, and air conditioning systems in the building. The cable allows for better airflow, which improves the overall performance of the HVAC system. This can result in energy savings and improved indoor air quality.

Furthermore, the installation of plenum cable is typically easier and more flexible compared to other types of cabling. It can be easily routed through plenum spaces and does not require additional protective measures like conduits. This makes the installation process more efficient and cost-effective.

In summary, the use of plenum cable in networking offers several benefits, including enhanced safety due to its flame resistance and airtight insulation. It also provides better ventilation for HVAC systems, resulting in improved energy efficiency and indoor air quality. The ease of installation is an additional advantage, making plenum cable a preferred choice for networking in plenum spaces.

Fire Safety

When it comes to networking, fire safety is a critical consideration. Plenum cable is designed with airtight insulation that prevents the spread of flame and smoke during a fire. This is particularly important in plenum spaces, which are areas within a building’s ventilation system that facilitate airflow. These spaces can pose a higher risk during a fire due to the potential for rapid flame spread.

Plenum cable is specifically manufactured to meet fire safety standards and building code requirements. The keyword here is “plenum,” which refers to the type of space it is designed to be used in. A plenum cable is made with special insulation materials that have low smoke and flame-retardant properties. This ensures that in the event of a fire, the cable will not contribute to the spread of flames or generate excessive smoke.

Fire safety in cabling installation can be even more critical when installed in a large building or cluster of buildings. The overall safety and protection of the building and its occupants are top priorities, and plenum cables play a crucial role in achieving that. Plenum cables help prevent the rapid spread of fire through the ventilation system, potentially giving occupants more time to evacuate and minimizing damage to the building.

In addition to plenum cables, there are also other fire safety measures, such as fire-rated walls and floors, that need to be considered in the overall design of a building’s networking infrastructure. Compliance with fire safety standards, such as those set by the National Fire Protection Association (NFPA) and local authorities, is essential in ensuring the safety of both the cabling infrastructure and the building as a whole.

Speed and Performance

When it comes to networking, speed and performance are crucial factors for any network installation. Plenum cable is designed to meet the high-speed data transmission requirements of modern networks. Its construction and materials contribute to its ability to support high data transfer rates, enabling faster and more efficient communication between network devices.

One of the key features of plenum cable that helps improve speed and performance is its insulation. Plenum cable is typically insulated with low-smoke polyvinyl chloride (LSZH) or fluorinated ethylene polymer (FEP) materials. These materials not only provide excellent electrical insulation but also have low signal loss properties, ensuring minimal interference and signal degradation during data transmission.

In addition, plenum cable is designed with air spaces or dielectric materials between the conductors. These air spaces help reduce the capacitive and inductive effects, enabling faster data transmission rates. By limiting the interference caused by the electromagnetic signals from adjacent conductors, plenum cable ensures that data can be transmitted at high speeds without any significant degradation in performance.

Another important aspect of plenum cable that improves speed and performance is its airtight plenum jacket. The plenum jacket is specifically designed to meet the fire safety standards of plenum spaces in commercial buildings. By providing an airtight barrier, the plenum jacket prevents the spread of fire and toxic fumes in case of a fire. This not only enhances the safety of the building but also ensures uninterrupted network connectivity in critical situations.

Moreover, plenum cable is often installed in well-ventilated areas or plenum spaces, which further contributes to its speed and performance capabilities. Plenum spaces are designed to facilitate the circulation of air, allowing for better heat dissipation. This helps prevent cable overheating and degradation of performance due to excessive heat. By maintaining optimal operating temperatures, plenum cabling ensures consistent and reliable network performance.

In summary, plenum cable offers excellent speed and performance characteristics due to its insulation, air spaces, airtight plenum jacket, and installation in well-ventilated areas. The materials used in its construction and its adherence to fire safety standards minimize the risks of signal loss, interference, and cable damage. Whether used in commercial buildings, data centers, or other networking environments, plenum cable provides efficient and reliable data transmission, supporting the needs of modern networks.

Compatibility

In networking, plenum cable is specially designed for use in plenum spaces of a building. Plenum spaces are areas used for air circulation and ventilation, such as ducts, shafts, and other open spaces. They are a crucial component of a building’s HVAC system.

Plenum cables are made with special materials and insulation that are rated to meet the fire safety requirements and standards of these spaces. The main keyword here is “plenum”, which refers to the type of space and the specific standards and safety measures that need to be followed for cabling in these areas.

The use of plenum cables in plenum spaces helps to reduce the risks of fire hazards and provides an added level of safety. The materials used in plenum cables have low smoke and flame characteristics, which means that they are less likely to cause a fire and produce harmful fumes in case of an incident.

When it comes to compatibility, plenum cables are not suitable for all types of installations. They are specifically designed for use in plenum spaces and should not be used in other areas of a building where plenum requirements are not necessary. It is important to ensure that the right cables are used in each part of the building to comply with safety standards and minimize potential risks.

In addition to their compatibility with plenum spaces, plenum cables are also compatible with other networking equipment and systems. They can be used with various connectors, switches, routers, and other devices commonly used in network installations. This makes them a versatile and reliable choice for networking projects.

To summarize, plenum cables are designed to meet the specific requirements and safety standards of plenum spaces in buildings. They provide a safe and reliable solution for cabling in these areas, reducing the risks of fire hazards and ensuring proper ventilation. However, it is important to use plenum cables only in plenum spaces and follow the necessary standards and guidelines for a safe installation.

Considerations When Using Plenum Cable in Networking

When it comes to networking in a building or a cluster of buildings, one important consideration is the use of plenum cable. Plenum cables are designed specifically for use in the plenum spaces of buildings, which are the areas that facilitate air circulation for heating, ventilation, and air conditioning systems.

The plenum spaces in buildings often house important networking equipment and cabling, making it crucial to choose the right type of cable for installation. Plenum cables are specifically designed to have low smoke and low flame spread properties in order to meet safety standards and requirements. This is especially important in the event of a fire, as plenum cables help to reduce the spread of flames and limit smoke production.

When installing plenum cable, it is important to ensure that it is fully airtight and meets the specifications for plenum cable insulation. Using the correct materials and following proper installation techniques is essential for maintaining the safety of the building and preventing potential risks. Plenum cables must also be labeled and marked appropriately to indicate their fire safety characteristics and compliance with industry standards.

Another important consideration when using plenum cable in networking is the compatibility with other devices and systems in use. It is important to ensure that the plenum cable is compatible with the networking equipment being used and that it meets the necessary performance requirements for data transmission. Any mismatches in compatibility can lead to suboptimal network performance.

In summary, when working with plenum cable in networking, it is important to consider the specific requirements and safety standards for plenum spaces. Choosing the right plenum cable, ensuring proper installation techniques, and maintaining compatibility with other networking equipment are all essential for creating a safe and efficient network environment.

Cost

The cost of plenum cable is generally higher than that of non-plenum cable due to the additional safety features and materials required for plenum spaces. Plenum cables are designed to be installed in areas where there is a higher risk of fire, such as the plenum spaces in a building. These spaces provide ventilation for heating, cooling, and air conditioning systems, but they also serve as a potential pathway for fire and smoke to spread throughout the building. Therefore, the use of plenum-rated cables is necessary to ensure the overall safety of the building.

The insulation of plenum cables is made from low-smoke materials that limit the amount of smoke emitted in the event of a fire. This helps to prevent the spread of toxic fumes and increases the chances of a safe evacuation. In addition, plenum cables have a flame-retardant outer jacket that helps to minimize flame spread. The use of these materials and the adherence to strict safety standards increases the overall cost of plenum cables.

Furthermore, the installation of plenum cables requires specialized knowledge and expertise. The proper installation of plenum cables involves careful consideration of ventilation and airflow to ensure that the plenum space remains airtight. This ensures that in the event of a fire, the smoke and flames are contained within the plenum space and do not spread to other areas of the building. The requirement for this level of expertise and attention to detail in the cabling installation process can also contribute to the higher cost of plenum cables.

In summary, the cost of plenum cable is higher due to the additional safety features, materials, and installation requirements. However, the increased cost is justified by the enhanced safety and reduced risks associated with the use of plenum-rated cables in plenum spaces.

Code and Standards Compliance

When it comes to plenum cables, code and standards compliance is of utmost importance. Plenum cables are designed to be installed in spaces with ventilation systems, such as the open spaces above drop ceilings or under raised floors. These spaces, known as plenum spaces, are crucial for air circulation in a building’s HVAC system.

To ensure safety and minimize risks, plenum cables must meet specific requirements and comply with various codes and standards. One essential keyword related to plenum cables is “flame.” Plenum cables are required to have flame retardant properties and should not contribute to the spread of fire in case of a mishap.

The most commonly followed standards for plenum cables include the National Electrical Code (NEC) and the International Fire Code (IFC). These standards outline the specific requirements that plenum cables must meet in terms of fire resistance and smoke generation.

Plenum cables should be made of special materials and insulation that can withstand high temperatures and fire. They are often composed of low smoke insulation (LSI) materials. This feature helps to reduce the smoke and toxic gases produced in case of a fire, thus ensuring the safety of the building occupants.

During the installation of plenum cables, it is essential to follow proper procedures and guidelines to maintain compliance with code and standards. Cabling should be done in a cluster or a bundle to minimize airspaces within the plenum. This helps in preventing the accumulation of smoke and fire in case of an eventuality.

In summary, code and standards compliance is crucial when it comes to plenum cables. The materials and insulation used, along with the careful installation techniques, ensure that plenum cables meet the necessary safety requirements and do not pose a risk to the building and its occupants in the event of a fire.

Installation and Maintenance

When installing plenum cable, it is important to follow certain safety guidelines to ensure the protection of both the installer and the building. Always make sure to use appropriate safety equipment, such as gloves and goggles, when handling the cable to avoid any potential injuries. Additionally, it is crucial to observe all installation requirements and standards set forth by relevant authorities, such as the National Electrical Code (NEC) and the Local Standards and Inspections (LSI).

Before installing plenum cable, carefully assess the cabling needs of the building and determine the appropriate materials and tools required for the installation. Consider factors such as the length of the cable runs, the number of connections needed, and the specific networking requirements of the building. This will help ensure that the correct type and quantity of plenum cable is acquired for the installation.

One of the main advantages of plenum cable is its fire-resistant properties. Plenum cables are designed with special insulation materials that are less likely to catch fire and produce harmful smoke and toxic gases. However, it is important to note that plenum cables are not completely immune to fire. Therefore, it is necessary to follow the proper installation guidelines to maintain their fire safety capabilities.

Proper ventilation in plenum cable installations is essential to maintain the fire safety of the building. Plenum spaces, which are used to facilitate air circulation, should be kept clear and unobstructed. It is important to ensure that the plenum spaces are airtight and properly sealed to prevent smoke and flame from spreading in case of a fire.

Regular maintenance of plenum cable systems is necessary to ensure their proper functioning and to comply with safety standards. Inspect the cable regularly for any signs of damage, such as cuts, abrasions, or exposed wires. Any damaged cable should be replaced immediately to prevent potential hazards. Additionally, check the cable connections and terminations to make sure they are secure and properly installed.

In conclusion, the installation and maintenance of plenum cable require adherence to specific safety guidelines, careful consideration of installation requirements, and regular inspections to ensure the protection of the building and its occupants from fire hazards.
